6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
500 kg
Payment Terms :
L/C, T/T
Supply Ability :
1000 metric tons per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steel 316
Process :
Cold drawn steel wire
Type :
In strands
Surface :
Metallic bright
Shape :
Round
Length :
On request
Feature :
Corrosion resisitant, wear resisitant
Price :
Negotiable
Description

6x36 high breaking load AISI316 stainless steel wire rope for marine industry

VANFORGE supply a large range of marine grade wire ropes that are suitable for all marine industry applications.

6x36

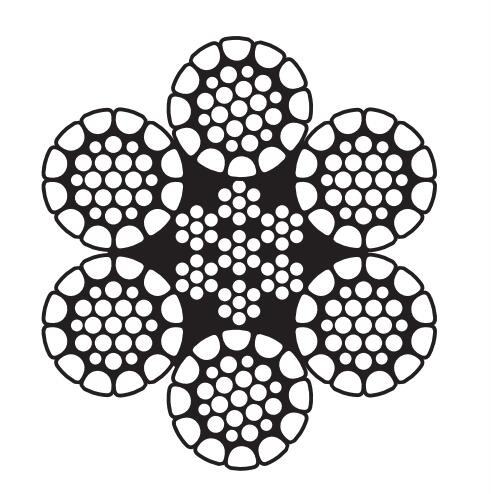

6x36 is the most flexible of our stainless steel wire ropes. Available in much larger diameters, 6x36 stainless steel wire ropes are often used for larger diameter stainless steel slings as well as for general engineering applications. The wire rope has an equal lay construction (warrington seale) and achieves a superior breaking load to the 6x19 construction range. 6x36 construction has been designed to give a flexible rope with a good fatigue life. 6x36 wire rope is available with either FC (fibre core) or IWRC (independent wire rope core) and is used for a wide range of applications, including:

Applications

Marine crane rope applications

Luffing ropes

Lifeboat falls

Davit ropes

Large diameter stainless steel wire rope slings

Marine/Saltwater environment

Sewage treatment works

Breaking loads

Nominal diameter Approximate mass Minimum breaking loads – 1570 MPa
mm kg/m kN kN
8 0.280 35.80 3651
9 0.350 45.30 4620
10 0.430 55.90 5701
11 0.539 67.60 6895
12 0.619 80.50 8211
14 0.843 109.50 11169
16 1.100 143.10 14596
18 1.390 181.00 18462
20 1.720 224.00 22848
22 2.160 271.00 27642
24 2.480 322.00 32844
26 2.760 378.00 38515
28 3.370 438.00 44676
30 3.870 503.00 51306
32 4.410 572.00 58344

6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant

6x36 Flexible Stainless Steel Guy Wire , Cold Drawn Steel Wire Wear Resisitant
