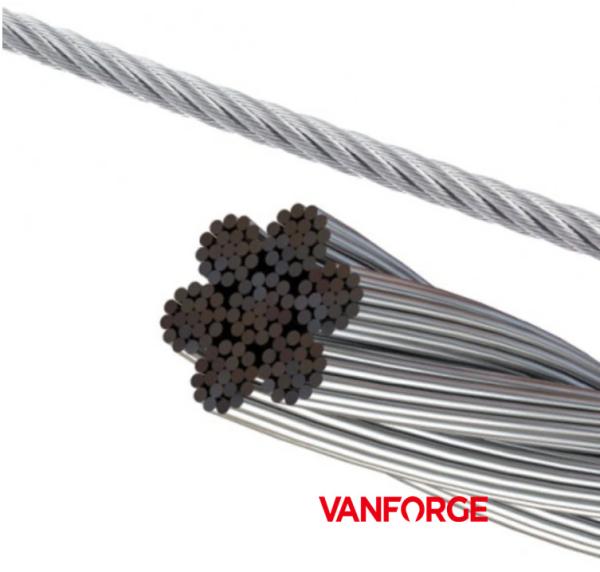

7x19 Construction AISI 316 Stainless Steel Wire Rope For Ship / Offshore Platform
7x19 Construction AISI 316 Stainless Steel Wire Rope For Ship / Offshore Platform
7x19 Construction AISI 316 Stainless Steel Wire Rope For Ship / Offshore Platform
7x19 Construction AISI 316 Stainless Steel Wire Rope For Ship / Offshore Platform
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
500 kg
Payment Terms :
L/C, T/T
Supply Ability :
1000 metric tons per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steel 316
Process :
Cold drawn steel wire
Type :
In strands
Surface :
Metallic bright
Shape :
Round
Length :
On request
Price :
Negotiable
Description

7x19 construction AISI 316 marine grade stainless steel wire rope for ship and offshore platform

Use : YACHT, SHIPPING, CONSTRUCTION

Product Description : 1×19 construction stainless steel wire ropes and stainless steel cable is non-flexible and has a high resistance to corrosion. Suitable for balustrading, stainless steel cable railing, yacht rigging & decorative applications where flexibility is not important

Flexible 7×7 construction 316 marine grade stainless steel cable is suitable for tensioning, security cables, marine architectural use, stainless cable balustrading, stainless steel cable railing & decorative applications.

Highly flexible 7×19 construction 316 stainless steel wire rope is suitable for most running load applications and numerous applications such as security cables and winch cables.

7x19

Nominal rope diameter (mm) Nominal length mass (kg/100m) AISI 316 rope grade 1570 (kN) AISI 304 rope grade 1770 (kN)
2 1.60 2.27 2.56
2.5 2.40 3.55 4.00
3 3.40 5.12 5.77
4 6.10 9.09 10.30
5 9.50 14.20 16.00
6 13.80 20.50 23.10
7 18.70 27.80 31.40
8 24.30 36.40 41.00
10 38.10 56.80 64.10
12 54.80 81.80 92.30
14 74.60 111.40 125.60
16 97.40 145.50 164.00

Nominal rope diameter (inch) Nominal length mass (kg/100m) AISI 316 rope grade 1570 (kN) AISI 304 rope grade 1770 (kN)
1/16 0.44 427 480
5/64 1.11 579 650
3/32 1.64 819 920
1/8 2.52 1566 1760
5/32 4.26 2136 2400
3/16 6.59 3293 3700
7/32 9.84 4450 5000
1/4 12.8 56696 6400
9/32 16.4 6942 7800
5/16 25.9 8010 9000
3/8 36.1 10680 12000
