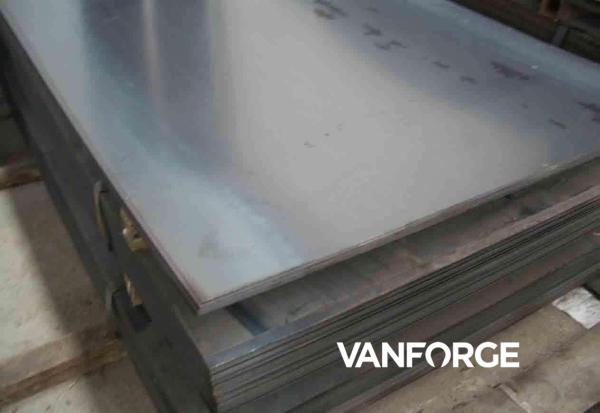

450HBW Impact Toughness Protection Bulletproof Steel Plate , Bulletproof Metal Plates
450HBW Impact Toughness Protection Bulletproof Steel Plate , Bulletproof Metal Plates
450HBW Impact Toughness Protection Bulletproof Steel Plate , Bulletproof Metal Plates
450HBW Impact Toughness Protection Bulletproof Steel Plate , Bulletproof Metal Plates
450HBW Impact Toughness Protection Bulletproof Steel Plate , Bulletproof Metal Plates
450HBW Impact Toughness Protection Bulletproof Steel Plate , Bulletproof Metal Plates
450HBW Impact Toughness Protection Bulletproof Steel Plate , Bulletproof Metal Plates
450HBW Impact Toughness Protection Bulletproof Steel Plate , Bulletproof Metal Plates
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001:2015, ABS, BV, CCS, DNV GL, NKK
Place of Origin :
China
MOQ :
5 metric tons
Payment Terms :
L/C, T/T
Supply Ability :
3000 metric tons per month
Delivery Time :
15 days
Packaging Details :
Standard seaworthy packing for export
Material :
Low alloy steel
Process :
Hot rolled
Shape :
Flat plate
Surface treatment :
Plain and smooth
Length :
Up to 12000mm
Condition :
Quenched and tempered
Price :
Negotiable
Description

450HBW Impact Toughness Protection Bulletproof Steel Plate Quenched And Tempered

Description

Combines ballistic properties with impact toughness.

450HBW ballistic steel is a medium-hard protection plate combining ballistic properties with impact toughness, at 8‑16 mm (0.315‑0.630″) thick and 400‑480 HBW.

450HBW ballistic steel is not intended for further heat treatment.

Dimension Range

450HBW ballistic steel is available as plate in thickness between 8.0 - 16.0 mm.

Mechanical Properties

Thickness

(mm)

Hardness Min - Max

(HBW)

Yield Strength Min

(min MPa)

Tensile Strength Min

(MPa)

Elongation A5 Min

(min %)
8 - 16 400 - 480 1000 1150 8

Impact Properties

Test temperature Min. impact energy test Charpy-V 10x10 mm test specimens (1)
-40 °C 20 J

(1) Impact testing transverse to rolling direction, average value of three tests. Single value min. 70% of specified average.

Mechanical Testing

Brinell hardness test according to EN ISO 6506-1 on each heat treatment individual/coil.

Hardness is measured on a milled surface 0.3-2 mm below plate surface.

Charpy impact test according to EN ISO 148, 1 test/20 ton.

Tensile test according to EN ISO 6892 on each plate and thickness <19.9 mm.

Chemical Composition (ladle analysis), %, max

C Si Mn P S Cr Ni Mo B
0.25 0.70 1.50 0.015 0.010 1.0 2.0 0.7 0.005

The steel is grain-refined.

Phosphorous and sulphur are not intentionally alloying elements.

Thickness

Heavy plate

Thickness

(mm)

Tolerance

(Min / Max)
8.0 - 14.9 - 0.0 / + 1.0
15 - 16 - 0.0 / + 1.1

Length and Width

According to VANFORGE’s dimension program.

• Tolerances conform to EN 10029

• Dimensional tolerances for plate with mill edge according to special agreement.

Shape

Tolerances according to EN 10029

Flatness

Tolerances according to EN 10029 Class N (steel type L)

Surface Properties

According to EN 10163-2 Class B Subclass 3.

Delivery Conditions

450HBW ballistic steel is delivered in quenched condition.

Fabrication and Other Recommendations

Welding, bending and machining

450HBW ballistic steel is not intended for further heat treatment. If 450HBW ballistic steel is heated above 180 °C after delivery from VANFORGE no guarantees for the properties are given.

Appropriate health and safety precautions must be taken when cutting, welding, grinding or otherwise working on the product. Grinding, especially of primer coated plates, may produce dust with high particle concentration.

Production process
