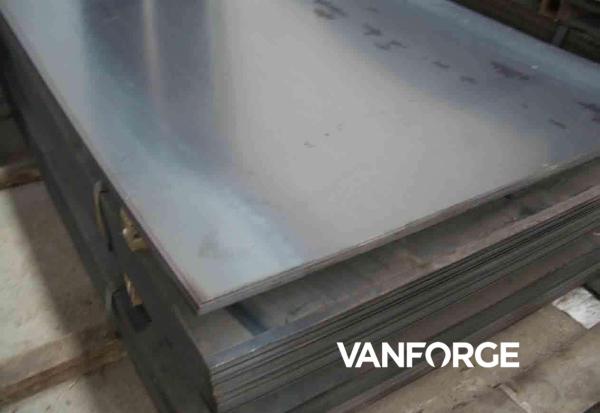

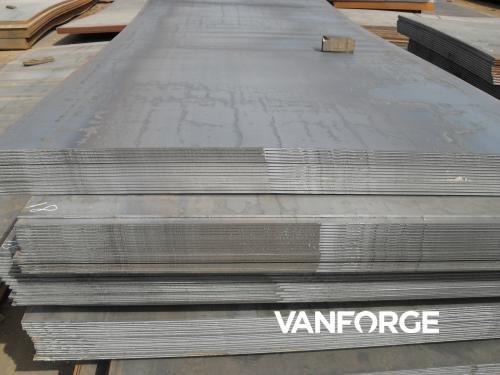

T440HBW hardened high toughness penetration and shock resistance ballistic plate for blast protection

Description

Blast protection plate.

T440HBW ballistic steel combines excellent penetration and shock resistance.

It offers vehicle designers new ways to increase protection using lighter weight designs.

Benefits of using T440HBW ballistic steel include:

• Superior workshop properties

• Optimized solutions

• Perfect hardness/toughness balance, for combined penetration and blast protection

• Expertise in ballistic protection from VANFORGE

T440HBW ballistic steel is not intended for further heat treatment.

Dimension range

T440HBW ballistic steel is available in thicknesses between 4.0 and 80.0 mm.

Mechanical Properties

(1) Average of three tests. Transverse to rolling direction. Single value min. 70 % of specified average.

(2) For plate thicknesses under 12 mm sub-size Charpy-V specimen are used. The specified minimum value is then proportional to the specimen cross-section.

Mechanical Testing

Brinell hardness test according to EN ISO 6506-1 on each heat treatment individual.

Charpy impact test according to EN ISO 148 on each heat and thicknesses from 6 mm.

Tensile test according to EN ISO 6892 on each heat and thicknesses.

Ultrasonic testing

According to EN ISO 10 160 Class E3S3.

Chemical Composition (ladle analysis), %, max

The steel is grain-refined.

Intentional alloying elements.

Thickness

Length and Width

According to VANFORGE´s dimension program.

• Tolerances conform to EN 10 029 or to SSAB´s standard after agreement.

• Dimensional tolerances for plate with mill edge according to special agreement.

Shape

Tolerances according to EN 10029.

Flatness

Tolerances according to VANFORGE´s flatness tolerances which are more restrictive than EN 10029 Class N (steel type L).

Surface Properties

According to EN 10163-2 Class B Subclass 3.

Delivery Conditions

The delivery condition is QT (Quenched and Tempered).

Fabrication and Other Recommendations

Welding, bending and machining

T440HBW ballistic steel is not intended for further heat treatment. If T440HBW steel is heated above 170 °C after delivery from VANFORGE no guarantees for the properties of the steel are given.

Nitriding or surface coating may be carried out if the temperature is below 170 °C.

Appropriate health and safety precautions must be taken when welding, cutting, grinding or otherwise working on the product. Grinding, especially of primer coated plates, may produce dust with high particle concentration.
