Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Seamless, welded
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A403 A815 ASME B16.9 stainless steel butt weld end cap

Vanforge holds a large types of stainless and duplex steel butt welding fittings according to ANSI/ASME. Our program includes seamless butt welding fittings from 1/2 in. to 12 in. and welded butt welding fittings from 1/2 in. to 24 in. The schedule range covers 5S to Schedule 160.

Materials and specifications

The Vanforge program includes ASME butt welding fittings in the following materials:

Austenitic stainless steels

Stainless steel grades ASTM 304/304L and ASTM 316/316L (dual marked and certified) acc. to ASTM A / ASME SA403, IC acc. to ASTM A262E and PMI tested.

Duplex and super-duplex stainless steels

Duplex grade UNS S31803 (EN 1.4462) and super-duplex grade UNS S32750 (EN 1.4410) acc. to ASTM A815, G48A for UNS S32750 and PMI tested.

All Vanforge's ASME butt welding fittings are acc. to ASME B16.9, annealed and quenched, bevelled ends acc. to ASME B16.25, hardness acc. to NACE MR0175.

Vanforge ASME butt welding fittings are certified acc. to EN 10204/3.1.

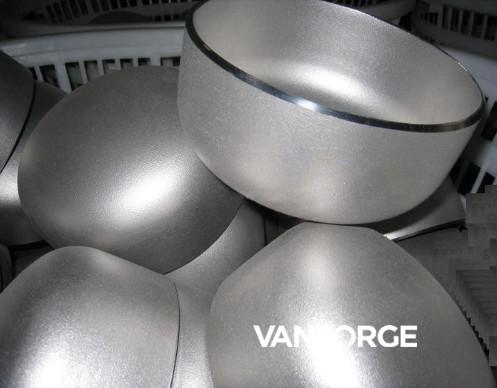

End caps, butt weld fittings

Duplex / Austenitic Stainless Steel Buttweld Caps , Butt Weld End Cap

ASTM A403 / A815 ASME B16.9

Product code example:

●: FBEC-316L-1-10S
●: FBEC-W31803-3-10S

● = made from plate

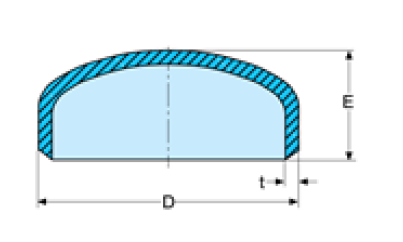

Nominalpipe size

Sch.*

Dimensions in mm

Weight

ASTM

ASTM

UNS

in.

D

t

E

kg/pce

304/304L

316/316L

S31803
1/2 10s
40s
80s		 21.3
21.3
21.3		 2.11
2.77
3.73		 25.4
25.4
25.4		 0.040
0.050
0.050		 ●
●		 ●
●
●		 ●
3/4 10s
40s
80s		 26.7
26.7
26.7		 2.11
2.87
3.91		 25.4
25.4
25.4		 0.050
0.060
0.060		 ●
●
-		 ●
●
●		 ●
●
1 10s
40s
80s		 33.4
33.4
33.4		 2.77
3.38
4.55		 38.1
38.1
38.1		 0.090
0.130
0.130		 ●
●
-		 ●
●
●		 ●
●
1¼ 10s
40s
80s		 42.2
42.2
42.2		 2.77
3.56
4.85		 38.1
38.1
38.1		 0.130
0.170
0.180		 ●
●
-		 ●
●
●
1½ 10s
40s
80s		 48.3
48.3
48.3		 2.77
3.68
5.08		 38.1
38.1
38.1		 0.140
0.230
0.240		 ●
●
-		 ●
●
●		 ●
●
2 10s
40s
80s		 60.3
60.3
60.3		 2.77
3.91
5.54		 38.1
38.1
38.1		 0.170
0.270
0.340		 ●
●
-		 ●
●
●		 ●
●
2½ 10s
40s
80s		 73.0
73.0
73.0		 3.05
5.16
7.01		 38.1
38.1
38.1		 0.250
0.450
0.510		 ●
●
-		 ●
●
●		 ●
●
3 10s
40s
80s		 88.9
88.9
88.9		 3.05
5.49
7.62		 50.8
50.8
50.8		 0.400
0.710
0.850		 ●
●
●		 ●
●
●		 ●
●
●
4 10s
40s
80s		 114.3
114.3
114.3		 3.05
6.02
8.56		 63.5
63.5
63.5		 0.650
1.220
1.610		 ●
●
●		 ●
●
●		 ●
●
5 10s
40s
80s		 141.3
141.3
141.3		 3.40
6.55
9.53		 76.2
76.2
76.2		 1.020
1.910
2.550		 ●
●
-		 ●
●
●		 ●
6 10s
40s
80s		 168.3
168.3
168.3		 3.40
7.11
10.97		 88.9
88.9
88.9		 1.360
3.230
4.540		 ●
●
-		 ●
●
●		 ●
●
8 10s
40s		 219.1
219.1		 3.76
8.18		 101.6
101.6		 2.490
5.670		 ●
●		 ●
●		 ●
●
10 10s
40s		 273.1
273.1		 4.19
9.27		 127.0
127.0		 4.900
9.210		 ●
●		 ●
●		 ●
12 10s
40s		 323.9
323.9		 4.57
9.53		 152.4
152.4		 6.530
13.060		 ●
●		 ●
●		 ●
14 10s
STD		 355.6
355.6		 4.78
9.53		 165.1
165.1		 8.160
15.900		 ●
-		 ●
●
16 10s
STD		 406.4
406.4		 4.78
9.53		 177.8
177.8		 14.510
20.000		 ●
-		 ●
●
18 10s 457.2 4.78 203.2 17.960 - ●
20 10s 508.0 5.54 228.6 27.220 - ●
24 10s 609.6 6.35 266.7 34.470 - ●

* Schedule
