ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Seamless, welded
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A403 A815 ASME B16.9 stainless steel butt weld short length stub end

Vanforge holds a large types of stainless and duplex steel butt welding fittings according to ANSI/ASME. Our program includes seamless butt welding fittings from 1/2 in. to 12 in. and welded butt welding fittings from 1/2 in. to 24 in. The schedule range covers 5S to Schedule 160.

Materials and specifications

The Vanforge program includes ASME butt welding fittings in the following materials:

Austenitic stainless steels

Stainless steel grades ASTM 304/304L and ASTM 316/316L (dual marked and certified) acc. to ASTM A / ASME SA403, IC acc. to ASTM A262E and PMI tested.

Duplex and super-duplex stainless steels

Duplex grade UNS S31803 (EN 1.4462) and super-duplex grade UNS S32750 (EN 1.4410) acc. to ASTM A815, G48A for UNS S32750 and PMI tested.

All Vanforge's ASME butt welding fittings are acc. to ASME B16.9, annealed and quenched, bevelled ends acc. to ASME B16.25, hardness acc. to NACE MR0175.

Vanforge ASME butt welding fittings are certified acc. to EN 10204/3.1.

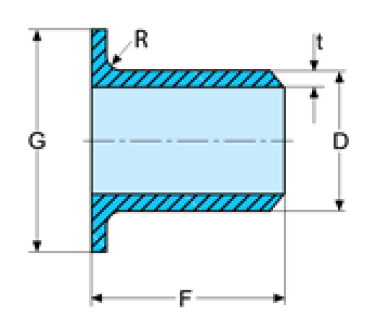

Short length stub ends, butt weld fittings

ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End

ASTM A403 / A185 ASME B16.9

Facing: 125 - 250 RMS (smooth finish)

Product code example:

●: FBSES-316L-2-1-10S
▲: FBSES-W316L-8-10S
▲: FBSES-W31803-6-10S

● = made from seamless pipe
▲ = made from welded pipe or plate

Nominalpipe size


Sch.*


Dimensions in mm

Weight

ASTM

ASTM

UNS

in.

D

t

G

F

R. max.

kg/pce

304/304L

316/316L

S31803

1/210s
40s		21.3
21.3		2.11
2.77		34.9
34.9		50.8
50.8		3.18
3.18

0.070

0.090

●

●

●

●

-
-
3/410s
40s		26.7
26.7		2.11
2.87		42.9
42.9		50.8
50.8		3.18
3.18

0.100

0.120

●

●

●

●

●

●

110s
40s		33.4
33.4		2.77
3.38		50.8
50.8		50.8
50.8		3.18
3.18

0.160

0.170

●/▲

●

●/▲

●

●

●

1 ¼10s
40s		42.2
42.2		2.77
3.56		63.5
63.5		50.8
50.8		4.76
4.76

0.220

0.250

●

●

●

●

●
-
1 ½10s
40s		48.3
48.3		2.77
3.68		73.0
73.0		50.8
50.8		6.35
6.35

0.250

0.310

●/▲

●

●/▲

●

●

●

210s
40s		60.3
60.3		2.77
3.91		92.1
92.1		63.5
63.5		7.94
7.94

0.430

0.610

●/▲

●

●/▲

●

●

●

2 ½10s
40s		73.0
73.0		3.05
5.16		104.8
104.8		63.5
63.5		7.94
7.94

0.570

0.800

●/▲

●

●/▲

●

●
-
310s
40s		88.9
88.9		3.05
5.49		127.0
127.0		63.5
63.5		9.53
9.53

0.730

1.130

●/▲

●

●/▲

●

●
-
410s
40s		114.3
114.3		3.05
6.02		157.2
157.2		76.2
76.2		11.11
11.11

1.090

1.870

●/▲

●

●/▲

●

●
-
510s
40s		141.3
141.3		3.40
6.55		185.7
185.7		76.2
76.2		11.11
11.11

1.470

2.280

●/▲

●

●/▲

●

-
-
610s
40s		168.3
168.3		3.40
7.11		215.9
215.9		88.9
88.9		12.70
12.70

2.150

3.570

●/▲

●

●/▲

●

●/▲

●

810s
40s		219.1
219.1		3.76
8.18		269.9
269.9		101.6
101.6		12.70
12.70

3.220

6.070

●/▲

●/▲

●/▲

▲

▲
-

* Schedule

Production procedures

ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End

ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End

ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End

ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End

ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End

ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
ASME B16.9 Forged Steel Pipe Fittings Butt Weld Short Length Stub End
