Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Seamless, welded
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A403 A815 ASME B16.9 stainless steel butt weld equal tee

Vanforge holds a large types of stainless and duplex steel butt welding fittings according to ANSI/ASME. Our program includes seamless butt welding fittings from 1/2 in. to 12 in. and welded butt welding fittings from 1/2 in. to 24 in. The schedule range covers 5S to Schedule 160.

Materials and specifications

The Vanforge program includes ASME butt welding fittings in the following materials:

Austenitic stainless steels

Stainless steel grades ASTM 304/304L and ASTM 316/316L (dual marked and certified) acc. to ASTM A / ASME SA403, IC acc. to ASTM A262E and PMI tested.

Duplex and super-duplex stainless steels

Duplex grade UNS S31803 (EN 1.4462) and super-duplex grade UNS S32750 (EN 1.4410) acc. to ASTM A815, G48A for UNS S32750 and PMI tested.

All Vanforge's ASME butt welding fittings are acc. to ASME B16.9, annealed and quenched, bevelled ends acc. to ASME B16.25, hardness acc. to NACE MR0175.

Vanforge ASME butt welding fittings are certified acc. to EN 10204/3.1.

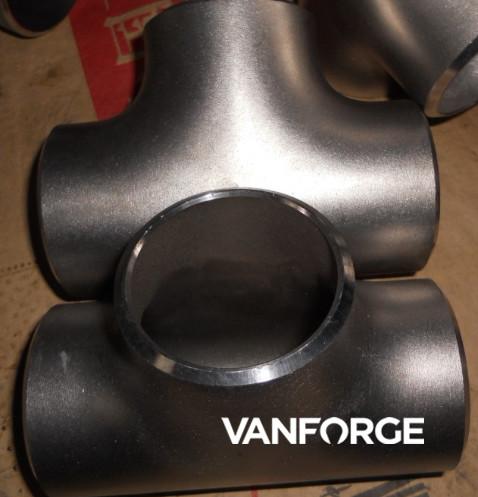

Equal tees, butt weld fittings

Stainless Steel Butt Equal Tee Pipe Schedule Range Covers 5S - Schedule 160

ASTM A403 / A815 ASME B16.9

Product code example:

●: FBT-316L-4-10S
▲: FBT-W316L-4-10S
●: FBT-32750-2-10S

● = made from seamless pipe
▲ = made from welded pipe or plate

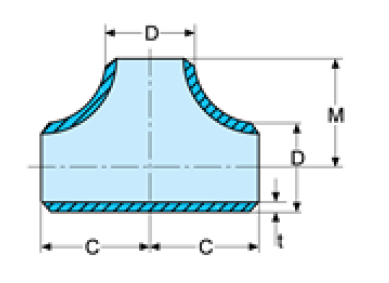

Nominalpipe size

Sch*

Dimensions in mm

Weight

ASTM

ASTM

UNS

UNS

in.

D

t

C/M

kg/pce

304/304L

316/316L

S31803

S32750

1/210s
40s
80s
160		21.3
21.3
21.3
21.3		2.11
2.77
3.73
4.78		25.4
25.4
25.4
25.4		0.065
0.085
0.140
0.150		●/▲
●/▲
●
-

●/▲

●/▲
●
●

●
●
-
-		●
-
-
-
3/410s
40s
80s
160		26.7
26.7
26.7
26.7		2.11
2.87
3.91
5.56		28.6
28.6
28.6
28.6		0.092
0.115
0.200
0.300		●/▲
●/▲
●
-		●/▲
●/▲
●
●		●
●
-
-		●
-
-
-
110s
40s
80s
160		33.4
33.4
33.4
33.4		2.77
3.38
4.55
6.35		38.1
38.1
38.1
38.1		0.200
0.245
0.390
0.470		●/▲
●/▲
●
-		●/▲
●/▲
●
●		●
●
-
-		●
●
-
-
1¼10s
40s
80s
160		42.2
42.2
42.2
42.2		2.77
3.56
4.85
6.35		47.6
47.6
47.6
47.6		0.330
0.420
0.548
0.890		●/▲
●/▲
●
-		●/▲
●/▲
●
-		●
●
-
-		●
●
-
-
1½10s
40s
80s
160		48.3
48.3
48.3
48.3		2.77
3.68
5.08
7.14		57.2
57.2
57.2
57.2		0.460
0.595
1.020
1.430		●/▲
●/▲
●
-		●/▲
●/▲
●
●		●
●
-
-		●
●
-
-
210s
40s
80s
160		60.3
60.3
60.3
60.3		2.77
3.91
5.54
8.74		63.5
63.5
63.5
63.5		0.630
0.872
1.590
3.180		●/▲
●/▲
●
-		●/▲
●/▲
●
●		●
●
-
-		●
●
-
-
2½10s
40s
160		73.0
73.0
73.0		3.05
5.16
9.52		76.2
76.2
76.2		1.100
1.700
3.630		●/▲
●/▲
-		●/▲
●/▲
●		●
●
-		-
-
-
310s
40s
80s
160		88.9
88.9
88.9
88.9		3.05
5.49
7.62
11.13		85.7
85.7
85.7
85.7		1.370
1.900
4.450
5.870		●/▲
●/▲
●
-		●/▲
●/▲
●
●		●
●
-
-		●
●
-
-
3½10s
40s		101.6
101.6		3.05
5.74		95.3
95.3		1.740
3.190		-
-		●
●/▲		-
-		-
-
410s
40s
80s
160		114.3
114.3
114.3
114.3		3.05
6.02
8.56
13.49		104.8
104.8
104.8
104.8		2.150
4.130
7.710
9.760		●/▲
●/▲
●
-		●/▲
●/▲
●
●		●
●
-
-		●
●
-
-
510s
40s
80s		141.3
141.3
141.3		3.40
6.55
9.53		123.8
123.8
123.8		3.480
6.550
11.340		●/▲
●/▲
-		●/▲
●
●		▲
-
-		-
-
-
610s
40s
80s		168.3
168.3
168.3		3.40
7.11
10.92		142.9
142.9
142.9		4.760
9.730
13.610		●/▲
●/▲
-		●/▲
●/▲
●		●/▲
-
-		●
-
-
810s
40s		219.1
219.1		3.76
8.18		177.8
177.8		8.460
18.000		●/▲
●/▲		●/▲
●/▲		▲
-		-
-
1010s
40s		273.1
273.1		4.19
9.27		215.9
215.9		14.200
30.800		●/▲
●/▲		●/▲
●/▲		▲
-		-
-
1210s
40s		323.9
323.9		4.57
9.53		254.0
254.0		21.600
44.300		▲
▲		▲
▲		▲
-		-
-
1410s
STD		355.6
355.6		4.78
9.53		279.4
279.4		48.530
79.380		▲
▲		▲
▲		-
-		-
-
1610s
STD		406.4
406.4		4.78
9.53		304.8
304.8		58.970
99.790		▲
▲		▲
▲		-
-		-
-
1810s457.24.78342.976.660▲▲--
2010s508.05.54381.0103.420▲▲--
2410s609.66.35431.8155.580▲▲--

*Schedule
