BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A182 3000LBS ASME B16.11 BS3799 forged pipe fitting stainless steel socket weld cap

Socket welding fittings according to ANSI/ASME

Vanforge holds a large type of stainless, forged, socket welding fittings in F304/304L and F316/316L (dual marked and certified). Huahon's socket welding fittings are according to ASTM A182, ASME B16.11. Socket weld unions are according to MSS SP-83.

Vanforge's ASME 3000 lbs forged, socket weld fittings are white pickled with hardness according to NACE MR0175, IC according to ASTM A262E and PMI tested.

Vanforge socket weld fittings are certified according to EN 10204/3.1.

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability

Socket weld cap

ASTM A182 3000 lbs ASME B16.11 / BS 3799

Product code example:

FSCAP-316L-1-3000

● = Available

Nominal pipe size

B

L1

L

Weight

ASTM
in. mm socket ~mm ~kg/pce 316/316L
1/4
3/8
1/2
3/4		 14.20
17.60
21.80
27.20		 9.53
9.53
9.53
12.50		 19.05
19.05
22.23
25.40		 0.06
0.07
0.14
0.16		 ●
●
●
●
1
1¼
1½
2		 33.90
42.70
48.80
61.20		 12.50
12.50
12.50
16.00		 26.99
30.16
31.75
38.10		 0.30
0.45
0.55
1.00		 ●
●
●
●

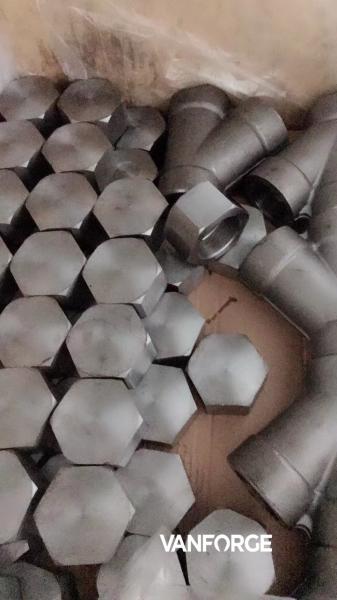

Production facilities:

BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability

BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability

BS3799 Forged SS Socket Weld Cap Anti Corrosion Excellent Polishability
