ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

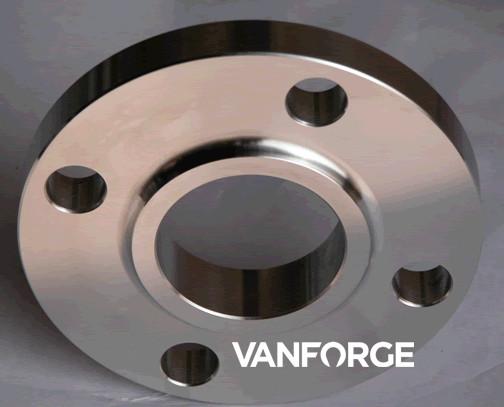

EN 1092-1 DIN 2656 ASME SA182 PN16 forged stainless steel loose flange

Stainless steel loose flanges PN 16 and 40, according to EN 1092-1 latest edition, type 02. Material EN 1.4404 (ASTM 316L), fully machined. Base material according to EN 10222-5/ASTM/ASME A/SA 182.

Vanforge's loose flanges according to EN are corrosion tested according to EN ISO 3651-2 latest edition and PMI checked. The stainless loose flanges are certified according to EN 10204/3.1.

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656

Loose flanges PN 16

EN 1092-1, type 01

Product code example:

FFL-316L-76.1-PN16

● = Standard

Pipe

OD

D

d1

b

k

Drilling template

d2

Weight

ASTM
DN mm mm mm mm Holes Thread mm kg/pce 316L
15-40

see

PN 40
50 60.3 165 65 16 125 4 M 16 18 2.52 ●
65 76.1 185 81 16 145 4 M 16 18 3.05 ●
80 88.9 200 94 18 160 8 M 16 18 3.48 ●
100 114.3 220 120 20 180 8 M 16 18 4.20 ●
125 139.7 250 145 22 210 8 M 16 18 5.21 ●
150 168.3 285 174 24 240 8 M 20 22 6.41 ●

Production facilities:

ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656

ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656

ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656

ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656

ASME SA182 PN16 Machined Forged SS Loose Type Flange EN 1092-1 DIN 2656
