Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

EN 1092-1 DIN 2656 ASME SA182 PN40 forged stainless steel loose flange

Stainless steel loose flanges PN 16 and 40, according to EN 1092-1 latest edition, type 02. Material EN 1.4404 (ASTM 316L), fully machined. Base material according to EN 10222-5/ASTM/ASME A/SA 182.

Vanforge's loose flanges according to EN are corrosion tested according to EN ISO 3651-2 latest edition and PMI checked. The stainless loose flanges are certified according to EN 10204/3.1.

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface

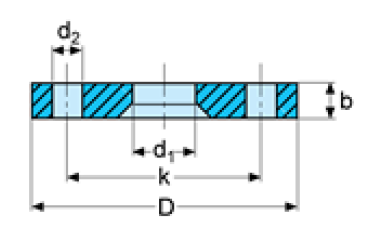

Loose flanges PN 40

EN 1092-1, type 02 (replaces DIN 2656)

Product code example:

FFL-316L-33.7-PN40

● = Standard

Pipe

O.D.

D

d1

b

k

Drilling template

d2

Weight

ASTM
DN mm mm mm mm Holes Thread mm kg/pce 316L
15 21.3 95 25 14 65 4 M 12 14 0.65 ●
20 26.9 105 31 16 75 4 M 12 14 0.91 ●
25 33.7 115 38 16 85 4 M 12 14 1.08 ●
32 42.4 140 47 18 100 4 M 16 18 1.77 ●
40 48.3 150 53 18 110 4 M 16 18 2.02 ●

Production facilities:

DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface

DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface

DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface

DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface

DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface
