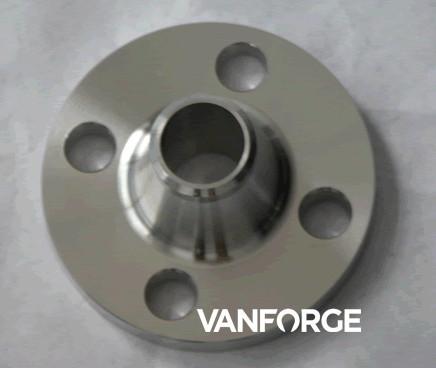

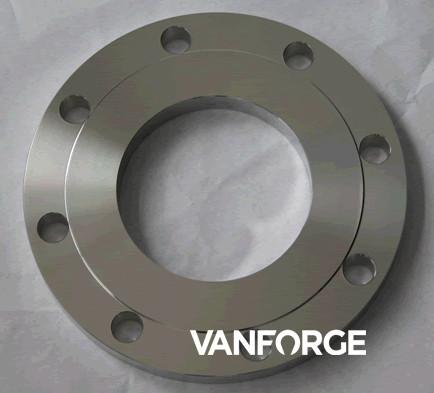

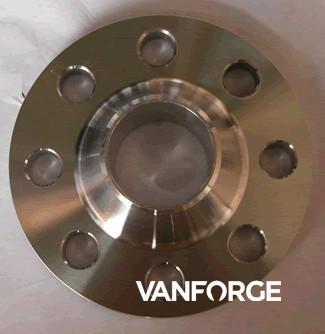

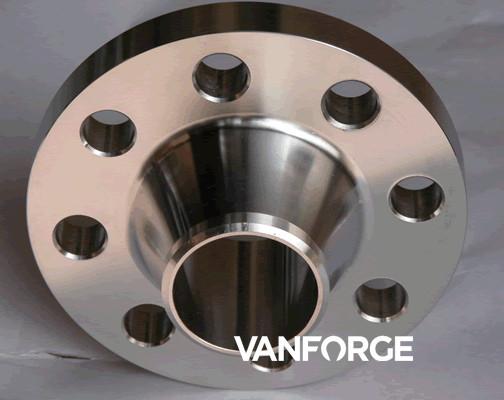

High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A182 ASME B16.5 150LBS forged stainless steel socket welding flange

Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

Standard specification for ANSI/ASME flanges from stock

Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

Stainless steel socket welding flange, 150LBS

Technical date:

High Hardness Raised Face Forged Steel Flange 150LBS For Petrochemical

ASTM A182, ASME B16.5
Sch 40S

Raised face, smooth finish (125-250 RMS / 3.2-6.3 µm)

Product code example:

FFSW-304L-2-150-40S

Pipe

Flange

Hub

Raised face

Drilling template

Weight

Standard

Nom.size

O.D.

D

J

c

P

b

h

m

g

No. ofholes

l

k

kg/pce

ASTM 304L

ASTM316L

in.

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm
1/2
3/4
1
1 ¼		 21.3
26.7
33.4
42.2		 88.9
98.6
108.0
117.3		 22.4
27.7
34.5
43.2		 15.7
20.8
26.7
35.1		 9.7
11.2
12.7
14.2		 11.2
12.7
14.2
15.7		 15.7
15.7
17.5
20.6		 30.2
38.1
49.3
58.7		 35.1
42.9
50.8
63.2		 4
4
4
4		 15.7
15.7
15.7
15.7		 60.5
69.9
79.2
88.9		 0.42
0.59
0.81
1.07		 ●
●
●
●		 ●
●
●
●
1 ½
2		 48.3
60.3		 127.0
152.4		 49.5
62.0		 40.9
52.6		 15.7
17.5		 17.5
19.1		 22.4
25.4		 65.0
77.7		 73.2
91.9		 4
4		 15.7
19.1		 98.6
120.7		 1.36
2.10		 ●
●		 ●
●
