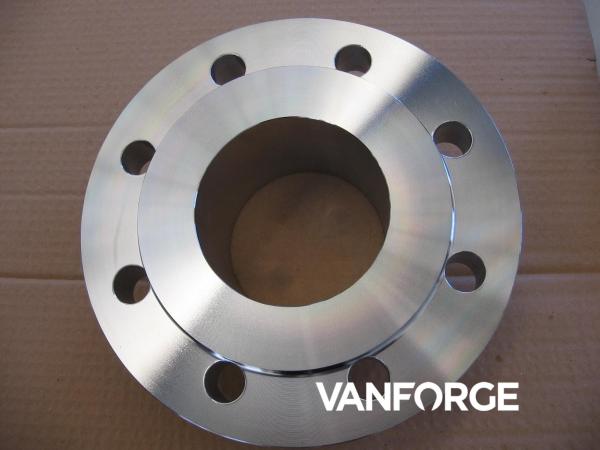

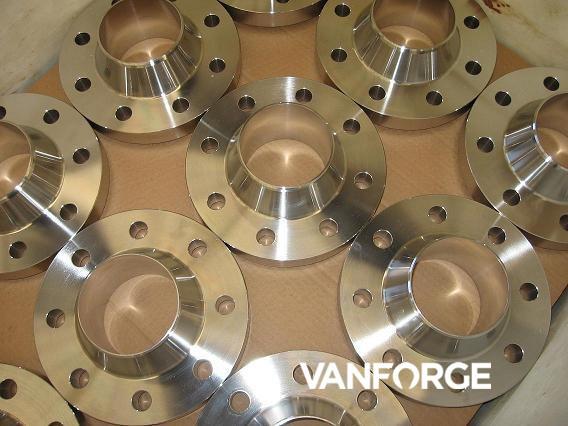

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
Specifications
Brand Name :
VANFORGE
Certification :
ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 pcs per month
Delivery Time :
30 days
Packaging Details :
Seaworthy package for export
Material :
Austenitic stainless steels, duplex stainless steels
Process :
Forged, machined
Treatment :
Stress-relieved
Surface :
Bright
Application :
Petrochemical, chemical, paper and pulp
Feature :
High precision
Standard :
ANSI, ASTM, ASME, EN, DIN, JIS, GOST
Price :
Negotiable
Description

ASTM A182 ASME B16.5 150LBS forged stainless steel lap joint flange

Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

Standard specification for ANSI/ASME flanges from stock

Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

Stainless steel lap joint flange, 150LBS

Technical date:

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness

ASTM A182, ASME B16.5

Flat face, smooth finish (125-250 RMS / 3.2-6.3 µm)

Product code example:

FFLJ-316L-2-150

● = Standard

Pipe

Flange

Hub

Drilling template

Weight

Standard

Nom.size

O.D.

D

J

b

h

r

m

l

k

No. of holes

kg/pce

ASTM316L

in.

mm

mm

mm

mm

mm

mm

mm

mm

mm
1/2
3/4
1
1 ½		 21.3
26.7
33.4
48.3		 88.9
98.6
108.0
127.0		 22.9
28.2
35.1
50.0		 11.2
12.7
14.2
17.5		 15.7
15.7
17.5
22.4		 3.0
3.0
3.0
6.4		 30.2
38.1
49.3
65.0		 15.7
15.7
15.7
15.7		 60.5
69.9
79.2
98.6		 4
4
4
4		 0.390
0.560
0.780
1.320		 ●
●
●
●
2
3
4
6		 60.3
88.9
114.3
168.3		 152.4
190.5
228.6
279.6		 62.5
91.4
116.8
171.5		 19.1
23.9
23.9
25.4		 25.4
30.2
33.3
39.6		 7.9
9.7
11.2
12.7		 77.7
108.0
134.9
192.0		 19.1
19.1
19.1
22.4		 120.7
152.4
190.5
241.3		 4
4
8
8		 2.060
3.850
5.300
7.450		 ●
●
●
●

Production facilities:

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness

150LBS Austenitic / Duplex Lap Joint Forged Steel Flange High Toughness
