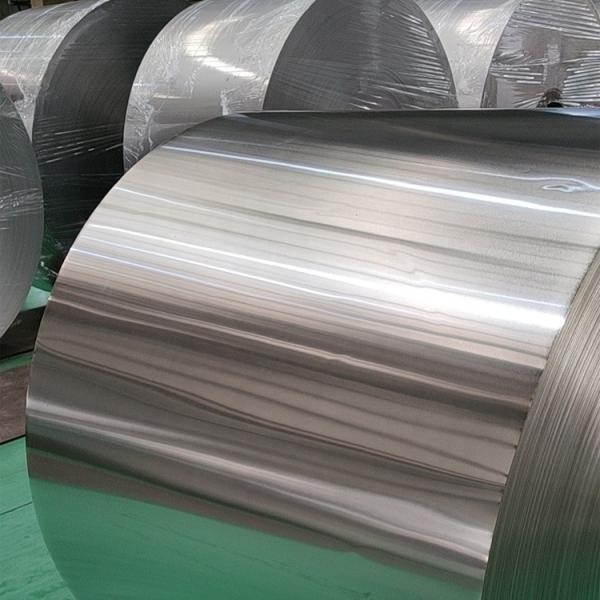

Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated
Specifications
Brand Name :
SYL
Model Number :
tinplate
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
＄480-700/Metric Ton
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
2000 Ton/Tons per Month
Delivery Time :
7-15 work days
Packaging Details :
Standard seaworthy export packing or as customer demands
Thickness :
0.16mm; 0.17mm; 0.18mm； 0.19mm; 0.2mm
Colour :
Tin colour, Gold colour
Temper :
T2, T3, T4, DR-7M，DR-8，DR-8m,
Surface treatment :
tin coated for print
Material :
MR; SPCC; L
Product name :
Low Price Factory Food Grade Tinplate Spcc Bright 2 8 2 8 High Quality T1 T3 Tin plate
Surface :
Bright/ stone/ matte
Application :
Food packaging; printing
Description

Metal packing T3 T4 5.6/2.8 tin coating Tin plate/Electrolytic Tinplate /ETP tin coating tinplate

Product Introduction

Tinplate has constantly taken advantage of dramatic improvements, especially over the past decades.

Improvements of the steel production processes (lower melting residuals and better inclusion cleanliness, switch from ingots to continuous casting, good temperature controls during hot rolling, high precision cold rolling).

Improvements of the coating process (hot dip tinning replaced by electro tinning to reduce the thickness of the tin layer).

Improvements of lacquers to increase the corrosion resistance, switch from soldering to electric welding for the can bodies.

Specifications

Product Name

 Metal packing T3 T4 5.6/2.8 tin coating Tin plate/Electrolytic Tinplate /ETP tin coating tinplate

Standard

JIS

Material

MR

Grade

Prime

Annealing

BA/ CA

Thickness

0.14-1.2mm

Width

As customer required

Temper

T1, T2, T3, T4, T5, DR-7m, DR-8, DR-8m, DR-9, DR-9m

Coating(g/m2)

1.1/1.1 2.0/2.0 2.8/2.8

Surface Finish

Stone, Bright, Sliver, Matte

Packaging

Standard export packing or according to customer's requirements.

Payment

T/T or L/C

JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Tunisia, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.

Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated

Coating Structure

Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated

Production Process

Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated

Mechanical Properties

Temper Grade

Hardness(HR30Tm)

Yield Strength(MPa)

T-1

49±3

330

T-2

53±3

350

T-3

57±3

370

T-4

61±3

415

T-5

65±3

450

T-6

70±3

530

DR-7M

71±5

520

DR-8

73±5

550

DR-8M

73±5

580

DR-9

76±5

620

DR-9M

77±5

660

DR-10

80±5

690

Coating Weight

Former Coating Designation

Nominal Coating Weight
(g/m2)

Minimum average Coating Weight (g/m2)

10#

1.1/1.1

0.9/0.9

20#

2.2/2.2

1.8/1.8

25#

2.8/2.8

2.5/2.5

50#

5.6/5.6

5.2/5.2

75#

8.4/8.4

7.8/7.8

100#

11.2/11.2

10.1/10.1

25#/10#

2.8/1.1

2.5/0.9

50#/10#

5.6/1.1

5.2/0.9

75#/25#

5.6/2.8

5.2/2.5

75#/50#

8.4/2.8

7.8/2.5

75#/50#

8.4/5.6

7.8/5.2

100#/25#

11.2/2.8

10.1/2.5

100#/50#

11.2/5.6

10.1/5.2

100#/75#

11.2/8.4

10.1/7.8

125#/50#

15.1/5.6

13.9/5.2

Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated

Food Grade Steel Tin Plate 0.16mm Spcc Bright T1 T3 Tin Coated

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
