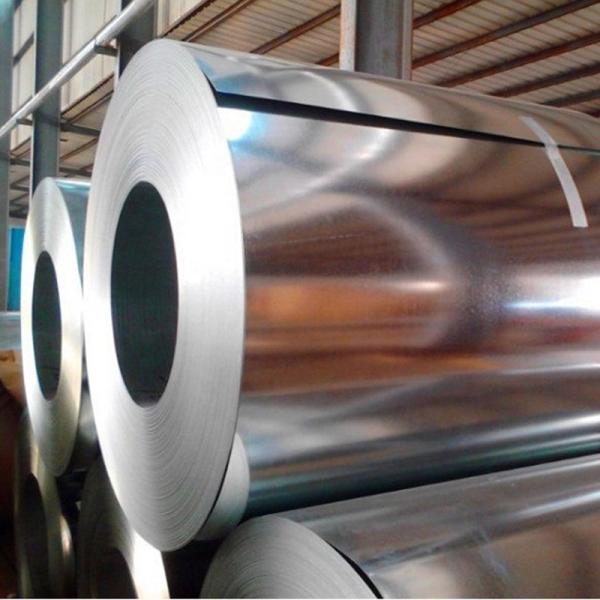

ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans
ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans
ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans
ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans
ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans
ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans
ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans
ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans
Specifications
Brand Name :
SYL
Model Number :
tinplate
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
＄480-700/Metric Ton
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
2000 Ton/Tons per Month
Delivery Time :
7-15 work days
Packaging Details :
Standard seaworthy export packing or as customer demands
Product name :
Tinplate /ETP T4 5.6/2.8 tin coating Tin plate/Electrolytic used for Food Cans
Tin coating :
2.8/5.6
Thickness :
0.17mm
Temper :
T3, T4, T5
Application :
Container Plate
Material :
MR; SPCC
Colour :
Tin colour
Surface treatment :
tin coated with lacquer
Description

Tinplate /ETP T4 5.6/2.8 tin coating Tin plate/Electrolytic used for Food Cans

Product Introduction

 Tinplate packaging containers have many advantages, such as high strength, good formability and strong product compatibility, which have established a good "word of mouth" in the international market.   Therefore, all countries generally attach importance to this kind of packaging container.According to the different requirements of the packaging industry, the thickness of the tinplate material, the amount of tin plating and the mechanical properties have different needs.   One is to use less tin, or even not to use tin, and the other is to reduce the thickness of the tinplate substrate. The purpose is to adapt to changes in canned products and reduce the cost of canning.

Specifications

Product Name

Tinplate /ETP T4 5.6/2.8 tin coating Tin plate/Electrolytic used for Food Cans

Standard

JIS

Material

SPCC/ MR

Grade

Prime

Annealing

BA/ CA

Thickness

0.14-1.2mm

Width

As customer required

Temper

T3, T4, T5, DR-7m, DR-8, DR-8m

Coating(g/m2)

1.1/1.1 2.0/2.0 2.8/2.8

Surface Finish

Stone, Bright, Sliver, Matte

Packaging

Standard export packing or according to customer's requirements.

Payment

T/T or L/C

JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Tunisia, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplate that meets international standards.

ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans

Coating Structure

ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans

Production Process

ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans

Mechanical Properties

Temper Grade

Hardness(HR30Tm)

Yield Strength(MPa)

T-1

49±3

330

T-2

53±3

350

T-3

57±3

370

T-4

61±3

415

T-5

65±3

450

T-6

70±3

530

DR-7M

71±5

520

DR-8

73±5

550

DR-8M

73±5

580

DR-9

76±5

620

DR-9M

77±5

660

DR-10

80±5

690

Coating Weight

Former Coating Designation

Nominal Coating Weight
(g/m2)

Minimum average Coating Weight (g/m2)

10#

1.1/1.1

0.9/0.9

20#

2.2/2.2

1.8/1.8

25#

2.8/2.8

2.5/2.5

50#

5.6/5.6

5.2/5.2

75#

8.4/8.4

7.8/7.8

100#

11.2/11.2

10.1/10.1

25#/10#

2.8/1.1

2.5/0.9

50#/10#

5.6/1.1

5.2/0.9

75#/25#

5.6/2.8

5.2/2.5

75#/50#

8.4/2.8

7.8/2.5

75#/50#

8.4/5.6

7.8/5.2

100#/25#

11.2/2.8

10.1/2.5

100#/50#

11.2/5.6

10.1/5.2

100#/75#

11.2/8.4

10.1/7.8

125#/50#

15.1/5.6

13.9/5.2

Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans

ETP T4 5.6 / 2.8 Steel Tin Plate Electrolytic Used For Food Cans

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
