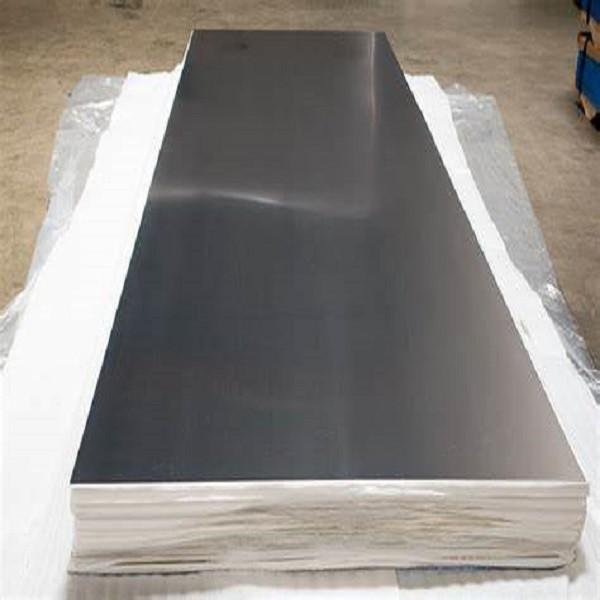

99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
Specifications
Place of Origin :
CHINA
Brand Name :
DMJD
Model Number :
1000-7000 series
Packaging Details :
Standard export packing or according to customers's requirement
Strong Wooden Pallet with Galvanized Steels band (or plastic band).
Supply Ability :
300000 Ton/Tons per Year
Price :
$2,859.68 - $3,968.88/Tons
Certification :
Product quality certificate
MOQ :
5tons
Delivery Time :
8-30 days
Grade :
1000,2000,3000,5000,6000,7000 Series
Temper :
O-H112,T3-T8,T351-T851
Type :
Plate/Coil
Application :
Marine application, automobile, planes subway,etc, Marine applications( ships), cars, planes, subways, light rail
Width :
20mm to 3300mm
Surface Treatment :
PE Coated, Protective Film
Alloy Or Not :
Is Alloy
Tolerance :
±0.1-1%
Processing Service :
Decoiling, Cutting, Cutting
Product Name :
Aluminium plate
Material :
Aluminum Alloy
MOQ :
1ton
Keyword :
Aluminim Plate
Port :
Tianjin, Qingdao, Shanghai, Ningbo, etc.
Description
Aluminum Plate Sheet 3003 6061 7075 1050 1060 1100 7075

Common Materials of Aluminum Plate
1000 series aluminum plate 1060 1050 1100 1070
2000 series aluminum plate 2024 2A12 2017 2014 2A11 2A14
3000 series aluminum plate 3003 3004 3105 3104 3A21 3005
5000 series aluminum plate 5052 5083 5754 5A03 5454 5182 5A06 5005 5252 5A02 5086 5A05
6000 series aluminum plate 6061 6063 6082 6005 6101 6060 6005A
7000 series aluminum plate 7075 7005 7050 7A09 7A04
Material status F,O,H12,H14,H16 H18,H19,H22,H24 H26,H28,H112,H114
Thickness(mm) 0.1-600
Width (mm) 100-2650
Length Based on Customer’s request

Aluminum plate refers to the rectangular plate rolled and processed by aluminum ingot and can be applied to various fields like automotive, construction, furniture, and more. According to the composition of alloy, Aluminum plate is divided into:

1.High-Purity Aluminum Plate( rolled from high purity aluminum, content above 99.9);
2. Pure Aluminum Plate (rolled from pure aluminum);
3. Alloy Aluminum Plate (composed of aluminum and auxiliary alloys, usually aluminum copper, aluminum manganese, aluminum silicon,aluminum magnesium, etc);
4. Composite Aluminum Plate (special purpose aluminum plate formed by compositing multiple materials);
5. Aluminum-clad AluminumPlate(aluminum plate coated with thin aluminum plate for special use).

Aluminum alloy

The Aluminum alloy formed by adding certain metal elements has the advantages of keeping the pure aluminum light and high strength, with σb values up to 24 ~ 60kgf/mm2. This makes its specific strength better than many alloy steel and it has become an ideal structural material to reduce the weight. Aluminum alloy materials are widely used in machinery manufacturing, transport machinery, power machinery and aviation industry, aircraft fuselage, skin, compressor, etc.
1000 series aluminum alloy: belongs to the series with the most aluminum content. The commonly used aluminum alloy includes 1050,1060 and 1100. The purity can reach more than 99.00%. Since it does not contain other technical elements, the production process is relatively simple and the price is relatively cheap. It is currently the most commonly used series in conventional industries.
2000 series aluminum alloy: belong to aviation aluminum materials with high hardness and highest copper about 3-5%. The commonly used aluminum alloy includes 2024, 2A16, and 2A02.
3000 series aluminum alloy: belongs AL-Mn series alloy and it is the most widely used anti-rust aluminum.Manganese is the main component and the content is between 1.0-1.5, which makes the aluminum alloy have good anti-rust function. The commonly used aluminum alloy includes 3003, 3004, 3A21.
4000 series aluminum alloy: has high silicon as high as 4.5-6%. It is widely used for construction materials, mechanical parts, forging materials, welding materials due to the characteristics of heat resistance and wear resistance. The commonly used aluminum alloy is 4A01.
5000 series aluminum alloy: belongs to anti-rust aluminum, and it is called aluminum-magnesium alloy, whose magnesium content is as high as 3-5%. The main features are low density, high tensile strength and high elongation. It is also widely used in conventional industries. The commonly used aluminum alloy include 5052, 5005, 5083, and 5086.
6000 series aluminum alloy: mainly contains magnesium and silicon, thus it has the advantages of 4000 series and 5000 series. The commonly used aluminum alloy is 6061 and 6063. 6061 is a cold-treated aluminum forging product, suitable for the applications with high requirements for corrosion resistance and oxidation. It has the characteristics of easy coating and good processability.
7000 series aluminum alloy: mainly contains zinc. It also belongs to the aerospace series. It is an aluminum-magnesium-zinc-copper alloy, a heat-treatable alloy and it is a super-hard aluminum alloy with good wear resistance. The commonly used aluminum alloy is 7075.
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated

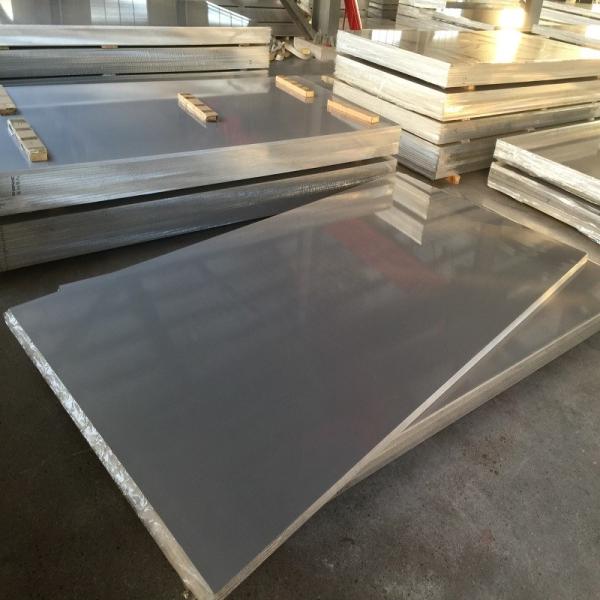

Product Display
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
Popular Aluminium Checker Plate
Application: Trailers, ramps, tool boxes, decorative flooring & walls, Kick plates, Dock surfaces, stairways, etc.
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
* Aluminum plate with orange peel pattern
Thickness 0.01-3.0(mm)
Width 800-1220(mm)
*Diamond checkered aluminum plate
Thickness 0.01-3.0(mm)
Width 800-1220(mm)
*Embossed aluminum sheet/plate
Thickness 0.01-3.0(mm)
Width 800-1220(mm)
Processing technology
Production Flow Chart
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
Application
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated

Product applicationi introduction

Aluminum alloy plates have been widely used in aviation, aerospace, automobile, machinery manufacturing, ship building and chemical industry. With the rapid development of science and technology and industrial economy in recent years, the demand for aluminum alloy welding
structure is increasing. Different series of aluminum alloys have different application.
1000 series aluminum alloy application
1050: used for extruded coil tubes, various hoses, for food, chemical and brewing industries.
1060: used for chemical equipment.1100: used for chemical products, food industry installations and storage containers, Sheet work-pieces, deep-drawing or spinning concave vessels, welding parts, heat exchanger, printing plates, nameplates, reflective appliances,etc.
2000 series aluminum alloy application
2024-Due to its high strength and good fatigue strength, 2024 aluminum alloy is mainly used to make various high load parts and components (but excluding stamping parts and forgings), such as skeleton parts, skin, spacer frame, wing ribs, wing beams, propeller components, rivets and other working parts below 150 ℃.
3000 series aluminum alloy application
3003- Al Mn alloy, which is the most widely used antirust aluminum. The strength of this alloy is not high. It is used for low load parts requiring high plasticity and good weldability, working in liquid or gas medium, such as mailbox, gasoline or lubricating oil conduit, various liquid containers and other low load parts made by deep drawing: wire rod is used as rivet, and 3003 aluminum plate has good formability, solubility and corrosion resistance.
3004 -with higher strength than 3003 alloy, mainly used in chemical product production and storage devices, sheet processing parts, building materials, building baffles, cable ducts, sewers, various lamp parts, beverage cans, wave plates, building materials, color aluminum plates and electric lamp heads.
5000 series aluminum alloy application
5005: used for conductors, cookware, instrument panels, shells and building trim.
5052:used for marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device.
5083: used for marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel, tanker, oil storage tank,
drilling platform.
5086:used for ship board, deck, bottom and edge of panel etc.
6000 series aluminum alloy application
6061: used for trucks manufacturing, construction, ships, trams, furniture, machinery parts, precision processing, industrial materials,etc.
6063:used for aluminum doors and windows, curtain wall frame, in order to ensure that the doors and windows, curtain wall,etc.
6082: used for aircraft Parts, camera lenses, couplers, marine fittings and hardware, electronic fittings and joints, decorative or various hardware, hinge heads, magnetic heads, Brake Pistons, Hydraulic Pistons, electrical fittings, Valves and valve fittings,etc.
6351:used for the extrusion structure material of highway traffic facilities needs the pipeline of transporting gas, oil and water with high strength of materials, etc.
7000 series aluminum alloy application
7075 - used for manufacturing aircraft structures and high stress structural parts and molds with high strength and strong corrosion resistance.
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated

Why Choose Us

Our Services & Strength
We have advanced technology and equipment, strict detection means, scientific management to guarantee the high-quality, stability and reliability for every batch of product dispatched from the factory. Also, our company has many years of foreign trade experience and has established long term trade cooperation with many foreign companies. All of us are ready to start the business cooperation with you.
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
Packing&Shipping
Strong Wooden Pallet with Galvanized Steels band (or plastic band).
We can also do special packaging after negotiation.
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
99.9% Pure Aluminum Alloy Plate 1050 1060 1100 PE Coated
FAQ
Q. Who are you?
A: We are a professional manufacturer and exporter of metal products based in Shaanxi, China.

Q:May we have an inspection of your factory?
A:Sure, you're welcome any time.

Q:How can I trust your company?
A:We consider honest as the life of our company. Besides, there is trade assurance from Alibaba, your order and money will be well
guaranteed.

Q: What is the MOQ?
A: Our MOQ is 1 ton. While the larger purchase quantity, the cheaper price.

Q: What’s the delivery time for the tubes normally in your company?
A: Our delivery time is around 3-30 days base on our stock and customer’s purchase quantity. For the products in stock,we will make shipments in 3-5 days after receiving deposit; If we need produce the products, it will depend on the factory schedule and the purchase quantity. We will try our best to finish the production as soon as we can.

Q: What payment terms you can deal with?
A: Mostly we deal with payment by TT. For payment of L/C, we need to know which bank you will use to open the L/C and then decide whether L/C is acceptable or not.

Q: Could you print our company logo or information on the tubes plastic bag and the outside package also?Is there extra cost for it?
A: Yes, we can print the logo on it for you. The extra cost will depend on the purchase quantity. It can be negotiable.

Q: How to ensure the quality?
A: Mill Test Certificate will be offered. If needed, a Third Party Inspection is acceptable.
Always a pre-production sample before mass production;Always final Inspection before shipment;

Q: How can we contact you as soon as possible?
A: We are always available on Alibaba.com, WhatsApp, Wechat. You can also reach us by email. You are welcome to send us any questions anytime and we will reply you within 24 hours.

Contact:Ivy Zheng
Whatsapp / Wechat: +86 17782503853
Email:ivy@dongmjd.com
