ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D
Specifications
Brand Name :
Dongmeng
Model Number :
600-1250mm
Certification :
API, SONCAP, JIS, GS, ISO9001
Place of Origin :
CHINA
MOQ :
5 TONS
Price :
$550-$580/TON
Payment Terms :
T/T
Supply Ability :
2000000/YEAR
Packaging Details :
Standard Seaworthy Packing
Width :
600mm-1250mm
Standard :
ASTM,AISI,GB,JIS,DIN
Length :
as your requirements
Grade :
Q195 DX51D DX53D SGCC
Zinc coating :
Z61-Z80
Application :
roofing,Decor,Flange Plate,commercial use,Forming
Technique :
Cold Rolled,Hot Rolled
Coil weight :
3-8 Tons
Type :
Steel Coil
Surface treatment :
Galvanized
Spangle :
Mini,Normal,Reuglar Spangle,Zero
Surface :
chromated and oiled
Thickness :
0.12-4.0
Shape :
Flat.sheet,Rolled
Product name :
Galvanized Steel Coil
Material :
SGCC/CGCC/DX51D+Z
Name :
Galvanied Steel Sheet
Description

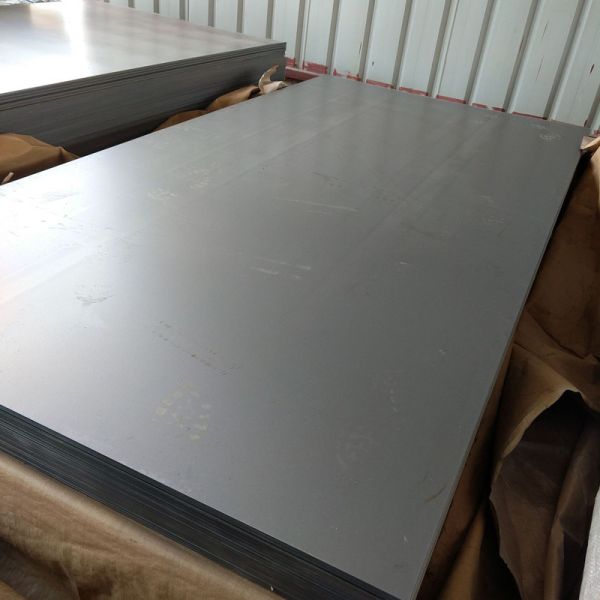

ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D

Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer. This bonding layer is formed by a diffusion process while the heated steel is in contact with molten zinc.

Standard astm a526 a528 a444, a653, jis g3302, en10142 en1012, etc
Grade DX51D+Z, DX52D+Z, DC52D+Z, DC51D+Z, S350GD+Z, G550, SGCC, DD52D+Z etc
Thickness 0.12-3.0mm (customize, above 3.0mm available)
Width 600-2000mm (customize)
Length as customer requirements
Coil inner diameter 508mm/610mm (customize)
Zinc coating 20-600g/m2
Raw material cold rolled base. (hot rolled base also available)
Technique hot dipped.
Coil weight 3-8 tons
Tolerance thickness +- 0.02 or +- 0.04, width +-5mm
Spangle type zero spangle, small spangle, regular spangle, big spangle
Surface treatment chromated/non-chromated, oiled/non-oiled, anti-fingerprints
Certification CE, ISO9001-2008, SGS
Monthly output 17000 tons
Packaging 3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside
Landing port qingdao/shanghai/tianjin port
Payment terms T/T
Delivery time it takes about 10 days for stock goods, or it will need 15-25 days if goods need to be customized
MOQ as customer needs. reminder: more quantity reduce your purchase cost greatly
Inspection third-party test
Cooperate brand anshan steel, baotou steel, jiangsu shagang etc

Usage Grade Yield Strength (MPA) Tensile Strength (MPA) Elongation rate %
Punching galvanized steel DX51D+Z ~ 270-500 >=20
DX52D+Z 140-300 270-420 >=22
DX53D+Z 140-260 270-380 >=26
DX54D+Z 140-220 270-350 >=30
Structure galvanized steel S220GD+Z >=220 >=300 >=18
S250GD+Z >=250 >=330 >=17
S280GD+Z >=280 >=360 >=16
S320GD+Z >=320 >=390 >=15
S350GD+Z >=350 >=420 >=14
S400GD+Z >=400 >=470 ~
S500GD+Z >=500 >=530 ~
S550GD+Z >=550 >=560 ~

ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52DASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D

ASTM Q195 Hot Dipped Galvanized Steel Sheet Coil Sheet Strip 1500 Mm Dx52D

Dongmeng Steel provides high-quality hot-dip galvanized steel coils and electro galvanized coils. As a very cost-effective building material and decorative material with cheap price and high corrosion resistance, our products are sold all over the world, favored by local customers, and also promote the development of the local economy. Friends from all over the world welcome you to buy our products!
