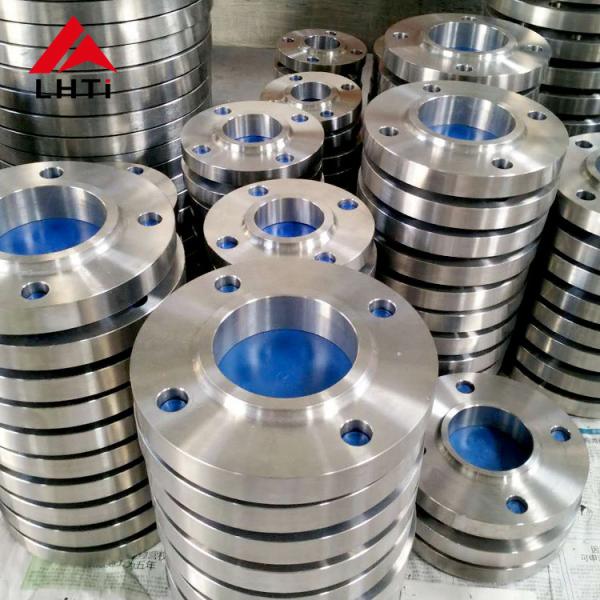

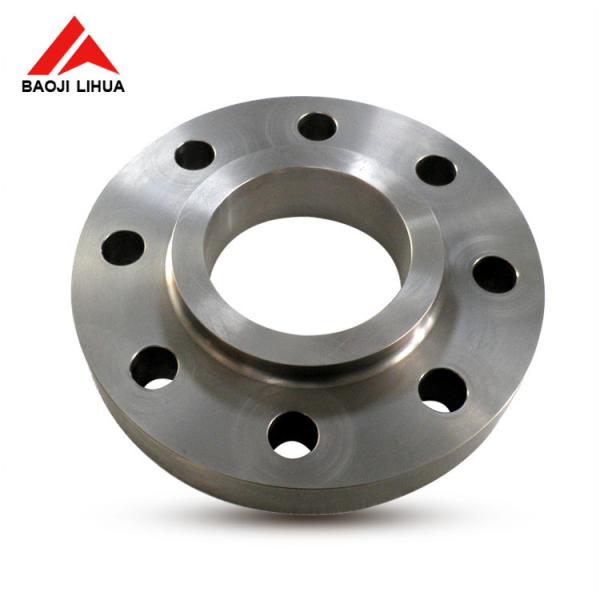

Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5
Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5
Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5
Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5
Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5
Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5
Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5
Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5
Specifications
Brand Name :
LHTI
Model Number :
LH-32
Certification :
ISO9001
Place of Origin :
Baoji Shaanxi China
MOQ :
5 piece
Price :
US dollar $180/pc-US dollar $300/pc
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal etc
Supply Ability :
500 piece per week
Delivery Time :
5-7 days
Packaging Details :
standard export plywood case
Material :
titanium,nickel
Type :
SO
Standard :
ANSI B16.5
Grade :
Gr2
Surface :
RF
Application :
oil.chemcial industrial
keyword :
WN titanium flange
Description

ANSI B16.5 Gr2 WN RF welding neck titanium flange

WN Titanium Flange drawing

Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5

products ASME B 16.5 Ti gr2 titanium SO flange oil & gas industry &oil flange
Material Grade Gr2, (Gr7, GR12)
Certification ISO9001:2008, EN10204.3.1
Standard ANSI B16.5, ASME B16.5, ASME B16.47,
size 1/2"~ 24"
Pressure Class 150LB, 300LB, 600 LB,900LB, 1500LB, 2500LB
Technique Forged and CNC Machined
type WN
Flange surface FF,RF,TG,RJ ,MFM etc

Class 150 Titanium Slip-on flange
Nom.
Pipe
Size		 Flange
Dia.		 Flange
Thick		 Hub Dia. At Base Raised
Face Dia.		 No.
of
Holes		 Dia.
Of
Bolts		 Dia. Of Bolt Circle Bore
Dia.		 Length
Thru Hub
1/2 3-1/2 7/16 1-3/16 1-3/8 4 1/2 2-3/8 0.88 5/8
3/4 3-7/8 1/2 1-1/2 1-11/16 4 1/2 2-3/4 1.09 5/8
1 4-1/4 9/16 1-15/16 2 4 1/2 3-1/8 1.36 11/16
1-1/4 4-5/8 5/8 2-5/16 2-1/2 4 1/2 3-1/2 1.70 13/16
1-1/2 5 11/16 2-9/16 2-7/8 4 1/2 3-7/8 1.95 7/8
2 6 3/4 3-1/16 3-5/8 4 5/8 4-3/4 2.44 1
2-1/2 7 7/8 3-9/16 4-1/8 4 5/8 5-1/2 2.94 1-1/8
3 7-1/2 15/16 4-1/4 5 4 5/8 6 3.57 1-3/16
3-1/2 8-1/2 15/16 4-13/16 5-1/2 8 5/8 7 4.07 1-1/4
4 9 15/16 5-5/16 6-3/16 8 5/8 7-1/2 4.57 1-5/16
5 10 15/16 6-7/16 7-5/16 8 3/4 8-1/2 5.66 1-7/16
6 11 1 7-9/16 8-1/2 8 3/4 9-1/2 6.72 1-9/16
8 13-1/2 1-1/8 9-11/16 10-5/8 8 3/4 11-3/4 8.72 1-3/4
10 16 1-3/16 12 12-3/4 12 7/8 14-1/4 10.88 1-15/16
12 19 1-1/4 14-3/8 15 12 7/8 17 12.88 2-3/16
14 21 1-3/8 15-3/4 16-1/4 12 1 18-3/4 14.14 2-1/4
16 23-1/2 1-7/16 18 18-1/2 16 1 21-1/4 16.16 2-1/2
18 25 1-9/16 19-7/8 21 16 1-1/8 22-3/4 18.18 2-11/16
20 27-1/2 1-11/16 22 23 20 1-1/8 25 20.20 2-7/8
24 32 1-7/8 26-1/8 27-1/4 20 1-1/4 29-1/2 24.25 3-1/4

Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5

Other type Titanium flange

All types of titanium flange per ASME B16.5 specification, mainly titanium slip-on flange, titanium blind flange, titanium weld neck flange and titanium lap joint flange. Material is mainly C.P. Titanium.

Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5

Other Related Products

---GR2 titanium hex bolts DIN933 and titanium hex nut DIN934

---Pure titanium pipe fitting,titanium elbow,concentric reducer etc

---Titanium seamless / welding tube for chemcial industrial

Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5

Package & Delivery

Titanium SO Slip On Pipe Flanges GR2 For Oil Chemcial Industrial ANSI B16.5

Any inquiry please feel free contact us.
