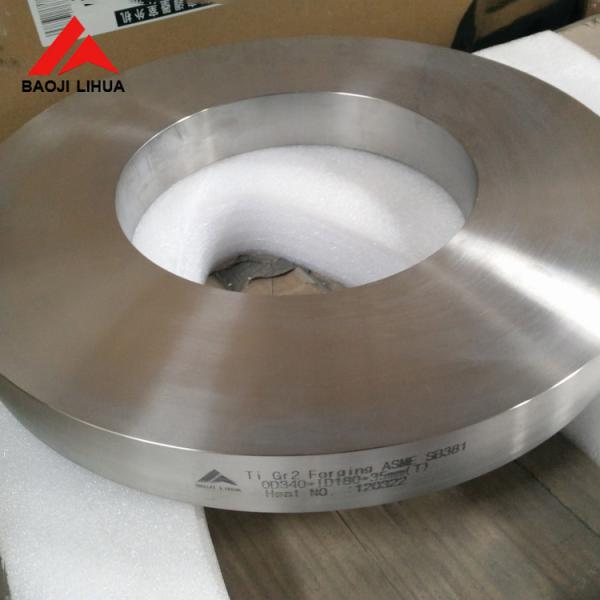

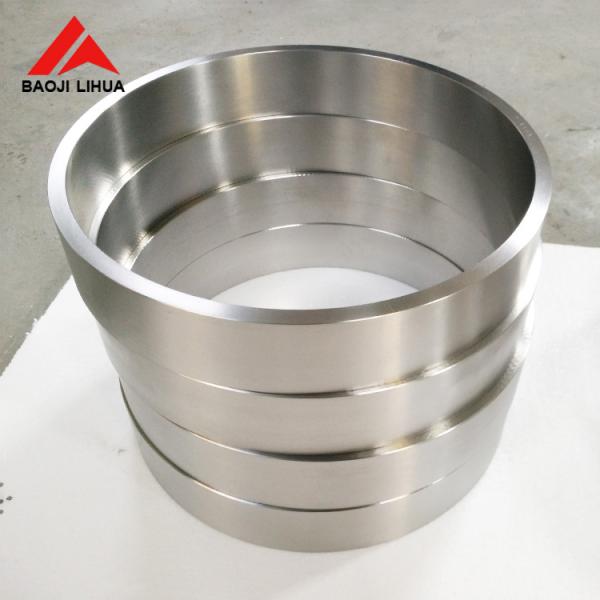

Industrial Annealed GR5 Titanium Ring ASTM B381 Titanium Forgings
Industrial Annealed GR5 Titanium Ring ASTM B381 Titanium Forgings
Industrial Annealed GR5 Titanium Ring ASTM B381 Titanium Forgings
Industrial Annealed GR5 Titanium Ring ASTM B381 Titanium Forgings
Industrial Annealed GR5 Titanium Ring ASTM B381 Titanium Forgings
Industrial Annealed GR5 Titanium Ring ASTM B381 Titanium Forgings
Industrial Annealed GR5 Titanium Ring ASTM B381 Titanium Forgings
Industrial Annealed GR5 Titanium Ring ASTM B381 Titanium Forgings
Specifications
Brand Name :
LIHUA
Model Number :
LH-TH
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 pieces
Price :
US dollar $15/kg--US dollar $35/kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 kgs per month
Delivery Time :
5-25 work days
Packaging Details :
Plywood box for export
Product name :
titanium forged ring
Material :
Gr5
Application :
Chemical industry
Outer diameter :
200-1300mm
Inner diameter :
100-900mm
Height :
35-250mm
Thickness :
40-400mm
Quality control :
Ultrasonic Testing
Description

ASTM B381 Titanium Forgings GR5 titanium ring

· Standard: ASTM b381

· Material: GR1 Gr2 GR5 GR7 GR12 GR9 GR23

· Delivery status: annealed state (m) hot working state (R) cold working state (y) (annealed, ultrasonic flaw detection)

· Packing: in cartons or wooden cases

· Surface treatment: polishing, chamfering

Rolled ring forging is a process that starts with a circular metal preform that has been pierced to form a doughnut shape. The ring is heated and rotated to reduce its wall thickness and increase its diameter.

Including titanium seamless rolled rings, forged rings, and casted rings

The process for seamless rolled forged rings involves cutting a hole out of the forging material and rolling it into a thin ring. The rolled forged rings offer concentrically improved rings with smooth surfaces as compared to plate burn-outs, or butt welded rings.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal
