Specifications
Brand Name :
LH-Ti
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Type :
WN , SO , BL ,SW, PL, Lap joint, customized.
Standard :
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material :
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application :
used in cars, glasses,medical equipment , electronics , petrochemical equ ipment,Pump valve, pipeline, aerospace,Ocean Industry,etc.
Sealing surface :
RF
Size :
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/
Surface :
Polished
Technique :
Forged and CNC Machined.
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description

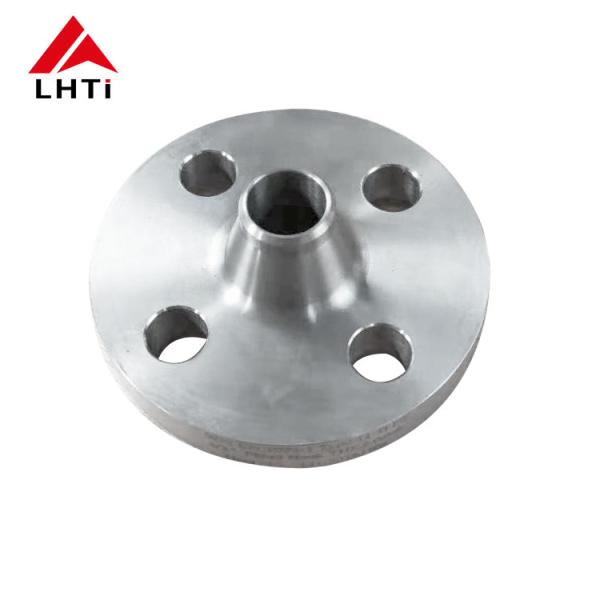

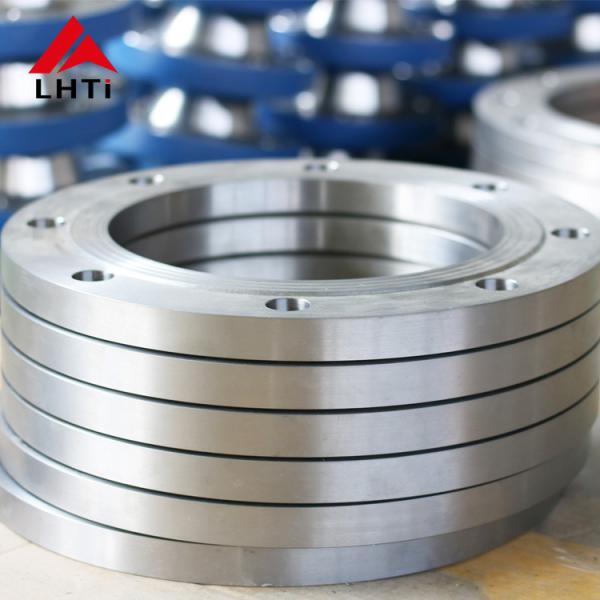

GR2 GR5 Titanium SO Weld Neck Flange For Medical Equipment

Titanium Long Weld Neck Flanges are available in Titanium. They are not, generally, a stock item among distributors but are custom made to order. Smaller LWN maybe produced by machining bar or billet and/or trepanning the core.

Chemical requirements
NCHFeOAlVPdMoNiTi
Gr10.030.080.0150.200.18/////bal
Gr20.030.080.0150.300.25/////bal
Gr50.050.080.0150.400.205.5~6.753.5~4.5///bal
Gr70.030.080.0150.300.25//0.12~0.25//bal
Gr120.030.080.0150.300.25///0.2~0.40.6~0.9bal

Tensile requirements
GradeTensile srength(min)Yeild strength(mm)Elongation(%)
KSIMPaKsiMPa
1352402013824
2503454027520
513089512082810
7503454027520
12704385034518
