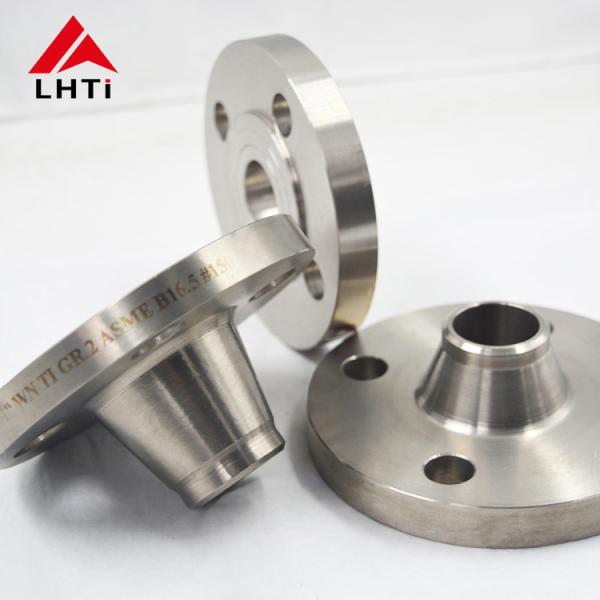

Forged Grade 2 WN RF Welding Neck Titanium Flange ANSI B16.5
Forged Grade 2 WN RF Welding Neck Titanium Flange ANSI B16.5
Forged Grade 2 WN RF Welding Neck Titanium Flange ANSI B16.5
Forged Grade 2 WN RF Welding Neck Titanium Flange ANSI B16.5
Forged Grade 2 WN RF Welding Neck Titanium Flange ANSI B16.5
Forged Grade 2 WN RF Welding Neck Titanium Flange ANSI B16.5
Forged Grade 2 WN RF Welding Neck Titanium Flange ANSI B16.5
Forged Grade 2 WN RF Welding Neck Titanium Flange ANSI B16.5
Specifications
Brand Name :
LH-Ti
Model Number :
LH-BL
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 piece
Price :
US dollar $30/pc--US dollar $80/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-15 work days
Packaging Details :
Wrapped by foam contained in plywood box for export
Type :
WN , SO , BL ,SW, PL, Lap joint, customized.
Standard :
ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
Material :
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Application :
used in cars, glasses,medical equipment , electronics , petrochemical equ ipment,Pump valve, pipeline, aerospace,Ocean Industry,etc.
Sealing surface :
RF
Size :
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure :
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/
Surface :
Polished
Technique :
Forged and CNC Machined.
Inspection :
Ultrasonic Testing & Material Test Report EN10204.3.1
Description

ANSI B16.5 Grade 2 WN RF welding neck titanium flange

Our products undergo various tests to make sure they are fit for use in various industries right from the procurement of materials to the final delivery of flanges. The various tests conducted include Mechanical Testing Such as Tensile of Area, Hardness Test, Chemical Analysis – Spectro Analysis, PMI Testing, etc. We provide our consumers with certain certificates and documents to guarantee that the commodity we offer is free from damage and is manufactured in compliance with quality standards.

Chemical requirements
N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
