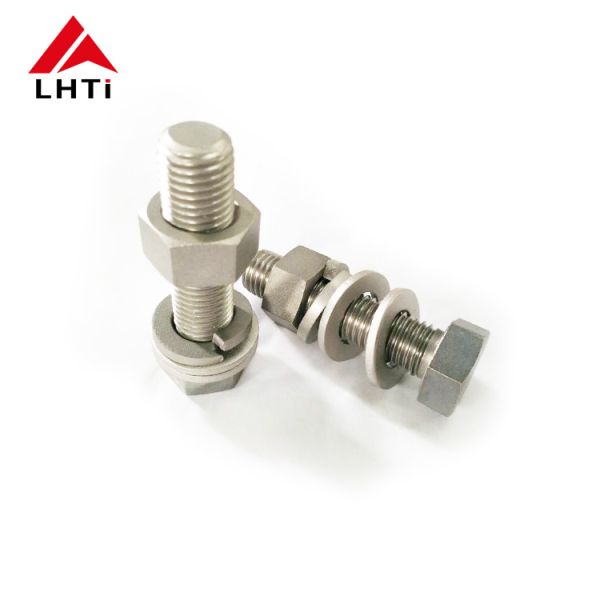

Electroplating Forged DIN933 Gr2 Titanium Hex Head Bolts
Electroplating Forged DIN933 Gr2 Titanium Hex Head Bolts
Electroplating Forged DIN933 Gr2 Titanium Hex Head Bolts
Electroplating Forged DIN933 Gr2 Titanium Hex Head Bolts
Electroplating Forged DIN933 Gr2 Titanium Hex Head Bolts
Electroplating Forged DIN933 Gr2 Titanium Hex Head Bolts
Specifications
Brand Name :
LHTi
Model Number :
Hex head titanium bolt and nuts
Certification :
ISO9001:2015; SGS; TUV; BV
Place of Origin :
Baoji , Shaanxi , China
MOQ :
200 PCS
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
10,000 piece per month
Delivery Time :
10-15 working days
Packaging Details :
Small quantity: pp bags inside,carton box outside packing. More than 10kgs: pp bags inside, Plywood case outside packing
Standard :
DIN933 DIN934
Material :
Titanium gr2
Size :
M3-M36
Length :
As customers' request
MOQ :
200 PCS
Technique :
forged
Application :
chemical industry, electroplating etc
product name :
Gr2 titanium hex head Bolts and nuts forged
Description

Gr2 titanium hex head Bolts and nuts forged

The principle of titanium alloy screws
Titanium screws and titanium nuts are tools that use the physical and mathematical principles of circular rotation and frictional force of objects to tighten objects and tools in a step-by-step manner.
Titanium standard parts
Products: Titanium screws, titanium bolts, titanium nuts, titanium studs
Material: TA1, TA2,
Specification: M4 ～ M25 × L

Pure titanium has extremely high corrosion resistance in most media, especially in neutral, oxidizing

and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys,

stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment

and marine atmosphere for several years, and the surface has not changed.

Titanium is highly stable in various concentrations of nitric acid and chromic acid, and it is also very

resistant to corrosion in alkaline solutions and most organic acids and compounds.Titanium hex bolts

are produced in strictly accordance with DIN933 standard, and the smallest spot specifications from

M3 are available in stock.

Item Name

GR2 Titanium hex head bolts and nuts

Material

Pure Titanium

Grade

Gr2

Standard

DIN933 DIN 934

Surface Treatment

Forged

Color

Ti natural

Applications

 Chemical Industry
Certificate ISO 9001:2015, EN 10204/3.1
Features

​1. Not easy to rust;

2. Resistance to acid and alkali corrosion;

3. Light weight;

4. Has a long service life, widely used in aerospace, electroplating, chemical industry, machinery, etc.

Chemical composition (Wt%)

Grade Fe max O max N max C max H max Pd Al Bal
Gr2 0.3 0.25 0.03 0.1 0.015 - - Ti

Physical Properties (Min)

Grade Alloy Composition Tensile Strength Yield Strength
Elongation min %
ksi Mpa ksi Mpa
Gr2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Common stock size:

M2.5 M2.5*5-M2.5*20
M3 M3*6-M3*20 M3*25-M3*50
M4 M4*10-M4*25 M4*30-M4*50
M5 M5*8-M5*20 M5*25-M5*50
M6 M6*6-M6*40 M6*45-M6*100
M8 M8*10-M8*50 M8*55-M8*100
M10 M10*10-M10*30 M10*35-M10*55 M10*60-M10*100
M12 M12*20-M12*45 M12*50-M12*75 M12*80-M12*100
M14 M14*20-M14*40 M14*45-M14*65 M14*70-M14*100
M16 M16*30-M16*55 M16*60-M16*100
- For other sizes, please contact customer service
