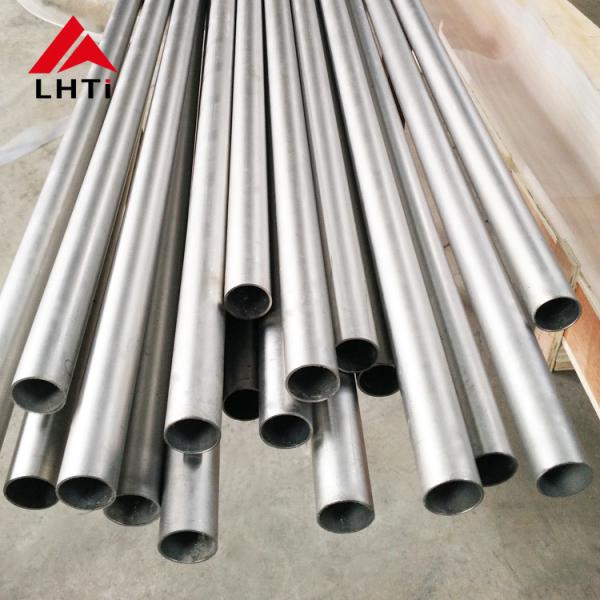

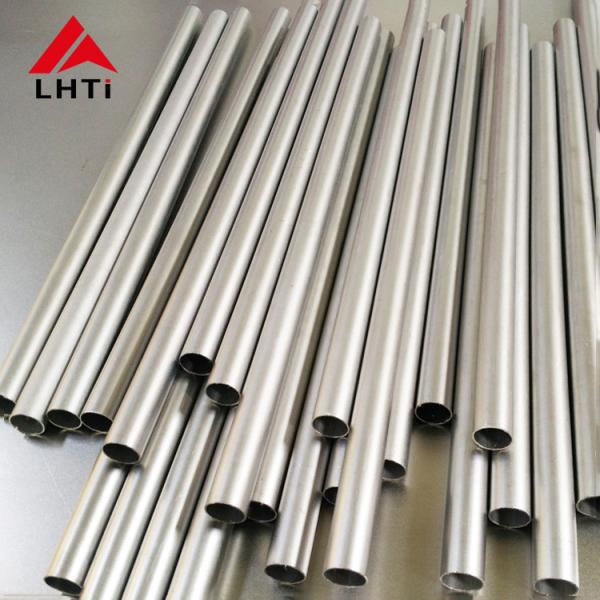

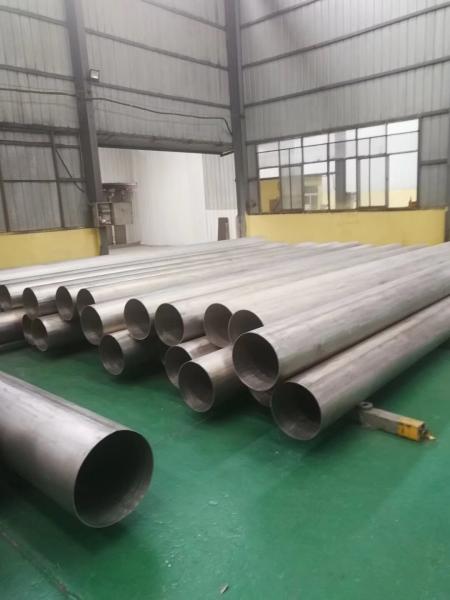

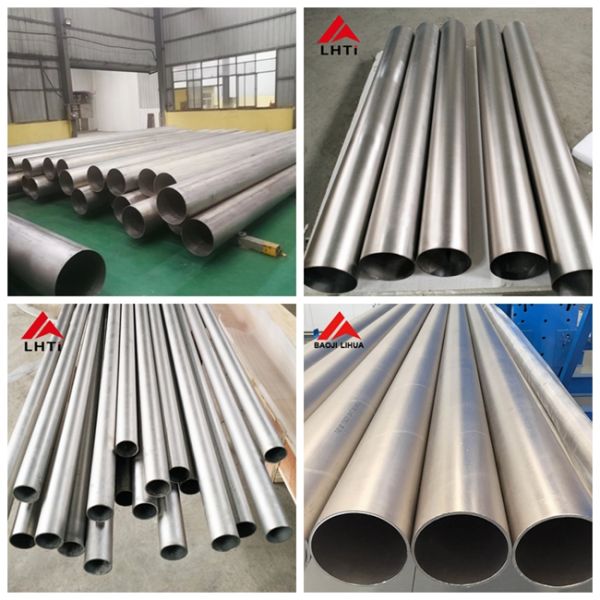

Gr7 Gr2 Titanium Seamless Tube For Chemcial Industry Pure Titanium Material
Gr7 Gr2 Titanium Seamless Tube For Chemcial Industry Pure Titanium Material
Gr7 Gr2 Titanium Seamless Tube For Chemcial Industry Pure Titanium Material
Gr7 Gr2 Titanium Seamless Tube For Chemcial Industry Pure Titanium Material
Gr7 Gr2 Titanium Seamless Tube For Chemcial Industry Pure Titanium Material
Gr7 Gr2 Titanium Seamless Tube For Chemcial Industry Pure Titanium Material
Gr7 Gr2 Titanium Seamless Tube For Chemcial Industry Pure Titanium Material
Gr7 Gr2 Titanium Seamless Tube For Chemcial Industry Pure Titanium Material
Specifications
Brand Name :
LHTI
Model Number :
LH-01
Certification :
ISO9001
Place of Origin :
BaoJi Shaanxi China
MOQ :
1kg of each size
Price :
US dollar $23/kg-US dollar $31/kg
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability :
5 tons per month
Delivery Time :
15 working days
Packaging Details :
Each tube with environmental protection bags,outside is standard plywood case
Key words 1 :
ASTM SB861 titanium tube
Key words 2 :
GR2 titanium seamless tube
Key words 3 :
Gr2 Gr7 titanium tube
Material :
pure titanium
Grade :
Grade 2 / Grade 7
Purity :
99.0%min
Length :
Max 12 meter
Surface :
pickling surface
Application :
Heat Exchanger
Production time :
15 working days
Payment term :
T/T,Paypal,Western union etc
Description

High Quality ASTM B861 Gr2 Gr7 Titanium Seamless Tube For Chemcial Industry


Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.

1.titanium tube information

Name Titanium Tube
Tube Shape Round Seamless Tube
Material Gr2,Gr7
Standard ASTM B861
Type

Seamless
OD 31.8mm
Wall Thickness 1.2mm or as customized
Length Max 12 meter
End Plain End, Beveled End, Threaded
Certificate EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc
Application

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry

Titanium welded pipe for heat exchanger equipments
Titanium welded pipe for chemial and Oil industry		 ASTM B338,
ASTM B862		 Gr1 GR2 GR7 GR12 OD (10.3~914) = (1/8~36)Inch
WT (0.5~30.96) = (0.049~1.219) Inch
Length as your requirment
Titanium seamless tube
(heat exchanger )		 ASTM B338,
ASTM B337,
ASTM B861		 GR1 GR2 GR3 GR5 GR6 GR7 GR9 GR12 etc OD (1.5~420) ×
WT (0.3~16 ) ×
Length 18000 mm

2.Chemical Composition

Element N C H Fe O Al V Mo Ni Pd Ti
Type
GR.1 ≤0.03 ≤0.08 ≤0.015 ≤0.2 ≤0.18 Residual
GR.2 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 Residual
GR.3 ≤0.05 ≤0.08 ≤0.015 ≤0.3 ≤0.35 Residual
GR.7 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 0.12-0.25 Residual
GR.9 ≤0.02 ≤0.08 ≤0.015 ≤0.25 ≤0.15 2.5-3.3 2.0-3.0 Residual
GR.12 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 0.2-0.4 0.6-0.9

Residual

3.Titanium Tube Size List

OD (mm) WT (mm) OD (mm) WT (mm) OD (mm) WT (mm)
3.3 0.25 24 0.7 33.4 4.55
4 0.25 25 0.5 38 1.2
4.9 0.3 25 0.7 38.1 1.24
6.35 0.889 25 1.5 40 0.5
12.7 0.8 25 2 45 1.5
15.88 0.5 25 2.2 45 2
15.88 0.71 25.4 0.89 48.26 1.65
19 0.508 25.4 1.07 48.3 5.08
19 0.711 25.4 1.473 50.8 0.7
19 0.9 25.4 2.108 50.8 0.889
19 1.24 26.67 2.11 50.8 0.9
19.05 0.56 26.67 3.912 51 1.5
19.05 0.9 31.75 0.7112 56 0.8
19.05 1.24 31.75 0.889 60.3 1.5
19.05 1.65 31.75 1 60.325 0.889
19.05 3 31.8 0.89 62 2
21.34 2.11 33.4 2.77 89 2
24 0.5 33.4 3.38 114.3 3.05

4.Titanium tube Process

5.Titanium Tube Test

We can provide ASTM B861 Titanium Alloy Seamless Pipe Mill Test Certificate as per EN10204 as per 3.1
Testing items for titanium tube and titanium pipe:
Chemical composition and mechanical properties
Bending, flaring, flattening, hydraulic, eddy current, ultrasonic (against different specification or specific requirement by customer)

Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.
Application:
Chemical processing industrials (Pure titanium Gr1 or Gr2 Plate or tube)
Heat exchanger(Pure titanium Gr.1 or Gr2 Welded tube)
Plate heat exchanger (Pure titanium Gr.1 or Gr.2 Plate)
Tubing heat exchanger (Pure titanium Gr.1 or Gr2 Welded tube)
Condensers all kinds of corrosive fluid transmission pipeline systems
Titanium bicycle frame
Automobile exhaust pipes
Offshore aquaculture, etc.
