ERW Titanium Tube 3.7035 Ti Alloy Grade 2 , UNS R50400 Heat Exchanger Tubes
ERW Titanium Tube 3.7035 Ti Alloy Grade 2 , UNS R50400 Heat Exchanger Tubes
ERW Titanium Tube 3.7035 Ti Alloy Grade 2 , UNS R50400 Heat Exchanger Tubes
ERW Titanium Tube 3.7035 Ti Alloy Grade 2 , UNS R50400 Heat Exchanger Tubes
ERW Titanium Tube 3.7035 Ti Alloy Grade 2 , UNS R50400 Heat Exchanger Tubes
ERW Titanium Tube 3.7035 Ti Alloy Grade 2 , UNS R50400 Heat Exchanger Tubes
ERW Titanium Tube 3.7035 Ti Alloy Grade 2 , UNS R50400 Heat Exchanger Tubes
ERW Titanium Tube 3.7035 Ti Alloy Grade 2 , UNS R50400 Heat Exchanger Tubes
Specifications
Brand Name :
LHTI
Model Number :
LH-01
Certification :
ISO9001
Place of Origin :
BaoJi Shaanxi China
MOQ :
100 kgs
Price :
USD $19.5-$28.5 / kg
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
500 tons per month
Delivery Time :
7-25 working days
Packaging Details :
Standard exporting packaging, plywood case outside
Product name :
Titanium pipes / titanium tubes
Standard :
ASTM B338
Material :
Grade 2 titanium
Length :
Max 16000mm
Surface :
Pickling surface/Polished
Diameter :
15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc.
Wall thickness :
1.0/1.2mm
Type :
Seamless, welded
Application :
Heat Exchanger, chemical industry etc.
Technique :
Rolled
Description

Dealer of ASTM B338 Titanium Grade 2 Tube, Ti. Alloy Grade 2 ERW Tubes Supplier, Titanium Gr 2 Cold Rolled Coiled Tube, Titanium UNS R50400 Tubing, Titanium NCF Grade 2 Tubes, Gr 2 Titanium Heat Exchanger Tube, Titanium Grade 2 Tubing, Titanium WERKSTOFF NR. 3.7035 Tubing Manufacturer China.

Grade 2 Pure titanium tubes has extremely high corrosion resistance in most media, especially in neutral, oxidizing and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys, stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment and marine atmosphere for several years, and the surface has not changed.
Titanium tubes is highly stable in various concentrations of nitric acid and chromic acid, and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.

These Titanium Grade 2 ERW Tubes offers excellent corrosion resistance, superior formability and strength between grades 1 and 3. Titanium Grade 2 Round Tubes are metals that contain a mixture of titanium and other chemical elements. These Titanium Grade 2 Square Tubes utilizes to build machined components with purity level and mechanical properties intermediate between grade 1 and grade 3 specifications. Commercially Pure Titanium Grade 2 Tubes is one of the most common Grades of unalloyed Titanium. These Titanium Grade 2 Electropolish Tubes provide low weight, good mechanical features, thermal properties and corrosion resistance.

AVAILABLE SIZES

Seamless titanium tube Welded titanium tube
OD:2.0mm-219mm OD:6mm-219mm
WT:0.3mm-120mm WT:0.5mm-10mm
Length: <18000mm Length:<18000mm
*Special seamless Pipes and tubes in bigger or smaller diameter are available upon request.

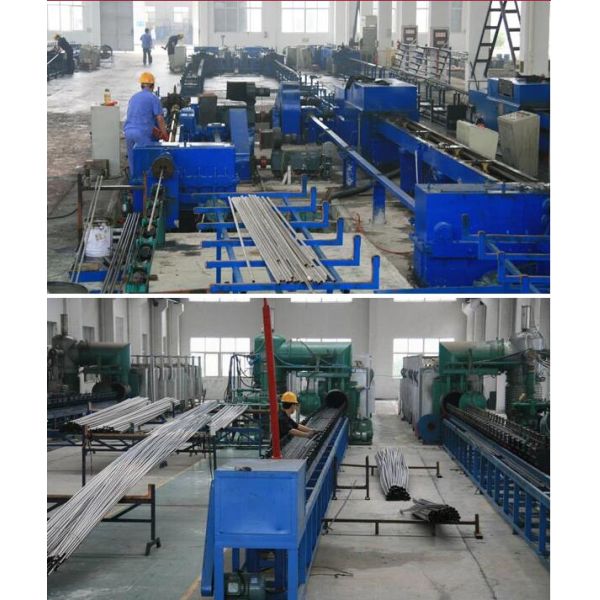

PROCESSING
Cold rolling, Extruding, Welding, Hot Expanding

STANDARD
ASME SB861, ASME SB338, ASME SB337, DIN 17861, AMS4943, AMS 4944, AMS 4945, etc.


EXAMPLE APPLICATIONS
Heat exchangers , Funny car body trees, golf clubs, heat exchangers, hydraulic lines, wheelchairs, chemical plants, oil and gas production, tennis rackets, lacrosse sticks, drive shaft tunnel supports, exhaust tubing, wheelie bars, suppressors .

About us
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.Our company certificated by ISO 9001:2015. As customers's request ,many of our titanium products tested by internation inspection agencies and met the standard,suc asTUV, SGS, BV, etc.

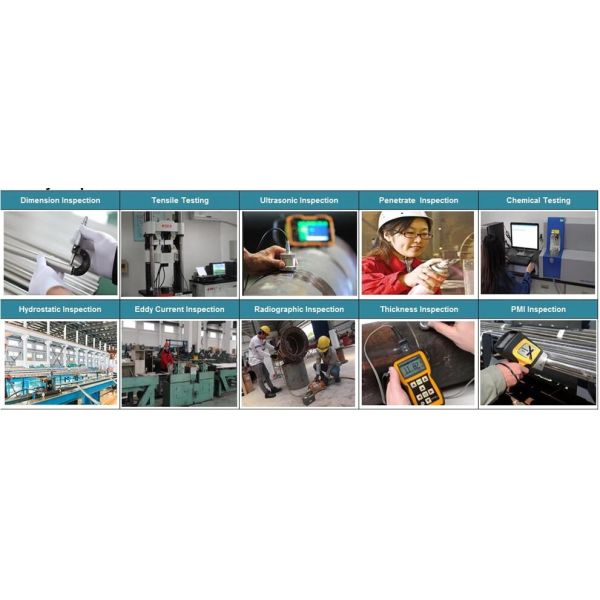

Titanium tubes Quality test:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection


Why Choose Baoji Lihua?
Rich experience:
We have been engaged in machining for 14 years. Our company had good reputation with customers from American, Europe, North America, and Australia, India etc. We also have a good team for sale and quality control.

Good service:
We will respond to you within 24 hours. We manufacture non-standard parts according to your drawings. And we will continue to serve you after sales and will be responsible for the mistakes from us.

Low price:
The prices of our production are reasonable! The prices will be much better if your quantity is good.

Pefect quality:
We have strict quality control from producing to delivery. Our company had strong technology support, 80% of our colleagues are master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality, good at modern concept of management.


If you have any question or requirements, please don't hesitate to contact us.
