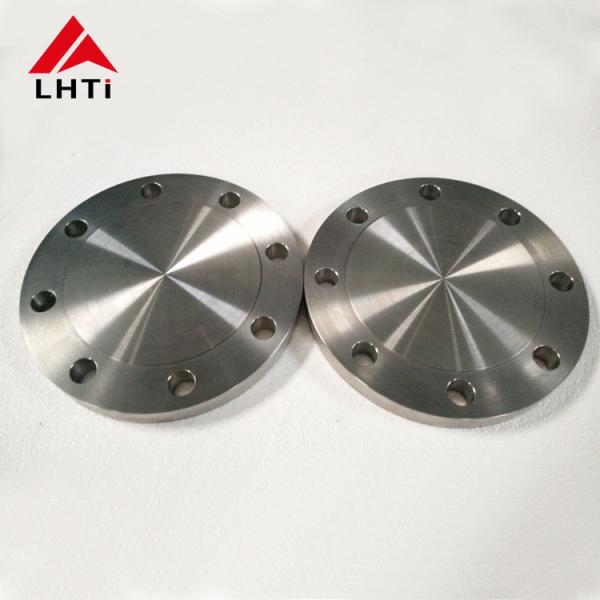

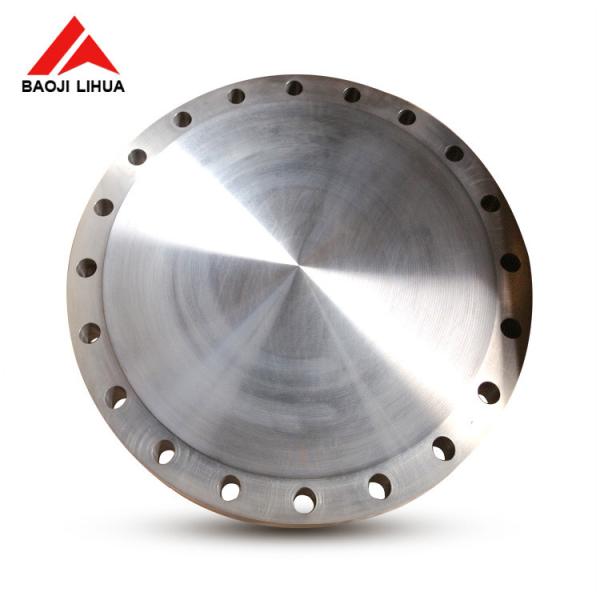

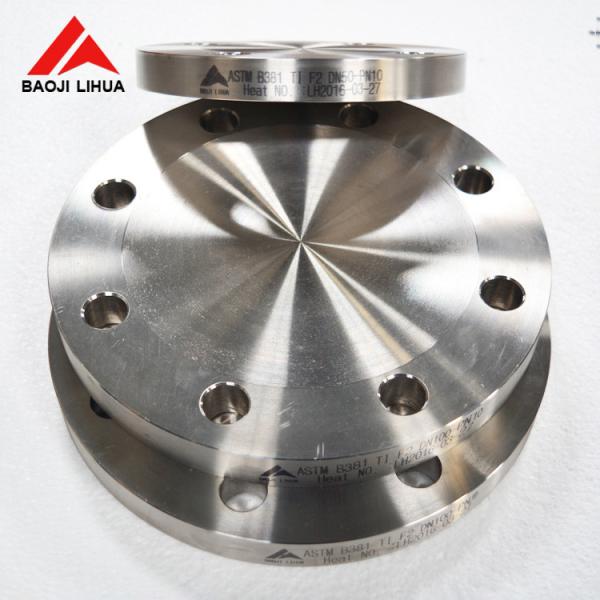

Ti Grade 2 Titanium Blind Flange BL , RF Type Flange DN50 PN16 En 1092-1 Type 05
Ti Grade 2 Titanium Blind Flange BL , RF Type Flange DN50 PN16 En 1092-1 Type 05
Ti Grade 2 Titanium Blind Flange BL , RF Type Flange DN50 PN16 En 1092-1 Type 05
Ti Grade 2 Titanium Blind Flange BL , RF Type Flange DN50 PN16 En 1092-1 Type 05
Ti Grade 2 Titanium Blind Flange BL , RF Type Flange DN50 PN16 En 1092-1 Type 05
Ti Grade 2 Titanium Blind Flange BL , RF Type Flange DN50 PN16 En 1092-1 Type 05
Specifications
Brand Name :
LH-Ti
Model Number :
Blind Titanium flange
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1PC
Price :
USD 15.5-75.5 / PC
Payment Terms :
T/T, Western Union, D/P, D/A, L/C
Supply Ability :
2000000 pcs per month
Delivery Time :
10-20 working days
Packaging Details :
Standard export packing,carton box/plywood case
Porduct name :
Titanium blind flange
Material :
Grade 2 titanium
Standard :
EN1092-1 Type 05, type A
Flange type :
BL
Size :
DN15-DN1200
Pressure :
PN0.6-PN40 ( class150-class3000 )
MOQ :
1PC
Quality test :
Ultrasonic Testing
Description

Titanium Raised Face Blind Flanges , Titanium Alloy Blind Flanges Titanium Blind Flange ,

ASTM B381 Titanium BLRF Flanges, Titanium Flanges, Gr2 Titanium Flanges

Baoji Lihua Ti offers a wide range of Titanium Alloy Flanges, where these products is being offered by us are manufactured using high quality metal. Titanium Slip On Flanges (UNS R50400) is a solid solution alloy that can only be hardened by cold working. Welding methods including gas – arc welding, metal – arc welding, gas – metal – arc welding and submerged – arc welding are recommended on these Titanium Threaded Flanges. Heavy duty machining equipment and tooling should be used in Titanium Weld Neck Flanges to minimize chatter or work – hardening of the alloy ahead of the cutting. Titanium Blind Flanges are typified by their resistance to attack by acids and alkalis, as well as their high mechanical strength and good ductility. Meanwhile, these Titanium Lap Joint Flanges are also being offered in different sizes and shapes to our customers. A thoroughly modern alloy, these Titanium Socket Weld Flanges, is a high performance alloy that benefits greatly from double melting through the Electro Slag Refining (ESR) process. Electro Slag Refining (ESR) process ensures the cleanest and highest quality of Titanium Ring Joint Type Flanges is supplied. There is no need for post weld heat treatment in these Titanium Spectacle Blind Flanges. However, thorough cleaning after welding is critical for optimum corrosion resistance in Titanium Nippolet Flanges, or else there is the risk of contamination and embrittlement.

Titanium blind Flanges Specifications
Standards:ANSI/ASME B16.5, B 16.47 Series A & B, EN-1092, etc.
Specifications : ASTM B381 / ASME SB381
Size : 1/2″NB to 60″NB
Class / Pressure:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Material:Grade 2 titanium
Application of titanium flanges:
Boiler pressure vessels,chemical,petroleum,shipbuilding,pharmaceutical,metallurgy,machiner etc.
Quality Testing:
• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Ultrasonic flaw detection

Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti

Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
Ti Grade 2 Titanium Blind Flange BL , RF Type Flange DN50 PN16 En 1092-1 Type 05

Othet available Flange types

a.Slip On Flange
b.Welding Neck Flange
c.Threaded Flange(Screwed Flange)
d.Plain Flange
e.Blind Flange
f.Lap Joint Flange
g.Wocket Welding Flange
h. welded flange
i. titanium large-diameter flange

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing for titanium mill products and equipment. With 14 years production and export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628.Lihua is certified by ISO9001:2008 and IQNET. Many of our company's products have passed SGS,BV, LR'S ,TUV international inspection agency inspection.
Ti Grade 2 Titanium Blind Flange BL , RF Type Flange DN50 PN16 En 1092-1 Type 05
