Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe
Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe
Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe
Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe
Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe
Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe
Specifications
Brand Name :
LHTi
Model Number :
tube
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
100kg
Price :
$20--$28/pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5Ton per month
Delivery Time :
15 workdays
Packaging Details :
Sponge wrap or plastic bag inside, plywood case as outside,
Grade :
Gr2
Outer diameter :
OD32mm OD38mm
Application :
Industrial,Chemical
Material :
GR1.GR2
Standard :
ASTM B338
Length :
<6000mm,6000mm or according to client's requirement
Description

Heat exchanger tube OD32mm OD38mm ASTM B338 titanium pipe

Product Name: 32mm OD38mm Titanium pipe

Standard: ASTM B338

Material: Gr1, Gr2

Type: Welded/Seamless

Shape: Round

Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc.

Wall Thickness: 0.5-3.0mm

Length: Max 12000mm

Surface: Bright,pickled

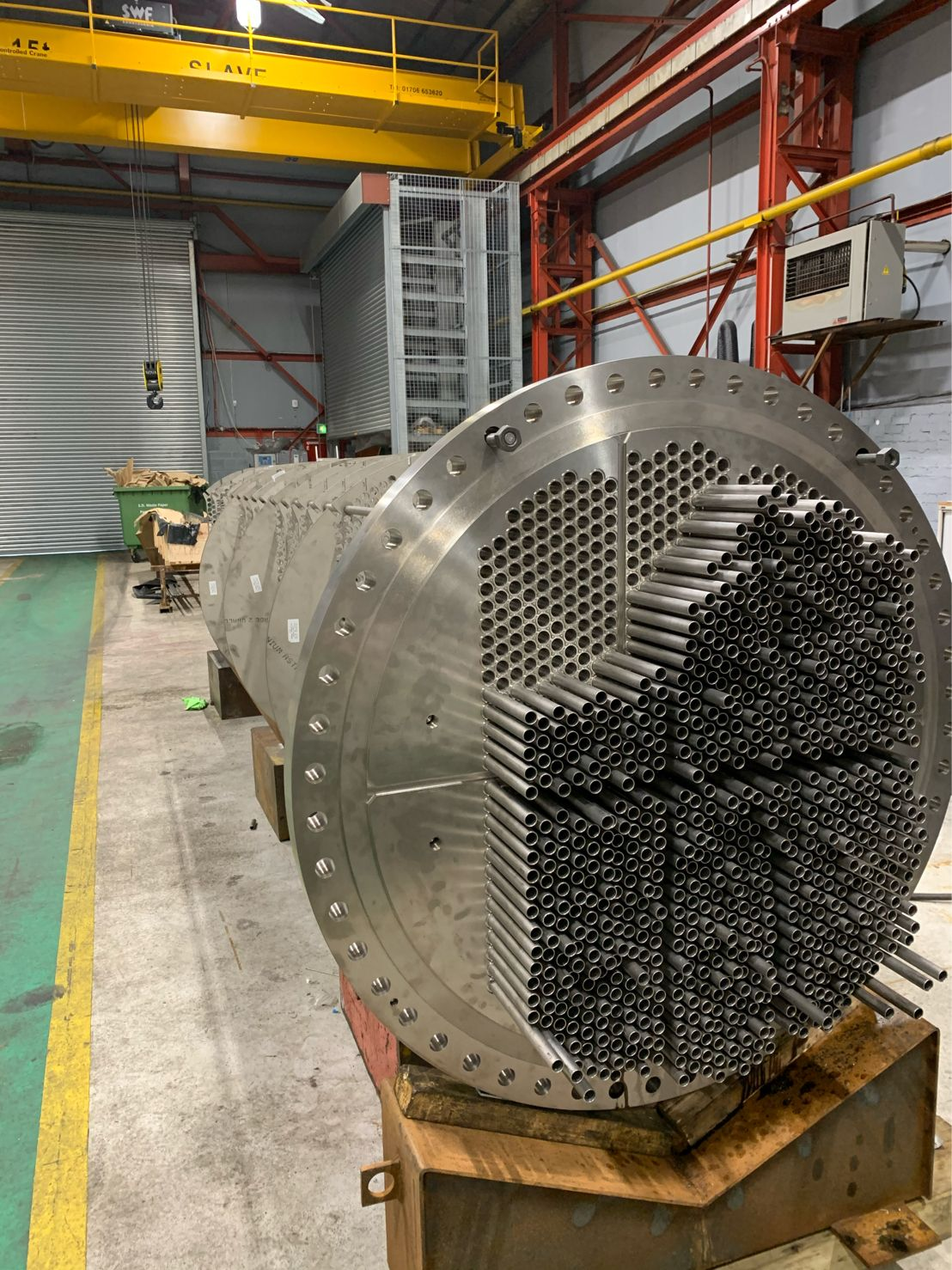

1.Heat exchanger tube application

2.Titanium ally pipe specification

Grade N(%) C(%) H(%) Fe(%) O(%) Ti Other , max
1 ≤0.03 ≤0.08 ≤0.015 ≤0.20 ≤0.18 Bal ≤0.4
2 ≤0.03 ≤0.08 ≤0.015 ≤0.30 ≤0.25 Bal ≤0.4

Grade Tensile Strength(min) Yeild Strength(0.2% offset)) Elongation(%)
ksi MPa Min Max
Ksi Mpa Ksi Mpa
1 35 240 15 140 45 310 ≥24
2 60 400 40 275 65 450 ≥20
Product name Heat exchanger tube Titanium tube /pipe
Material Titanium(Gr2)
Certificate ISO9001:2015, TUV, EN10204.3.1
Standard ASTM B338
Size

OD19mmxWT0.5-0.8mmx3000-12000mm

OD25mmxWT1.0-1.2mmx3000-12000mm

OD32mmxWT1.0-1.2mmx3000-6000mm

OD38mmxWT1.0-1.2mmx3000-6000mm

Or according customer’s requirement.
Technics Rolled
Status Annealed(M)
Type

Seamless Titanium Tube for heat exchanger, Titanium exhaust tube for automobile,

titanium coil tube

Welded Titanium Tube,
Application

1)Power and chemical plant

2)Automotive components

3)sports

4)marine corrosion
Surface

Acid pickling, CNC lathe surface.

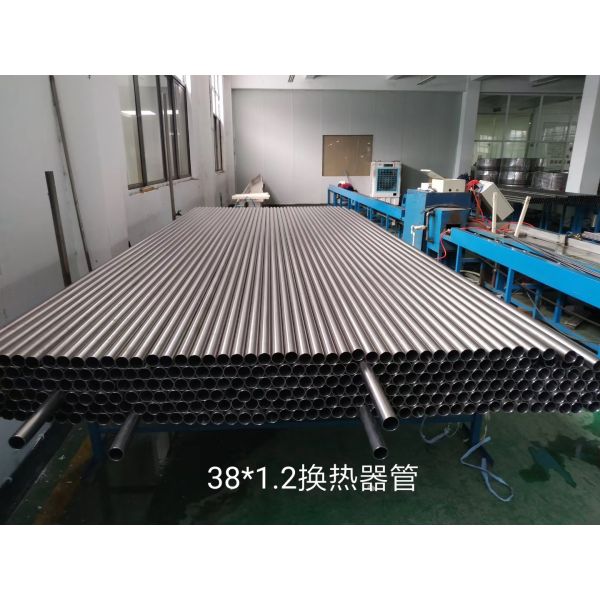

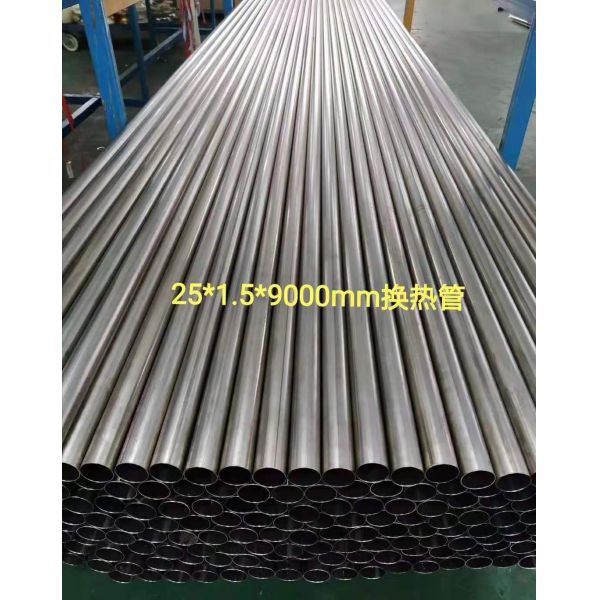

3. Details picture in Workshop

Material

Grade

 Status Processing OD(mm) Wall thickness(mm)
0.5 0.6 0.8 1.0 1.25 1.5 2.0 2.5 3.0 3.5 4.0 4.5

Gr1 Gr2

Gr7 Gr12

Annealed

(M)

 Cold rolled 10-15 ○ ○ ○ ○ ○ ○ ○ — — — — —
﹥15-20 — ○ ○ ○ ○ ○ ○ ○ — — — —
﹥20-30 — ○ ○ ○ ○ ○ ○ ○ — — — —
﹥30-40 — — — — ○ ○ ○ ○ — — — —
﹥40-50 — — — — ○ ○ ○ ○ — — —
﹥50-60 — — — — — ○ ○ ○ ○ ○ — —
﹥60-80 — — — — — — ○ ○ ○ ○ ○ ○
Welded 16 ○ ○ ○ ○ — — — — — — — —
19 ○ ○ ○ ○ ○ — — — — — — —
25,27 ○ ○ ○ ○ ○ ○ — — — — — —
31,32,33 — — ○ ○ ○ ○ ○ — — — — —
38 — — — — — ○ ○ ○ — — — —
50 — — — — — — ○ ○ — — — —
63 — — — — — — ○ ○ — — — —
Welded-rolled 6-10 ○ ○ ○ ○ ○ — — — — — — —
﹥10-15 ○ ○ ○ ○ ○ ○ — — — — — —
﹥15-20 ○ ○ ○ ○ ○ ○ ○ — — — — —
﹥20-25 ○ ○ ○ ○ ○ ○ ○ — — — — —
﹥25-30 ○ ○ ○ ○ ○ ○ ○ — — — — —
Note: "○" indicates the specifications that can be produced



ASTM B338 titanium tube
Used:Heat exchanger, condenser and various pressure vessels
Wall thickness:0.5mm to 4.5mm
Length:3000mm /6000mm and longger to 9000mm
Outside Diameters:10mm to 114mm
Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm

4. Titanium tube Production process

5. ASME SB388 Test as below

We provide following tests for Ti seamless and welded tubes

Chemical Composition Visual Inspect Ultrasonic Testing Current Testing
Flattening Testing Flattening Testing Pneumatic Test Hydrostatic Test
Tensile Yield Hardness Elongation

6. Feel free to contact titanium alloy tube supplier
