Gr2 Titanium Tube 38mm Thk 1.2mm Length 6000mm For Heat Exchanger Equipment
Gr2 Titanium Tube 38mm Thk 1.2mm Length 6000mm For Heat Exchanger Equipment
Gr2 Titanium Tube 38mm Thk 1.2mm Length 6000mm For Heat Exchanger Equipment
Gr2 Titanium Tube 38mm Thk 1.2mm Length 6000mm For Heat Exchanger Equipment
Gr2 Titanium Tube 38mm Thk 1.2mm Length 6000mm For Heat Exchanger Equipment
Gr2 Titanium Tube 38mm Thk 1.2mm Length 6000mm For Heat Exchanger Equipment
Gr2 Titanium Tube 38mm Thk 1.2mm Length 6000mm For Heat Exchanger Equipment
Gr2 Titanium Tube 38mm Thk 1.2mm Length 6000mm For Heat Exchanger Equipment
Specifications
Brand Name :
LHTI
Model Number :
LH-01
Certification :
ISO9001
Place of Origin :
BaoJi Shaanxi China
MOQ :
1kg of each size
Price :
US dollar $23/kg-US dollar $31/kg
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability :
5 tons per month
Delivery Time :
15 working days
Packaging Details :
Each tube with environmental protection bags,outside is standard plywood case
Key words 1 :
ASTM B338 titanium tube
Key words 2 :
high quality GR2 titanium tube
Key words 3 :
titanium tube for Heat Exchanger
Material :
pure titanium
Grade :
Grade 2
Purity :
99.5%min
Length :
Max 12 meter
Surface :
pickling surface
Application :
Heat Exchanger
Production time :
15 working days
Payment term :
T/T,Paypal,Western union etc
Description

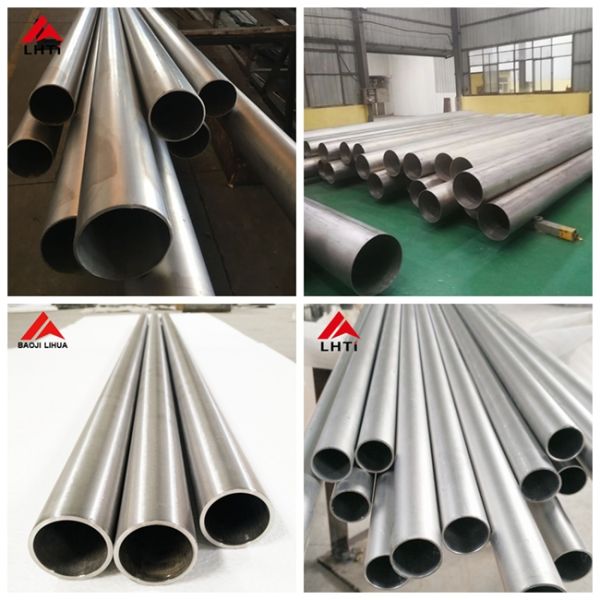

ASTM B338 Gr2 Titanium Seamless Tube 38mm Thk1.2mm with Length 6000mm For Heat Exchanger Equipment

Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.

1.Titanium Tube Information

Name Pure Titanium & Titanium Alloy Tube /Pipe/Tubing
Tube Shape Round Square Flat Coil
Material Gr1,Gr2,Gr7,Gr12.
Standard ASTM B338
Type

Seamless
OD 3-114mm or as customized
Wall Thickness 0.2-50mm or as customized
Length Max 6 meter
End Plain End, Beveled End, Threaded
Certificate EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc
Application

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry

OD (mm) WT (mm) OD (mm) WT (mm) OD (mm) WT (mm)
3.3 0.25 24 0.7 33.4 4.55
4 0.25 25 0.5 38 1.2
4.9 0.3 25 0.7 38.1 1.24
6.35 0.889 25 1.5 40 0.5
12.7 0.8 25 2 45 1.5
15.88 0.5 25 2.2 45 2
15.88 0.71 25.4 0.89 48.26 1.65
19 0.508 25.4 1.07 48.3 5.08
19 0.711 25.4 1.473 50.8 0.7
19 0.9 25.4 2.108 50.8 0.889
19 1.24 26.67 2.11 50.8 0.9
19.05 0.56 26.67 3.912 51 1.5
19.05 0.9 31.75 0.7112 56 0.8
19.05 1.24 31.75 0.889 60.3 1.5
19.05 1.65 31.75 1 60.325 0.889
19.05 3 31.8 0.89 62 2
21.34 2.11 33.4 2.77 89 2
24 0.5 33.4 3.38 114.3 3.05

Chemcial Composition

Element N C H Fe O Al V Mo Ni Pd Ti
Type
GR.1 ≤0.03 ≤0.08 ≤0.015 ≤0.2 ≤0.18 Residual
GR.2 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 Residual
GR.3 ≤0.05 ≤0.08 ≤0.015 ≤0.3 ≤0.35 Residual
GR.7 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 0.12-0.25 Residual
GR.9 ≤0.02 ≤0.08 ≤0.015 ≤0.25 ≤0.15 2.5-3.3 2.0-3.0 Residual
GR.12 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 0.2-0.4 0.6-0.9 Residual

Available dimensions of titanium tube
Outside Diameters:5m to 159mm (seamless tube)
Wall thickness:0.5mm to 7mm
Length:1 meter to 12 meters
Outside Diameters:55m to 914mm (welding tube)
Wall thickness:2mm to 10mm
Length:1 meter to 6 meters

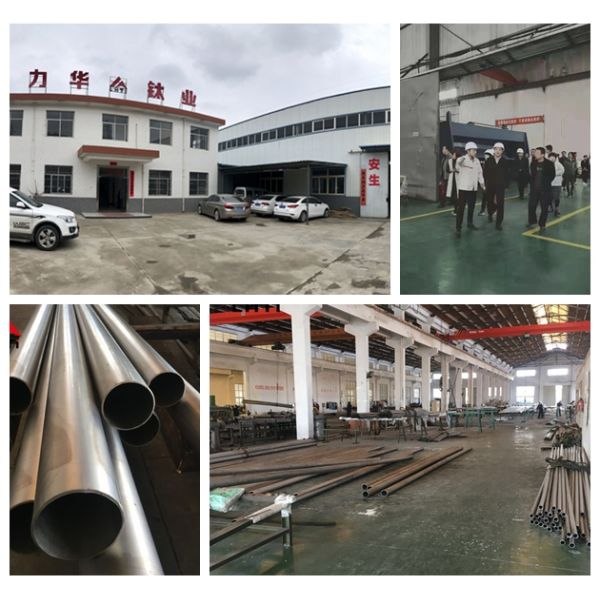

Customer fedback Photo

We are one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.

We still have Titanium flange,titanium bends,titanium Pipe fittings etc.

More details please feel free contact us.
