Milling Pvd Titanium Disc ASTM B338 Forged Annealed Gr1 Gr2 Gr5 High Accuracy
Milling Pvd Titanium Disc ASTM B338 Forged Annealed Gr1 Gr2 Gr5 High Accuracy
Milling Pvd Titanium Disc ASTM B338 Forged Annealed Gr1 Gr2 Gr5 High Accuracy
Milling Pvd Titanium Disc ASTM B338 Forged Annealed Gr1 Gr2 Gr5 High Accuracy
Milling Pvd Titanium Disc ASTM B338 Forged Annealed Gr1 Gr2 Gr5 High Accuracy
Milling Pvd Titanium Disc ASTM B338 Forged Annealed Gr1 Gr2 Gr5 High Accuracy
Specifications
Brand Name :
LHTi
Model Number :
Titanium Disc
Certification :
ISO9001:2015; TUV; SGS;BV
Place of Origin :
China
MOQ :
5 PCS
Price :
USD13.00-38.00 per kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability :
500000 piece per month
Delivery Time :
12-20 work days
Packaging Details :
Plywood box with soft foam for additional protection
Technique :
CNC, forged
Grade :
Gr9 Gr1 Gr2 Gr5 Gr12
Thickness :
8mm-25mm
Shape :
Round shape
Description

Gr9 Gr1 Gr2 Gr5 Gr12 milling pvd titanium disc ASTM B338 forged annealed

1. Product Information

Material: Pure Titanium, Titanium Alloy

Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12, etc.

Features: Superlight, High strength, Low density, Resistant to high or low temperatures, Anti-corrosion and non-reactive to acids.

Applications: Electroplating, Chemical engineering and Petrochemical technology

Size: Diameter30-2000mm, Thickness3.0-300mm as the clients request

2. Physical Properties

Physical Properties
Tensile Strength(min) Yield Strength(min) Elongation(%)
ksi MPa ksi MPa
Grade 1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade 3 65 450 55 380 18
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10
Grade 7 50 345 40 275 20
Grade 9 90 620 70 483 15
Grade 12 70 483 50 345 18
Grade 23 120 828 110 759 10

3. Chemical requirements

N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

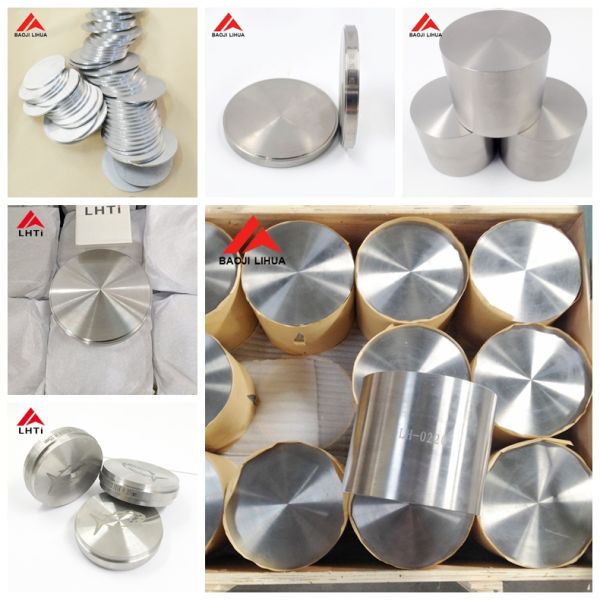

4. Detailed Images

5.Releted Products

6. FAQ

FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.
Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.

As a leading manufacturer of titanium products for over 15 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.

If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.
