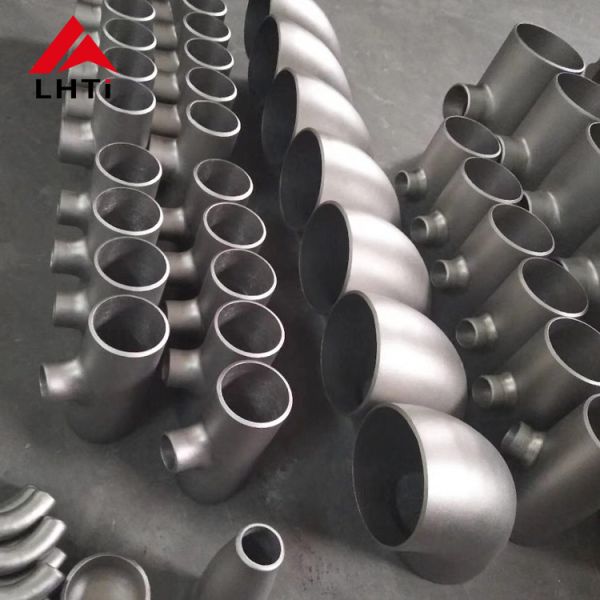

Gr2 Gr7 Gr12 Titanium Elbow TEE Reducer Pipe Fitting Corrosion Resistant
Gr2 Gr7 Gr12 Titanium Elbow TEE Reducer Pipe Fitting Corrosion Resistant
Gr2 Gr7 Gr12 Titanium Elbow TEE Reducer Pipe Fitting Corrosion Resistant
Gr2 Gr7 Gr12 Titanium Elbow TEE Reducer Pipe Fitting Corrosion Resistant
Specifications
Brand Name :
LH-Ti
Model Number :
titanium elbow pipe fitting
Certification :
EN10204.3.1,SGS,TUV,BV
Place of Origin :
Baoji, Shaanxi, China
MOQ :
2 PCS
Price :
$20- $ 200 per PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
10K pcs per month
Delivery Time :
15 - 20 days
Packaging Details :
Standard exporting packaging
Standard :
ASTM B16.9, ASTM B363
Material grade :
Titanium gr2,gr7,gr12
OD :
1/2"-48"
Wall thickness :
3.0-18mm
Type :
Seamless ,welded
Surface :
Pickled, polished
Application :
Chemical industry
Description

ASTM B363 Gr2 Gr7 Gr12 titanium elbow TEE reducer pipe fitting

Product name: Titanium elbow pipe fitting

Type:Elbow, reducer, tee,
Grade: GR2,GR7, GR12

Standard: ANSI / ASME B363, ANSI / ASME B16.9

Specifications(size): DN15-1200 (NPS: 1 / 2-48 inches)

Wall thickness: 3-18mm (Sch 5s to Sch 80s)

Manufacturing process: push, butt welding, polishing, lathe processing, pickling, sanding

Features: high corrosion resistance (tensile strength 686-1176MPA), low density (density 4.51KG / m3),

superior mechanical properties, excellent toughness and corrosion resistance, good plasticity, high melting

point (≈1660 ℃).

Application areas: chemical industry, petroleum , nuclear power industry etc.

Specifications
Nominal diameter DN
Diameter of mm
Grade
3/8
17.1
Gr2/Gr7/gr12
1/2
21.3
Gr2/Gr7/gr12
1
33.4
Gr2/Gr7/gr12
1 1/4
42.2
Gr2/Gr7/gr12
1 1/2
73.0
Gr2/Gr7/gr12
2
60.3
Gr2/Gr7/gr12
2 1/2
73.0
Gr2/Gr7/gr12
3
88.9
Gr2/Gr7/gr12
3 1/2
101.6
Gr2/Gr7/gr12
4
114.3
Gr2/Gr7/gr12
5
141.3
Gr2/Gr7/gr12
6
168.3
Gr2/Gr7/gr12
8
219.1
Gr2/Gr7/gr12
10
273.1
Gr2/Gr7/gr12
12
323.9
Gr2/Gr7/gr12
14
355.6
Gr2/Gr7/gr12
16
406.4
Gr2/Gr7/gr12
18
457.2
Gr2/Gr7/gr12
...
...
Gr2/Gr7/gr12
Specific pipe thickness and diameter can be customized according to

customers' requirements

Titanium in is used in the chemical industry and marine technology,because of its resistance to corrosion.In addition, titanium is also used in plant engineering, medical technology and in thewatch and jewelery industries.

Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Pd Mo Ni Bal
Grade 2 0.2 0.25 0.03 0.1 0.015 - - - Ti
Grade 7 0.3 0.18 0.03 0.08 0.015 0.12-0.25 - -
Grade 12 0.3 0.25 0.03 0.1 0.015 - 0.2-0.4 0.6-0.9 Ti

Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Pure titanium 60 400 40-65 275-650 25
Grade 7 Titanium alloy 60 400 40-65 275-450 20
Grade 12 Titanium alloy 50 345 40 275 25

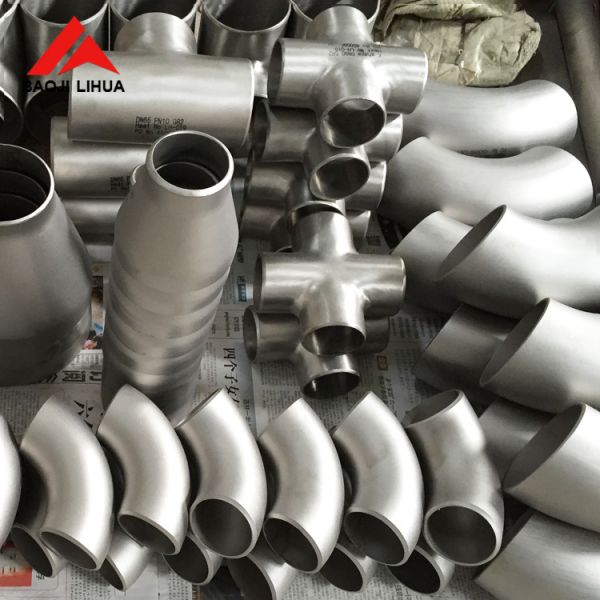

Detailed pictures:

Related titaium pipe fittings

Welcome to contact!
