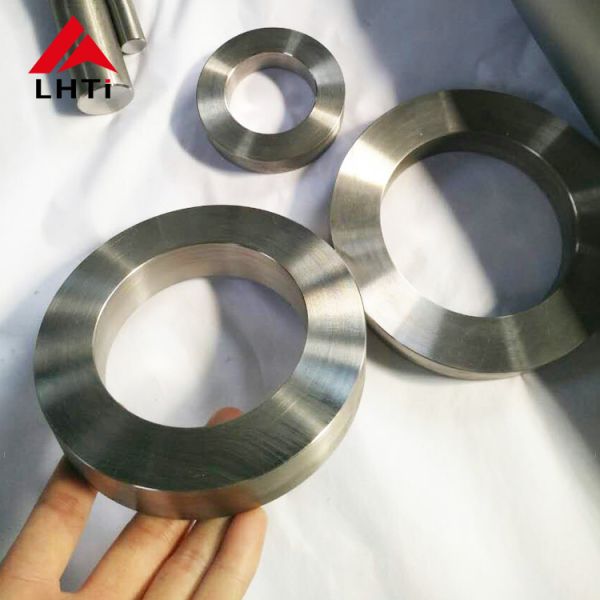

Hot Rolled Titanium Forged Ring Gr5 Gr7 Gr9 Dia 20mm 50mm 130mm Aeronautic Use
Hot Rolled Titanium Forged Ring Gr5 Gr7 Gr9 Dia 20mm 50mm 130mm Aeronautic Use
Hot Rolled Titanium Forged Ring Gr5 Gr7 Gr9 Dia 20mm 50mm 130mm Aeronautic Use
Hot Rolled Titanium Forged Ring Gr5 Gr7 Gr9 Dia 20mm 50mm 130mm Aeronautic Use
Hot Rolled Titanium Forged Ring Gr5 Gr7 Gr9 Dia 20mm 50mm 130mm Aeronautic Use
Hot Rolled Titanium Forged Ring Gr5 Gr7 Gr9 Dia 20mm 50mm 130mm Aeronautic Use
Specifications
Brand Name :
LHTi
Model Number :
Titanium ring
Certification :
ISO9001:2015; TUV; SGS; BV
Place of Origin :
China
MOQ :
3 PCS
Price :
USD13.00-32.00 per kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability :
20000 kg per month
Delivery Time :
12-25 work days
Packaging Details :
Plywood box with soft foam for additional protection against any shipping-induced trauma
Standard :
ASTM B381
Production Process :
Hot Rolled/Annealed
Characteristic 1 :
Excellent corrosion resistance
Application :
Chemical engineering & Petrochemical technology
Description

machine hot rolled titanium forged ring gr2 gr5 gr7 gr9 dia 20mm 50mm 130mm

1. Specifications

A. Standard: ASTM B381

B. Grade: GR1,GR2,GR5,GR7,GR9,GR12

C. Dimensions:

Outside Diameter: 200~400 400~700 700~900 900~1300

Inside Diameter: 100~300 150~500 300~700 400~900

Height: 20~150 30~250 35~300 50~400

2. Application for titanium ring for industry using

1)Aeronautic 2)Medical 3)Chemical engineering & Petrochemical technology

4)Electrolysis 5)Electroplating

3. Chemical Requirements

N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

4. Physical Properties

Physical Properties
Tensile Strength(min) Yield Strength(min) Elongation(%)
ksi MPa ksi MPa
Grade 1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade 3 65 450 55 380 18
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10
Grade 7 50 345 40 275 20
Grade 9 90 620 70 483 15
Grade 12 70 483 50 345 18
Grade 23 120 828 110 759 10

5. Detailed Images

6. Quality Assurance

A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.

B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.

C. Chemical Composition making sure all chemical components can satisfy customer’s demands.

D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.

7. Service

  • We have the stocks so we would provide our clients the short delivery time.
  • Strict control from raw materials till products finished, so the quality is guaranteed.
  • Customized sizes are offered as well as specified sizes and multiple sizes.
  • Strict quality test from raw material to product.
  • Original mill sheet test reports EN 10204.3.1 is available.

8. FAQ

FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.
Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
