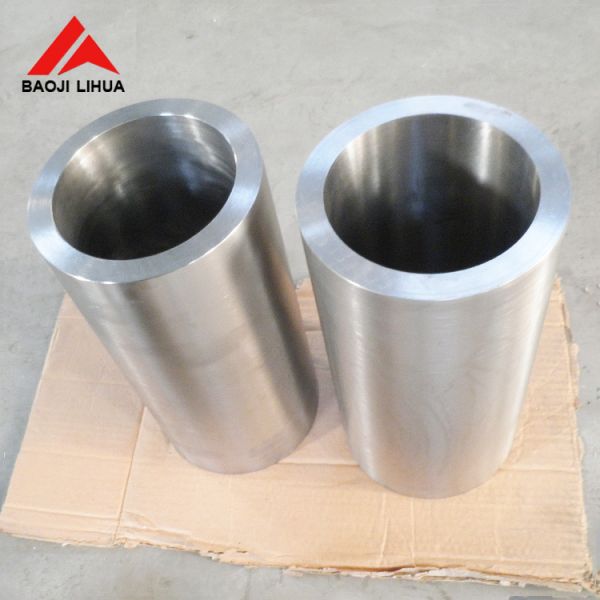

Eco Friendly Forged Titanium Ring Gr2 Gr12 Toxic Free High Precision
Eco Friendly Forged Titanium Ring Gr2 Gr12 Toxic Free High Precision
Eco Friendly Forged Titanium Ring Gr2 Gr12 Toxic Free High Precision
Eco Friendly Forged Titanium Ring Gr2 Gr12 Toxic Free High Precision
Eco Friendly Forged Titanium Ring Gr2 Gr12 Toxic Free High Precision
Eco Friendly Forged Titanium Ring Gr2 Gr12 Toxic Free High Precision
Specifications
Brand Name :
LIHUA
Model Number :
LH-TH
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
1 pieces
Price :
US dollar $15/kg--US dollar $35/kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 kgs per month
Delivery Time :
5-25 work days
Packaging Details :
Plywood box for export
Product name :
titanium forged ring
Material :
Gr2 Gr12
Application :
Chemical industry
Outer diameter :
200-1300mm
Inner diameter :
100-900mm
Height :
35-250mm
Thickness :
40-400mm
Quality control :
Ultrasonic Testing
Description

Wholesale ASTM B381 titanium forgings gr2 gr12 forged titanium ring

1. Why Choose Titanium

High Strength Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears.
Anti-Corrosion Compared with stainless steel, titanium alloy’s corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid.
High-Temperature Resistance Titanium application temperature’s higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃
Low Temperature Resistance Titanium alloys still owns its mechanical properties when working in low or super low temperature conditions. Titanium alloys with low-temperature resisitance and extra low interstitial still possess good ductility, therefore, titanium alloy is sort of good low temperature structural material.
Eco-Friendly Metal Thermal conductivity of titanium is lower than carbon steel or copper, but titanium owns very good corrosion resistance, therefore, titanium thickness can be greatly reduced, also the heat exchange mode is dropwise condensation between titanium and steam. This kind of mode reduces heat transfer resistance, no fouling on titanium surface, which makes titanium thermal conductivity better.
Good Thermal Conductivity Titanium is non-magnetic metal, it can’t be magnetized in large magnetic field, also titanium is toxic-free and compatibility with blood, there, titanium is applied in medical field.

2. Dimensions

Product Name Dimensions(mm) Grade Standards
Outer Diameter Inner Diameter Height Thickness
Titanium Forged Ring 200~400 100~300 35~120 40~150 GR1,GR2, Gr5,Gr7,Gr12 ASTM B381/ASME SB381
400~700 150~500 40~160 40~250
700~900 300~700 50~180 40~300
900~1500 400~900 70~250 40~400

3. Mechanical Properties

ASTM Grade Tensile Strength Yield Strength Elongation %
ksi Mpa ksi Mpa
Gr1 35 240 25 170 24
Gr2 50 345 40 275 20
Gr5 130 895 120 828 10E
Gr7 50 345 40 275 20
Gr12 70 485 50 345 18

4. Detailed Images

5. Related Products

6. Our Services

(1) We have the stocks so we would provide our clients the short delivery time.

(2) Strict control from raw materials till products finished, so the quality is guaranteed.

(3) Customized sizes are offered as well as specified sizes and multiple sizes.

(4) Strict quality test from raw material to product.

(5) Original mill sheet test reports EN 10204.3.1 is available.

7. FAQ

FAQ
Q1.--How can you ensure the product quality?
--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification.
Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?
--Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed.
