Specifications
Brand Name :
LH
Model Number :
LHTS
Certification :
ISO9001:2015; SGS;BV;TUV
Place of Origin :
Baoji ,Shaanxi ,China
MOQ :
5kg
Price :
USD15.5-39.5 per kg
Payment Terms :
D/A, D/P, T/T, Western Union, L/C
Supply Ability :
50000 kgs per month
Delivery Time :
5-20 working days
Packaging Details :
Inside Plastic bag with laber, outside plastic box, then carton box/plywood case
Diameter :
1.0mm 1.6mm 2mm 2.4mm 3mm 3.2mm etc.
Standard :
AWS a5.16/AMSE SFA 5.16
Grade :
Erti-7( Gr7)
Length :
1000mm 2000mm 3000mm, or as customers' requets
Material :
Pure titanium, alloy titanium
Shape :
Straight, Spool, Coil
Product Name :
Titanium Welding wire
Surface :
Pickled, polished
Description

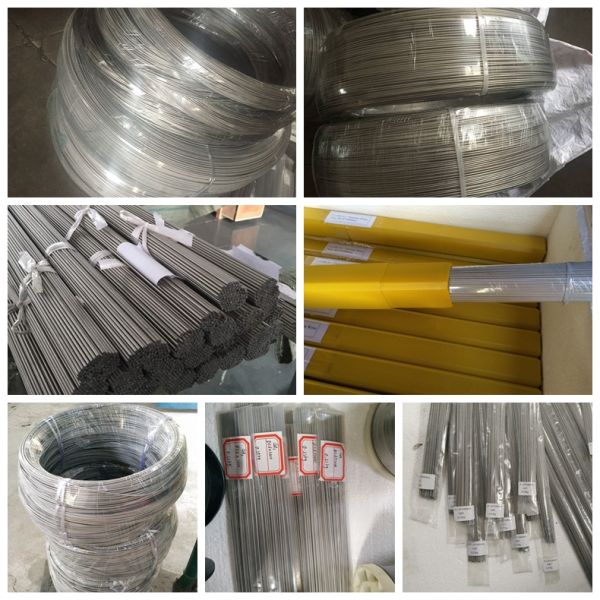

Titanium grade 7 wire Gr7 ErTi-7 Ti-0.2Pd titanium welding wire filler wire

Titanium Wire is slivery metal with excellent properties. Density is 4.54g/cm³ lighter than Steel. But mechanical strength is higher than Steel, 2 times stronger than Aluminium, 5 times stronger than Magnesium. Pure Titanium Wire is high temperature resistance and melting point is 1942K.

High Qualiy Titanium Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on.

Titanium wire can be applyed in different walks of life. Such as military industry, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire etc.

Among different grade titanium, Grade 7 titanium wire is especially very resistant to corrosion. For example, titanium grade 7 is resistant to salt water and iSuitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impact.

Chemical

Composition(%wt)

Ti Pd Fe(max) C(max) N(max) H(max) O(max) The others
Gr7 Remainder 0.12-0.25 0.30 0.08 0.03 0.015 0.25 <=0.4

Physical properties(min) Σb
Tensile Strength
(Mpa)
σr0.2
Yield Strength
(Mpa)
δL0+50mm
Elongation
(%)
ψ
Reduction of area
(%)
400 275 20 /

Diameter range Types
mm inch Coil Spool Straight
>0.78 to 3.25 >0.031 to 0.128 Yes Yes Yes
> 3.25 to 6.00 > 0.128 to 0.236 Yes No Yes
* Diameter Tolerance: +/-0.05mm (+/-0.002”) or finer
* Spools: 100mm – 300mm (3.9” – 12”)
* Straight Length: 300mm - 3000mm (12” – 118”)

Material Testing:
We ,Baoji Lihua ensure that all our materials go through strict quality tests before dispatching them to our clients.
Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test

Why choose us?
Our company established in 2004.More than 14 years of development,we become the leader in north China market in metal material products.We have more than 1000 tons of perennial stock.
What is our customer base?
Our customers are located in more than 80 countries and regions around the world,especially in the Middle East,Southeast Asia,South America,North America,Australia,Eastern Europe,Nordic has long-term stability of customers.
What is our advantage?
We have high quality products and professional services. Our products after SGS,BV,ISO certification. Our salesman has more than five years of experience.
What is the delivery time?
If we have stock, usually the delivery time is about 5-7 working days. If your products need to be produced, the delivery time is about 15 working days or 20 working days, or according to the factory arrangement.
