Forged Titanium Rod Gr2 Gr5 , Round Titanium Block ASTM B381 Long Life Span
Forged Titanium Rod Gr2 Gr5 , Round Titanium Block ASTM B381 Long Life Span
Forged Titanium Rod Gr2 Gr5 , Round Titanium Block ASTM B381 Long Life Span
Forged Titanium Rod Gr2 Gr5 , Round Titanium Block ASTM B381 Long Life Span
Forged Titanium Rod Gr2 Gr5 , Round Titanium Block ASTM B381 Long Life Span
Forged Titanium Rod Gr2 Gr5 , Round Titanium Block ASTM B381 Long Life Span
Forged Titanium Rod Gr2 Gr5 , Round Titanium Block ASTM B381 Long Life Span
Forged Titanium Rod Gr2 Gr5 , Round Titanium Block ASTM B381 Long Life Span
Specifications
Brand Name :
LHTI
Model Number :
LH-11
Certification :
ISO9001
Place of Origin :
Baoji Shaanxi China
MOQ :
5kg,accept sample test
Price :
US dollar $23 /kg--US dollar $35/kg
Payment Terms :
L/C, D/P, T/T, Western Union,according your requirment
Supply Ability :
50000 tons per month
Delivery Time :
5-8 days
Packaging Details :
Standard plywood case package in outside.Internal fill the pearl cotton or according your requirment
Product name :
High quality ASTM B381 titanium forged bar Gr2 Gr5 Titanium round block price
Material :
titanium
Grade :
Gr2 and Gr5
Hot sale size :
3mm---200mm etc
Standard :
ASTM B381
Shape :
round,square,hexagon bar
Length :
Max 3000mm or as your requirment
Description

High quality ASTM B381 titanium forged bar Gr2 Gr5 Titanium round block price

Diameter:Ø 7.0mm—ø230mm

Length: 300mm---6000mm

Or according customer’s requirement.

1) Chemical engineering & Petrochemical technology

2) Industrial

Tensile strength

grade Tensile strength(min) Yeild strength(min) Elongation (%)
ksi MPa ksi MPa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 438 15
GR12 70 438 50 345 18

Chemical composition

ASTM B348 C O N H Fe Other
Grade-1 0.03 0.03-0.10 0.012 0.005 0.08
Grade-2 0.03 0.08-0.16 0.015 0.008 0.12
Grade-3 0.03 0.13-0.20 0.02 0.008 0.16
Grade-4 0.03 0.18-0.32 0.025 0.008 0.25
Grade-5 0.05 0.12-0.20 0.03 0.015 0.22 Al 5.5-6.5
V 3.5-5.5
Grade-7 0.03 0.08-0.16 0.015 0.008 0.12 Pd 0.12-0.25
Grade-9 0.03 0.08-0.16 0.022 0.008 0.25
Grade-12 0.03 0.08-0.16 0.015 0.008 0.15 Mo 0.6-0.9
Ni 0.2-0.4
Grade-5 ELI 0.03 0.03-0.11 0.012 0.005 0.2 Al 5.5-6.5
V 3.5-5.5

Titanium bar in stock(Common size) as below

Dia=2mm 2.5mm 3.0mm 3.5mm 4.0mm 5.0mm 6.0mm 7.0mm 8mm 9mm 10mm
Dia=12mm 15mm 16mm 18mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm
Dia=60mm 65mm 70mm 75mm 80mm 85mm 90mm 100mm 105mm 110mm 120mm

TITANIUM ROUND BAR
Diameter (Inches) Appx. Weight Per Foot Diameter (Inches) Appx. Weight Per Foot
0.1875 .05 3.25 16.22
0.25 .10 3.5 18.82
0.3125 .15 3.75 21.60
0.375 .22 4.0 24.58
0.4375 .29 4.25 27.74
0.5 .38 4.5 31.10
0.5625 .48 4.75 34.01
0.625 .60 5.0 37.68
0.6875 .71 5.25 41.54
0.75 .86 5.5 46.46
0.8125 .99 5.75 49.83
0.875 1.18 6.0 55.30
0.9375 1.32 6.25 58.88
1.0 1.54 6.5 64.80
1.125 1.94 7.0 75.30
1.25 2.40 7.5 86.40
1.375 2.90 8.0 98.30
1.5 3.46 8.25 104.60
1.625 3.98 8.5 111.00
1.750 4.62 9.0 124.40
1.875 5.40 9.5 138.60
2.0 6.14 10.0 153.60
2.25 7.78 11.0 185.90
2.375 8.50 12.0 212.20
2.5 9.60 13.0 259.60
2.625 10.58 14.0 301.10
2.75 11.62 15.0 351.40
3.0 13.82 16.0 385.90

Process

Raw material---Profiling--Lathe---Swaging--Stretching / Rolling---Polish---Bar

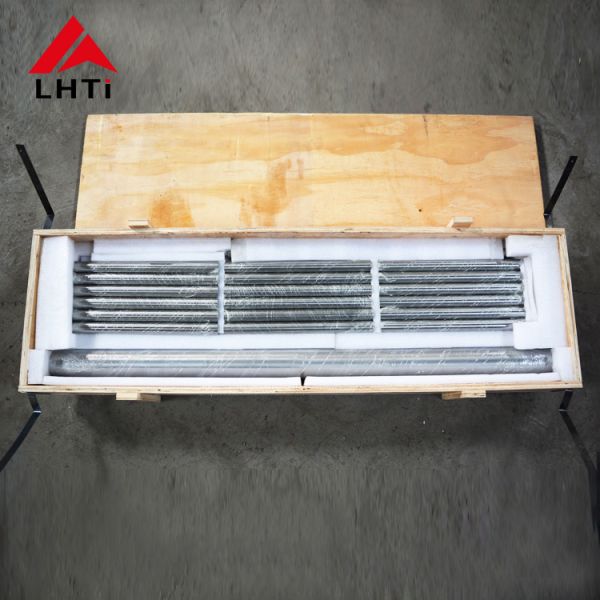

---1. Wrapping each titanium rods, prevent damage surface of titanium rods in the long-distance transportation

---2. Inside the box stuffed with pearl cotton and sponge.To prevent the rod shaking in the long-distance transportation.

---3. outside is standard plywood case.

--- Accept customer requirment

Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.

We still have more,If you need,Catalog will be send.
