Customized Solid Titanium Rod Gr1 Gr5 Gr7 Good Thermal Conductivity Low Density
Customized Solid Titanium Rod Gr1 Gr5 Gr7 Good Thermal Conductivity Low Density
Customized Solid Titanium Rod Gr1 Gr5 Gr7 Good Thermal Conductivity Low Density
Customized Solid Titanium Rod Gr1 Gr5 Gr7 Good Thermal Conductivity Low Density
Customized Solid Titanium Rod Gr1 Gr5 Gr7 Good Thermal Conductivity Low Density
Customized Solid Titanium Rod Gr1 Gr5 Gr7 Good Thermal Conductivity Low Density
Specifications
Brand Name :
LIHUA
Model Number :
LH-TB
Certification :
ISO9001, TUV etc.
Place of Origin :
Baoji, China
MOQ :
10kg
Price :
US dollar $15/kg--US dollar $30/kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 kgs per month
Delivery Time :
5-15 work days
Packaging Details :
Plywood box for export
Product name :
solid titanium rod
Standard :
ASTM B348
Material :
gr1, gr2, gr5, gr7
Application :
industrial & medical use
Shape :
round
Diameter :
6-350mm
Length :
As per your requirements
Surface :
Bright
Description

Customized gr1 gr2 gr5 gr7 solid titanium bar / rod price per kg

1. Product Information of Titanium Rod

Grade: GR1, GR2, GR5, GR7, GR12, GR23, GR4 ELI, GR5 ELI etc.

Standard: ASTM B348, ASME SB348, ASTM F67, ASTM F136

Application: Industrial & Medical use

Shape: Round, Square, Hex

Diameter: 6-350mm

Length: Max 6000mm

Surface: Polishing, Pickling

Advantages:

  • Precision Manufacturing
  • Light in weight
  • Excellent corrosion resistance
  • High Strength
  • Excellent strength to weight ratio
  • High temperature resistance
  • Low temperature resistance
  • Good thermal conductivity
  • Low density
  • Long service life

Grade Technology Standard Specification(mm)

Gr1.Gr2.Gr3.Gr4.Gr5.Gr7.

Gr9.Gr12.

 Forged ASTM B348 F136 F67 Φ(60~350)X≤4000
Rolled Φ(6~100)X≤6000

2. Chemical Requirements of Titanium Rod

N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

3. Tensile Requirements of Titanium Rod

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 18

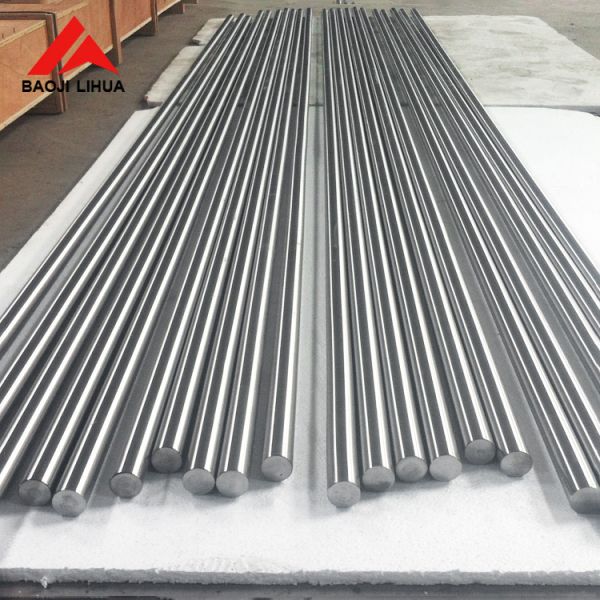

4. Detailed Images of Titanium Rod

5. Our Company

  • As a leading manufacturer & trader of titanium rod for over 16 years, Baoji Lihua has exported our titanium rod to many countries, including the US, Ukraine, Romania, Italy and Chile etc. The quality of our products is widely recognized.
  • We strictly abide by ASTM B348 during the production process of titanium rod to ensure the precision.
  • Customized products are always welcomed.
  • We know the market very well so our price will make you more competitive.
  • We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.

6. Our Services

(1) We have the stocks so we would provide our clients the short delivery time.

(2) Strict control from raw materials till products finished, so the quality is guaranteed.

(3) Customized sizes are offered as well as specified sizes and multiple sizes.

(4) Strict quality test from raw material to product.

(5) Original mill sheet test reports EN 10204.3.1 is available.
