Grade 2 Grade 5 Titanium Round Bar
Grade 2 Grade 5 Titanium Round Bar
Grade 2 Grade 5 Titanium Round Bar
Grade 2 Grade 5 Titanium Round Bar
Grade 2 Grade 5 Titanium Round Bar
Grade 2 Grade 5 Titanium Round Bar
Grade 2 Grade 5 Titanium Round Bar
Grade 2 Grade 5 Titanium Round Bar
Specifications
Brand Name :
LHTi
Model Number :
LH-Ti02
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1kg
Price :
19.5 USD-68.5 USD/KG
Payment Terms :
T/T, Western Union,D/A, D/P, L/C etc.
Supply Ability :
1000 tons/month
Delivery Time :
5-10 working days
Packaging Details :
Standard exporting packing: protecting foam and EPE inside and plywood case outside. Or as the clients' request
Grade :
Titanium Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni)) etc.
Diameter :
5mm~350mm
Length :
500-3000MM, or as customer's request
Standard :
ASTM B348 , ASTM F136 , ASTM F67 , AMS4928
Surface :
Polished , Bright
Shape :
Round , Square /flat, Hexagonal, Rectangle
Situation :
Annealed
MOQ :
1kg
Description

ASTM B348 titanium rod bar grade 2 grade 5 grade 7 grade 9 price per kg in stock

Name Titanium Bar/Rod
Standard ASTM B348,ASTM F136,ASTM F67,AMS4928
Grade

Titanium Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),

Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni))etc.
Diameter 5mm~350mm
Certificates ISO9001:2008. The third test report is available,such as SGS,TUV,BV
Shape Round bar, Square /flat bar, Hexagonal bar, Rectangle bar
Techniques Hot or cold rolling forging or annealed
Delivery time 5-10 working days
Application Industrial, Medical, Salt-making, Petrochemical, Metallurgy, Electronics, Chemical

In order to ensure the service life of equipment products, we must use tcorrectly, and so is the titanium rod. Now, let Baoji

Lihua titanium introduce the precautions for using titanium rods:

First, when using titanium rods, pay attention to avoid scratches and collisions, and also pay attention to dust and oil.

Second, the working pressure during use must not exceed the rated working pressure, otherwise various problems will also

occur.

In normal use, there should be at least 3-5 minutes of low-pressure start-up time, the relative pressure difference should be

controlled below 0.5Mpa, and then the working pressure should be gradually adjusted to normal needs (higher pressure does

not exceed 0.4Mpa).

4. After the product runs for a certain period of time, the pressure may increase due to the clogging of the filter element, and

the flow rate will decrease. It needs to be recoiled or rewashed. The regeneration cycle depends on the rated pressure and flow.

1. Available Size and standards.

Grade Technology Standard Specification(mm)

Gr1.Gr2.Gr4.Gr5.Gr7.

Gr9.Gr12. Gr5 Eli

 Forging ASTM B348 F136 F67 Φ(60~350)X≤4000
Rolling Φ(6~100)X≤6000

2.Tolerance of diameter

Diameter(mm) h7 h8 h9 h10 h11 h12
Tolerance precision (um)
3Max 10 14 25 40 60 100
3~6 12 18 30 48 75 120
6~10 15 22 36 58 90 150
10~18 18 27 43 70 110 180
18~30 21 33 52 84 130 210
30~50 25 39 62 100 160 250
50~80m 30 46 74 120 190 300
80~120 35 54 87 140 220 350
120~180 40 63 100 160 250 400
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

Related products

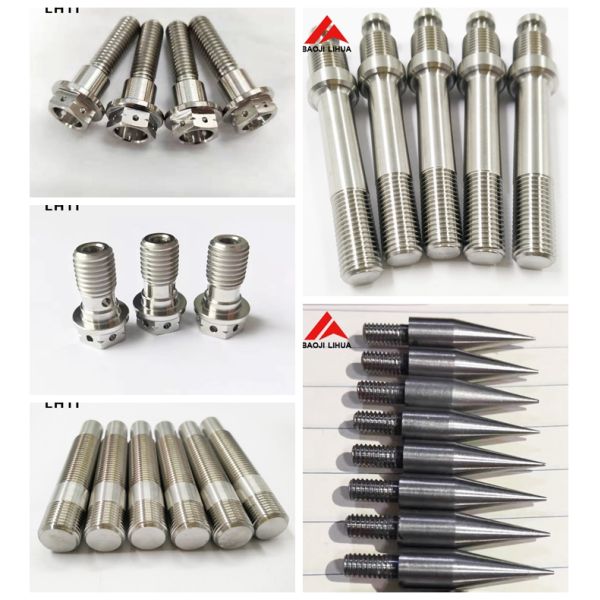

Titanium bolts and titanium machined parts(machind from titanium bar/rod)

Packaging & Shipping

Company Information

Baoji Lihua ,a titanium manufacture, with over 15 years export experience.

Our advantagerous products is: titanium bar, titanium wire, titanium flange, titanium forging.

Welcome to contact!
