Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape
Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape
Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape
Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape
Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape
Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape
Specifications
Brand Name :
LHTi
Model Number :
Titanium Sheet
Certification :
ISO9001:2015;
Place of Origin :
China
MOQ :
100 kg
Price :
USD15-18 per kg
Payment Terms :
T/T, MoneyGram, L/C, Western Union
Supply Ability :
10 tons per month
Delivery Time :
5-15 work days
Packaging Details :
Plywood box with soft foam for additional protection
Porudct name :
0.5mm 0.8mm 1.0mm ASTM B265 Gr1 gr2 Pure titanium sheet price per kg
Standard :
ASTM/ ASME B265
Material Grade :
Titanium gr1，gr2
Technology :
cold rolled,
Situation :
Annealed
Shape :
Straight
Surface :
Polished, Acid Washing
Application :
Chemicals, machinery and equipment etc.
Description

0.5mm 0.8mm 1.0mm ASTM B265 Gr1 gr2 Pure titanium sheet price per kg

Product mame Titanium sheet
Material Titanium
Grade gr1/gr2
Standard ASTM B265, ASME SB265
Thickness

0.5mm 0.8mm 1.0mm
Process cold rolled
Status M, annealed
Surface pickling, polished
Third-party testing SGS, TUV, BV etc.
application

chemicals, machinery and equipment, electroplating

equipment, environmental protection equipment, electronics, watches and clocks, glasses,

jewelry, sporting goods, golf and precision processing industries

Quality supervision: starting from the sponge titanium composition inspection, the upper,

middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic

non-destructive inspection is performed to ensure the quality of the ingot. Physical performance

test to ensure product performance.

Specification

Specification of Titanium foil/Titanium sheet/Titanium plate
Thickness(mm) Width(mm) Length(mm)
Titanium foil 0.03-0.5 30-150 30-200
Titanium sheet 0.5-5 30-1000 30-2000
Titanium plate 5-60 200-2800 1000-6000

Chemical requirements

N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

Titanium sheet in stock:

Thickness(0.5mm/0.8mm/1.0mm)*Width≤1000mm*L≤2000mm

Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm

Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm

Thickness(3.0mm/3.5mm/4.0mm)*Width≤2000mm*L≤6000mm

Tensile requirements

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 18

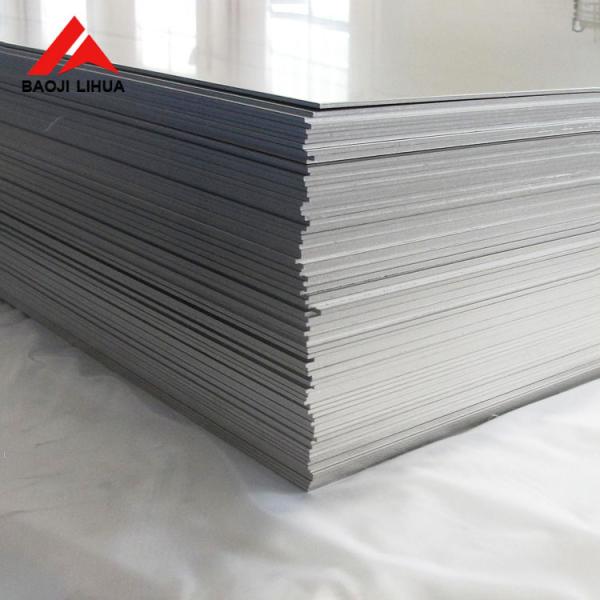

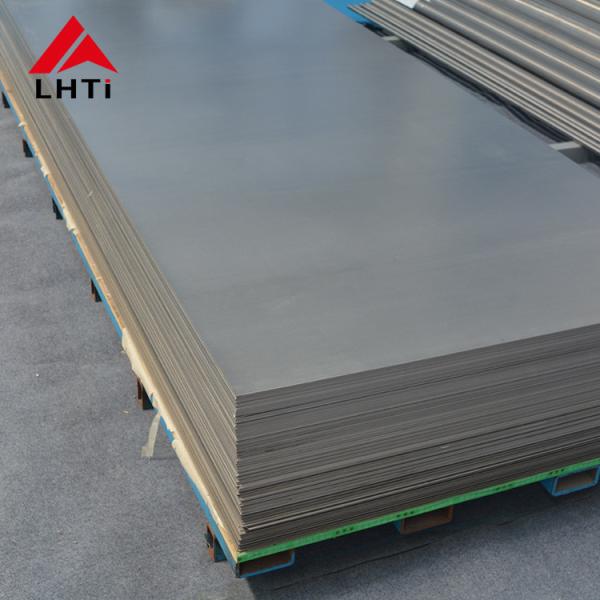

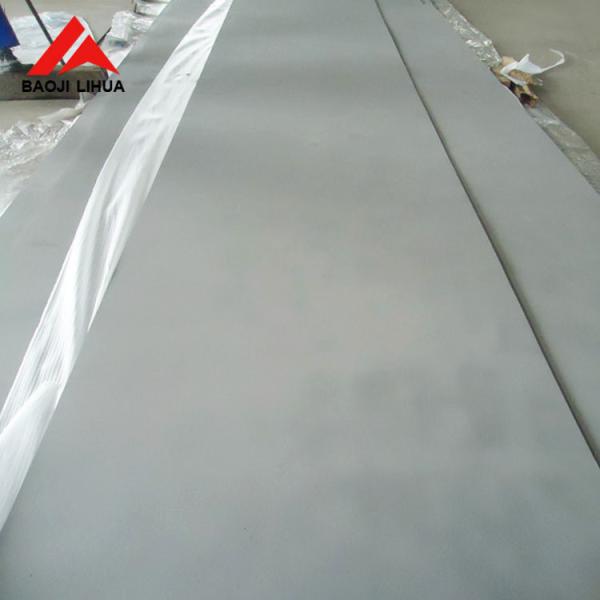

Detailed pictures:

Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape

Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape

Packaging and shipping:

Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce

collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance

transportation.

Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier

company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.

Gr1 Pure Titanium Grade 2 Plate 0.5mm 0.8mm 1.0mm Straight Shape

We understand that your business depends on getting the right materials in the correct size, finish,

quantity and quality. We make it our mission to provide you with exactly what you need at the lowest

possible price.Our sole purpose of providing quality products and top notched personal service.

Contact me soon!
