Titanium Alloy Plate 1.0mm 1.2mm For Anodizing Jig As A Hanger
Titanium Alloy Plate 1.0mm 1.2mm For Anodizing Jig As A Hanger
Titanium Alloy Plate 1.0mm 1.2mm For Anodizing Jig As A Hanger
Titanium Alloy Plate 1.0mm 1.2mm For Anodizing Jig As A Hanger
Titanium Alloy Plate 1.0mm 1.2mm For Anodizing Jig As A Hanger
Titanium Alloy Plate 1.0mm 1.2mm For Anodizing Jig As A Hanger
Specifications
Brand Name :
LHTi
Model Number :
Gr2
Certification :
ISO9001:2015; TUV; SGS ;BV
Place of Origin :
Baoji, Shaaxi, China
MOQ :
100 kgs
Price :
USD12- USD14per kg
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
1000 tons per month
Delivery Time :
7-20 work days
Packaging Details :
Standard export packaging: soft foam protection inside, plywood outside
Porudct name :
Titanium sheet/ titanium plate
Standard :
ASME/ASTM B265
Material Grade :
pure titanium (Grade 2 titanium)
Technology :
Cold rolled
Situation :
Annealed
Shape :
Straight
Surface :
Pickled , Polished
Application :
Chemical industry, Aerospace etc.
character :
flexible
Description

Titanium alloy plate 1.0mm 1.2mm for anodizing jig as a hanger

1. Titanium alloy plate specification

Product mame Titanium alloy plate sheet
Material Titanium
Grade gr2
Standard ASTM B265, ASME SB265
Thickness 1.0mm
Process cold rolled
Status M, annealed
Surface pickling, polished
Third-party testing SGS, TUV, BV etc.
application

chemicals, machinery and equipment, electroplating

equipment, environmental protection equipment, electronics, watches and clocks, glasses,

jewelry, sporting goods, golf and precision processing industries

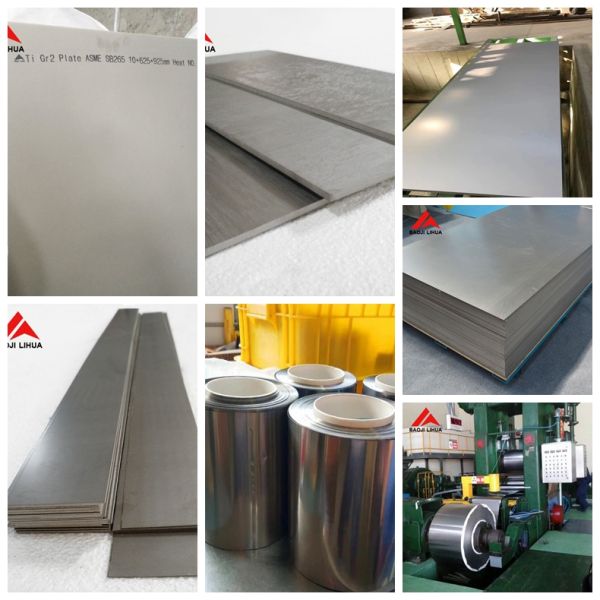

2.Titanium alloy plates pictures

N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

3.Titanium sheet in stock:

Thickness(0.5mm/0.8mm/1.0mm)*Width≤1000mm*L≤2000mm

Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm

Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm

Thickness(3.0mm/3.5mm/4.0mm)*Width≤2000mm*L≤6000mm

Tensile requirements

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 18

4.Baoji Lihua titanium alloy plate Mechanical Equipment

Baoji Lihua was founded in 2004 year, with more than 15 years of experience in the production and export of titanium plates. We have our own factory and production equipment, so can guarantee the quality and delivery time . In addition to domestic sales, all of our titanium plates are strictly produced in international standard, such as ASTM B265, ASTM B4911. We choose class 1 titanium sponge as the raw material ,and the titanium plate we produced both mechanical properties and chemical composition can meet export standards.

Hot Tags: Titanium alloy plate , 1mm titanium plate ,1.2mm titanium plate ,astm b265 titanium plate, Grade 1 Titanium Plate, Titanium titanium and titanium alloy plates
