ASTM B338 Titanium U Tube For Heat Exchanger 1.0mm / 1.2mm
ASTM B338 Titanium U Tube For Heat Exchanger 1.0mm / 1.2mm
ASTM B338 Titanium U Tube For Heat Exchanger 1.0mm / 1.2mm
ASTM B338 Titanium U Tube For Heat Exchanger 1.0mm / 1.2mm
ASTM B338 Titanium U Tube For Heat Exchanger 1.0mm / 1.2mm
ASTM B338 Titanium U Tube For Heat Exchanger 1.0mm / 1.2mm
Specifications
Brand Name :
LHTI
Model Number :
LH-01
Certification :
ISO9001
Place of Origin :
BaoJi Shaanxi China
MOQ :
If in stock, sample is available; If not in stock,200kgs of each size
Price :
US dollar $23.5/kg--US dollar $35.9./kg
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability :
5 tons per month
Delivery Time :
15-20 working days
Packaging Details :
Each tube with environmental protection bags,outside is standard plywood case
Standard :
ASTM B338
Grade :
Gr2 Gr7 Gr12
OD :
12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm
Wall thickness :
1.0mm/1.2mm or as customized
Type :
U tube
Purity :
99.5%min
Length :
Max 16 meter
Surface :
Pickling surface
Application :
Heat Exchanger
Production time :
15 working days
Payment term :
T/T,Paypal,Western union etc
Key words :
Titanium seamless tube
Description

Titanium U-tube Heat Exchanger

Titanium U tubes are increasingly used in various occasions. A common titanium grinding product is titanium tube. Because of its superior corrosion resistance and strength weight ratio, titanium U tube is used in various products. The development of many different alloys has expanded the application of titanium in industry, chemical processing and power generation.

Standard ASTM B338, ASME SB338
Regular Grade Grade 1 Grade 2
Outer Diameter 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc.
Wall thickness 0.9mm/1.0mm/1.2mm/1.5mm
Length 3000 - 6000mm or other economical lengths
Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Form Straight titanium Pipe, Coiled titanium tube
Type Seamless, ERW, EFW, Welded, Fabricated
End Plain End, Beveled End, Treaded
Marking Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.)
Application Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger
Value Added Service

Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled

Bending, Machining Etc.
Test Certificate Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2

U-shaped tube heat exchanger, is a shell and tube heat exchanger, it is composed of tube-plate, shell, tube bundle and other parts.

Under the same diameter, the heat transfer area of u-tube heat exchanger is the largest. It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and lowest cost under high temperature and high pressure; U-tube heat exchanger has only one tube plate, good thermal compensation performance, strong bearing capacity, suitable for high temperature and high pressure operating conditions.

Name: Titanium U-tube heat exchanger

Material: Gr1 Gr2 Gr7 Gr12 titanium

Structure: tube box, barrel, head, heat exchange tube, etc

Advantages: simple structure, low cost

Disadvantages: High rejection rate

Application: Suitable for high temperature and high pressure corrosive fluid

Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n

Σb

(Mpa)

σr0.2

(Mpa)
No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140
Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275
Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

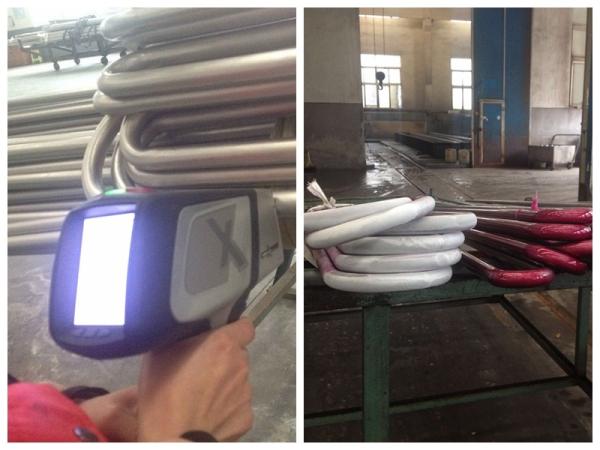

Detailed images:

The other products we can manufacture:

Packing and shipping:
