JIS Broaching Titanium Bubble Cap Tray Cnc Distillation Column Internals
JIS Broaching Titanium Bubble Cap Tray Cnc Distillation Column Internals
JIS Broaching Titanium Bubble Cap Tray Cnc Distillation Column Internals
JIS Broaching Titanium Bubble Cap Tray Cnc Distillation Column Internals
Specifications
Brand Name :
LHTi
Model Number :
LH-Ti2
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1 pieces
Payment Terms :
L/C,D/P, T/T etc.
Supply Ability :
20000 pieces per month
Delivery Time :
15-30 Days
Packaging Details :
Standard export packing,plywood case outside
Product name :
column internals metal tower tray for distillation tower
Material :
Titanium Nickel zirconium
Tubesheet Diameter :
MaxΦ8600mm
Hole diameter range :
1.5mm---238mm
Hole depth :
Max1100mm
Quality test :
UT,PT
Third-party testing :
Available
Description

column internals metal tower tray for distillation tower

Bubble Cap Tray is a kind of tower internals with many advantages such as low pressure drop, big surface area , high mechanical strength and so on. Bubble Cap Tray is widely used to increase gas-liquid contact area to improve mass transfer efficiency.

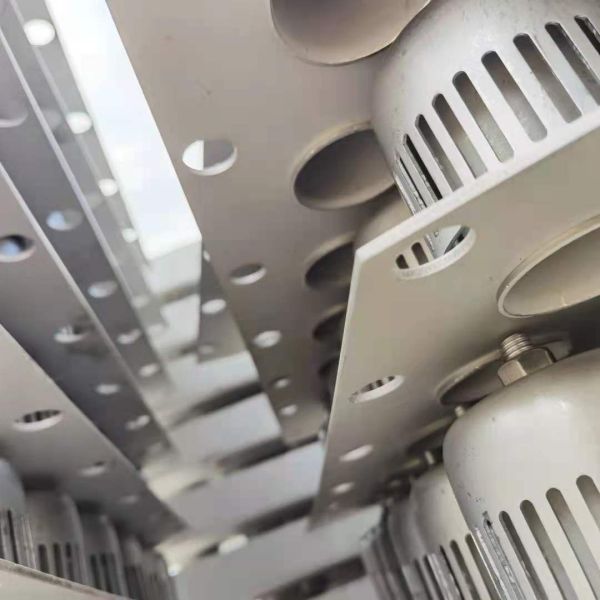

Bubble Cap Tray has riser or chimney fitted over each hole, and a cap that covers the riser. The cap is mounted so that there is a space between riser and cap to allow the passage of vapour. Vapour rises through the chimney and is directed downward by the cap, finally discharging through slots in the cap, and finally bubbling through the liquid on the tray.

You can choose single distill tower to save money, also can choose 5 distill column to get good quality alcohol(ethanol).

Item Tower tray for distillation tower
CNC Machining or Not Cnc Machining
Type

Broaching, DRILLING, Etching / Chemical Machining,

Laser Machining, Milling, Other Machining Services, Turning,

Wire EDM, Rapid Prototyping
Material Capabilities Titanium nickel
Micro Machining or Not Not Micro Machining
Place of Origin China
ShaanXi
Model Number LH-2021-02-03
Brand Name LHTi
Material Titanium
Size Customized Size

Detailed images:

Application
Bubble-Cap trays have numerous applications in refinery and gas plants.
Model
Material Type
1
2
Norminal Dia. Dg
80
100
150
80
100
150
Slot Height
H
1
20
20
35
20
20
35
2
25
25
-
25
25
-
3
30
32
-
30
32
-
Slot Breadth b1
4
5
R4/13.5
4
5
R4/13.5
Slot Number n
30
32
28
30
32
28
Slot Pitch f
8.38
9.82
17.7
8.38
9.82
17.7
Riser Pore Dia. d1
55
68
106
55
68
106

Related products :

Related Products

Sieve Trays

100% Response Rate

Floating Valve Trays

100% Response Rate

Fixed Valve Trays

100% Response Rate

About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---

It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in

manufacturing titanium products.With more than 14 years export Experience, our products was

sold to Asia, Europe, North America in large quantity.In addition to provide preferential price

for customers, we pay much attention to quality, and have a good after-sales service.

All products we produced are based on the standard: Amecian standard,German standard ,

Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is

certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,

LR'S ,TUV and other international inspection agency .Third party test is available.

Packing and shipping:

We suggest you pack them in plywood cases. Because we have to consider safety and freight.

In plywood cases, we usually put the product in a plastic bag, which is filled with protective pearl wool or foam film to prevent the product from being scratched.

The most important thing is that we have to make sure that the product is safe in transit and that you have to pay less for shipping.

Packing&Shipping
FAQ
Q1.What strength does the factory have? A:The world's most advanced 5g + intelligent digital chemical factory has been established, which is the first industrial 4.0 operation mode in the field of mass transfer in the world. Q2.what's your Storage capacity of warehouse?
A:We have built the first intelligent three-dimensional warehouse in the industry, with a capacity of 80000 cubic meters.A total of 2466 locations, it can meet 40 days no delivery.
Q3.What is the production capacity of the factory? A:The annual production capacity is 300000 cubic meters.
Q4. How many people are there in the factory?
A:There are 300 employees in total.
Q5.What is the company's philosophy? A:Excellent in quality, loyal to integrity.

Welcome to contact!
