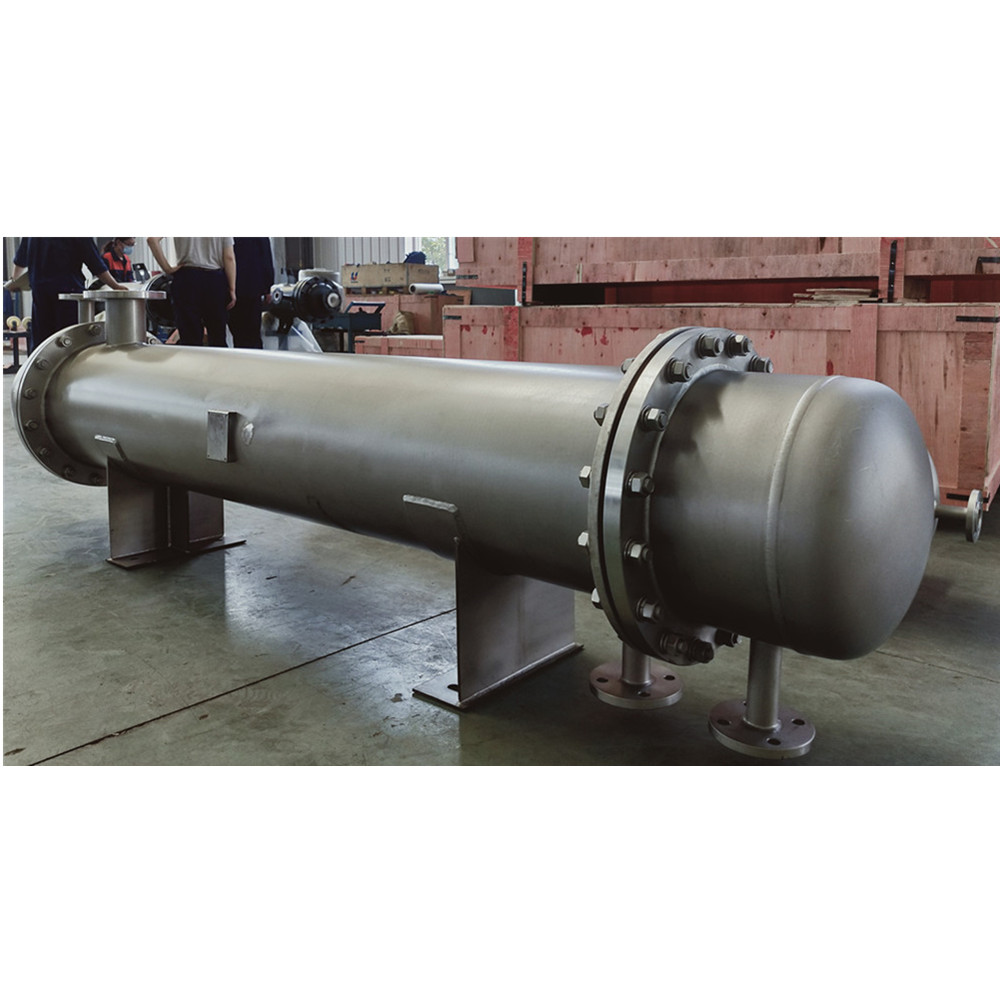

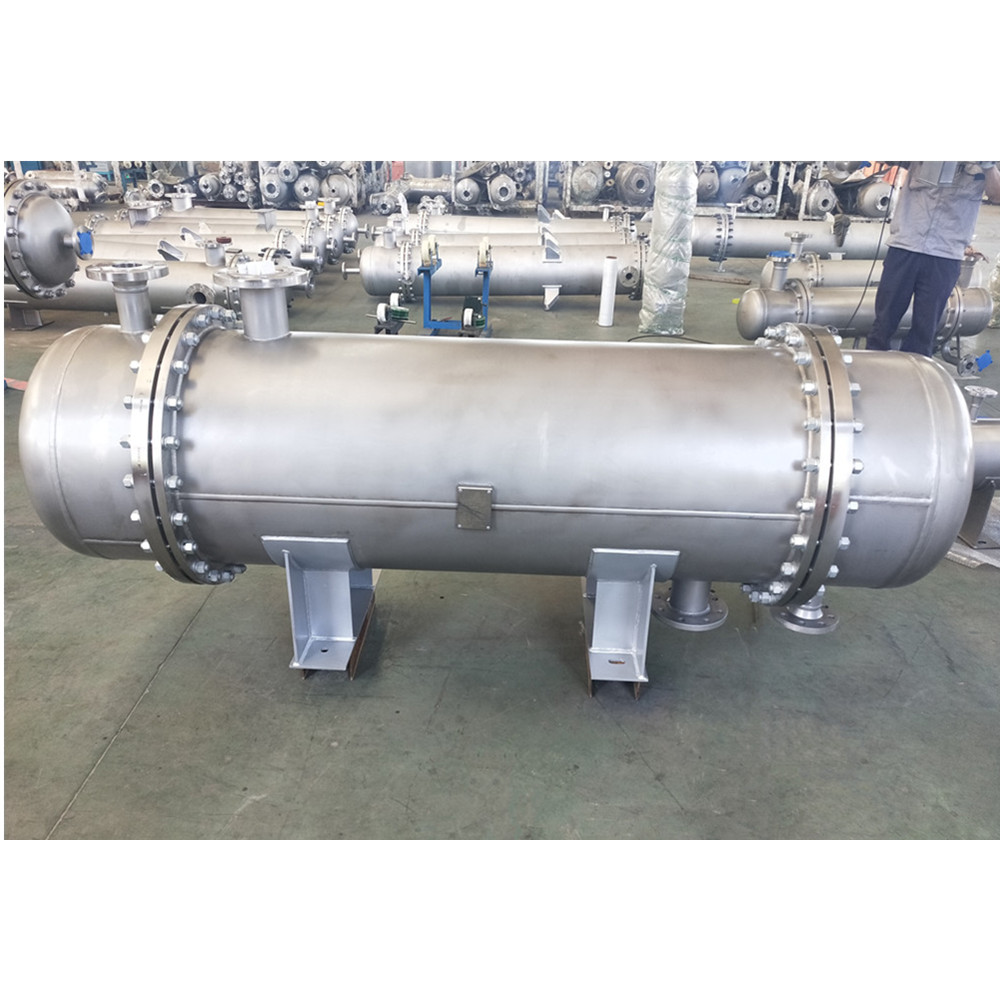

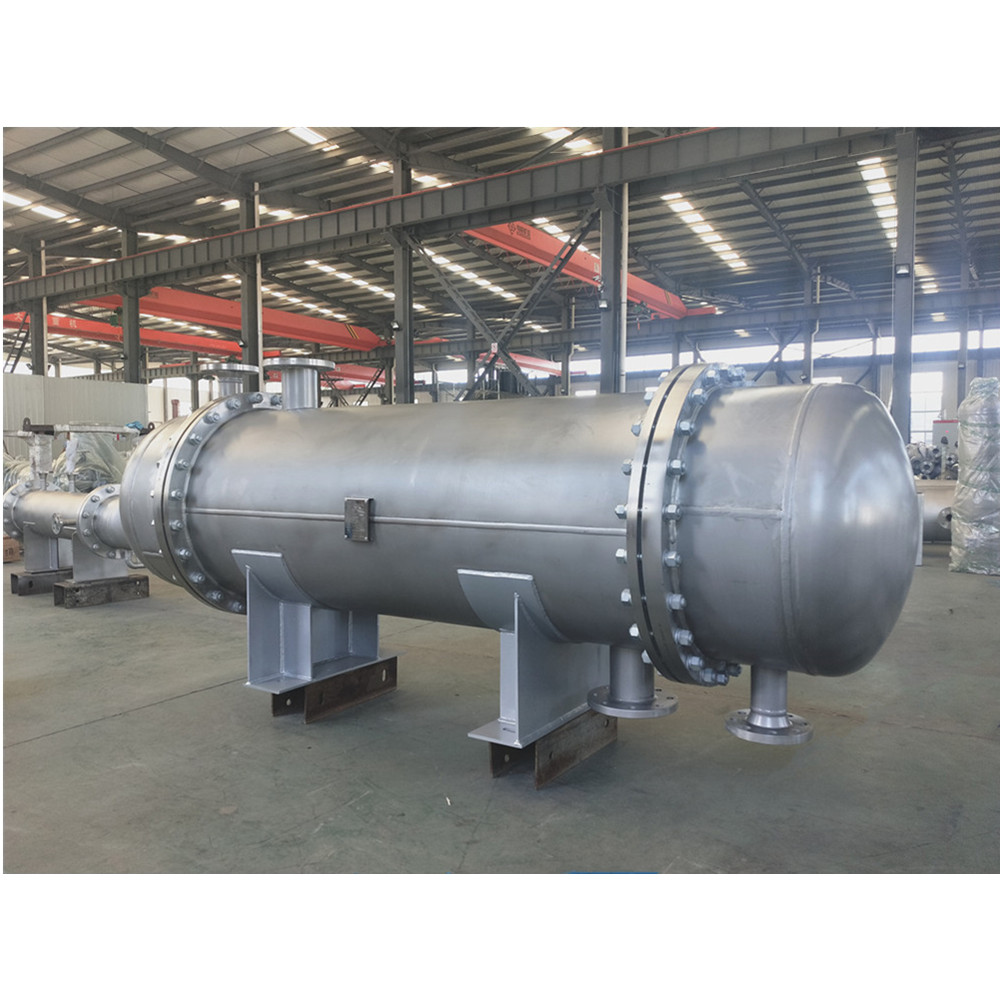

ISO Anti Corrosion Titanium Equipment Shell Tube Heat Exchanger
ISO Anti Corrosion Titanium Equipment Shell Tube Heat Exchanger
ISO Anti Corrosion Titanium Equipment Shell Tube Heat Exchanger
ISO Anti Corrosion Titanium Equipment Shell Tube Heat Exchanger
ISO Anti Corrosion Titanium Equipment Shell Tube Heat Exchanger
ISO Anti Corrosion Titanium Equipment Shell Tube Heat Exchanger
Specifications
Brand Name :
LHTi
Model Number :
LH-Ti10
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1 pieces
Payment Terms :
L/C,D/P, T/T etc.
Supply Ability :
2000-5000 pieces per month
Delivery Time :
20-30 working days
Packaging Details :
Standard export packing,plywood case outside
Product name :
Titanium Shell & Tube Heat Exchanger
Assembly parts :
Tube bundle, shell, dish head, heat exchange tube, etc
Tube material :
Titanium
Tube plate material :
Titanium steel composite
Shell side material :
Titanium/Stainless steel
Shell material :
Titanium/Stainless steel
Sasteners material :
Titanium/Stainless steel
Advantages :
Corrosion resistant,Simple structure and low cost
Dimension(L*W*H) :
Customized
Applications :
High temperature and pressure corrode fluids,seawater,saltwater,brine water etc.
Warranty :
1 Year
System :
Single /double/Triple system
Description

Industrial Titanium Shell & Tube Heat Exchanger For Steam Water Condenser

Tube exchanger is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.

Tube heat exchanger is a high-efficiency heat exchanger suitable for steam-steam, steam-liquid and liquid-liquid heat transfer.

It is widely using in heating and cooling treatment of materials during production in food, beverage, pharmacy, chemical industry, etc. The tube heat exchanger could be designed and produced according to customer's various requirements. different materials, size accepted.

Material: Gr1 Gr2 Gr7 Gr12 titanium

Tube diameter: φ8, φ10, φ12, φ14, φ16, φ19 ,φ25 etc (customized)

Max. heat exchanger area: 200 square meter (customized)

Max. working pressure: 4 Mpa (customized)

Max. temperature: 300 degree celsius (customized)

Installation type: Horizontal/Vertical

Application: oil, chemical, pharmacy, food, electricity, paper etc.

Grade

Fe max

O max

N max

C max

H max

Pd

Al

V

Mo

Ni

Elong'n

Σb

(Mpa)

σr0.2

(Mpa)

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

%

MPa

MPa

Grade 1

0.2

0.18

0.03

0.1

0.015

24

240

140

Grade 2

0.3

0.25

0.03

0.1

0.015

20

400

275

Grade 7

0.3

0.25

0.03

0.1

0.015

0,12-0,25

20

400

275

Grade 12

0.3

0.25

0.03

0.1

0.015

0.3

0.8

18

460

300

Detailed images:

The other products we can manufacture:

Packaging and shipping:

About our company:

Product tags

heat exchanger titanium

,

titanium heat exchanger

,

titanium tube heat exchanger
