Specifications
Brand Name :
LHTi
Model Number :
LH-Ti2
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1 pieces
Payment Terms :
L/C,D/P, T/T etc.
Supply Ability :
20000 pieces per month
Delivery Time :
15-30 Days
Packaging Details :
Standard export packing,plywood case outside
Product name :
Bubble Cap Tower Tray For Distillation Column for tower internalsCustomized metal duplex & titanium PVDF PP ABS bubble cap tray
Material :
Titanium Nickel zirconium
Type :
Tower trays
function :
vapor fully contacts with liquid
Application :
Petrochemical Refinery distillation towers
Quality test :
UT,PT
Third-party testing :
Available
Description

Bubble Cap Tower Tray For Distillation Column for tower internals

Description

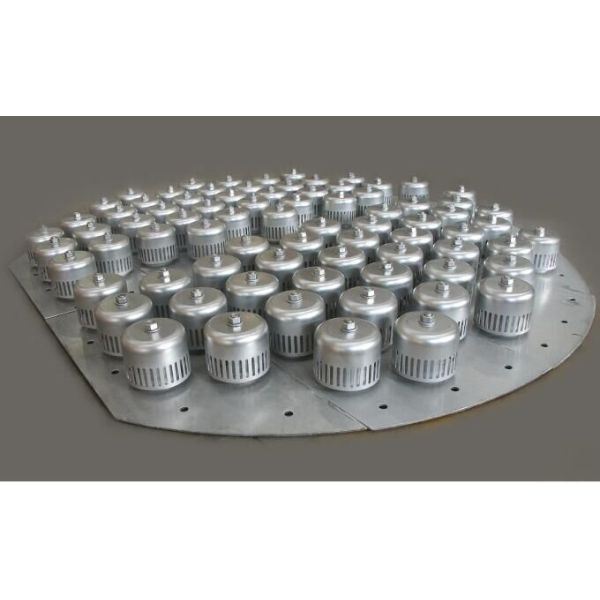

Bubble cap tray is a flat perforated plate with risers (like pipes) around the perforations, and caps in the form of inverted cups over the risers.

The caps are usually equipped with slots or holes through which vapor comes out. The cap is mounted so that there is a space between riser and cap to allow the passage of vapor. Vapor rises through the riser and is directed downward by the cap passing through slots in the cap, and finally bubbling through the liquid on the tray. As vapor has to pass through many passages, this leads to higher pressure drop and lower capacity than other conventional trays. Liquid and froth are filled on the tray to a depth at least equal to weir height or riser height, hereby giving the bubble cap tray a unique ability to be used for reaction applications.


Advantage
(1) The gas and liquid phases are in full contact and the mass transfer area is large, so the tray efficiency is high.
(2) The operation flexibility is large, and the high efficiency can be maintained when the load variation range is large.
(3) It has high production capacity and is suitable for large-scale production.
(4) It is not easy to block, the medium adapts to a wide range, and the operation is stable and reliable
Application:
Mainly usend in reactive distillation, separation of certain organic products; separation of benzene-methyl; separation of
nitrochlorobenzene; oxidation and absorption of ethylene.

Bubble cap tower tray for distillation system

Tower tray is recommended to be applied in the tray columns in the columns. Valve tray offer to you solution with higher capacity, higher separation efficiency, lower pressure drop and better flexibility as well as lower capital costs.

Feature:
1) Higher capacity - typically 20-40%,

2) Higher tray efficiency - typically 5-15%

3) Lower pressure drops - typically 15-20%

4) Higher turn down flexibility

5) Longer column run-time
Application area:
Petrochemical, coal chemical, precision chemical, nuclear power, metallurgical, pharmaceutical, machinery, food, pesticide, rubber, aerospace, marine, dye, new power equipment and so on.

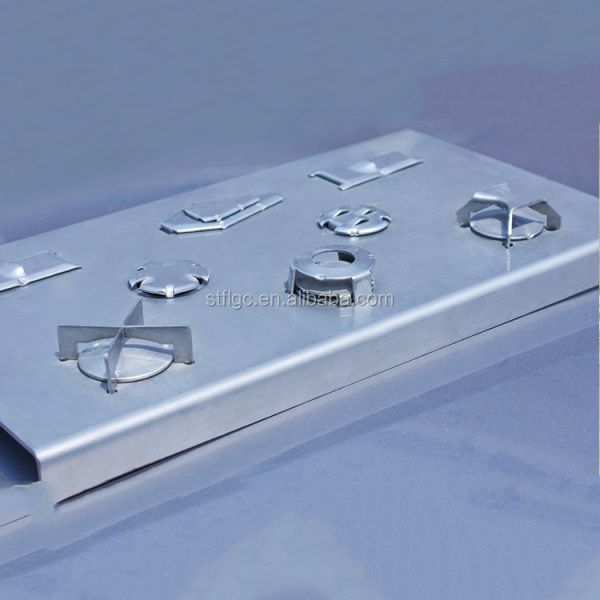

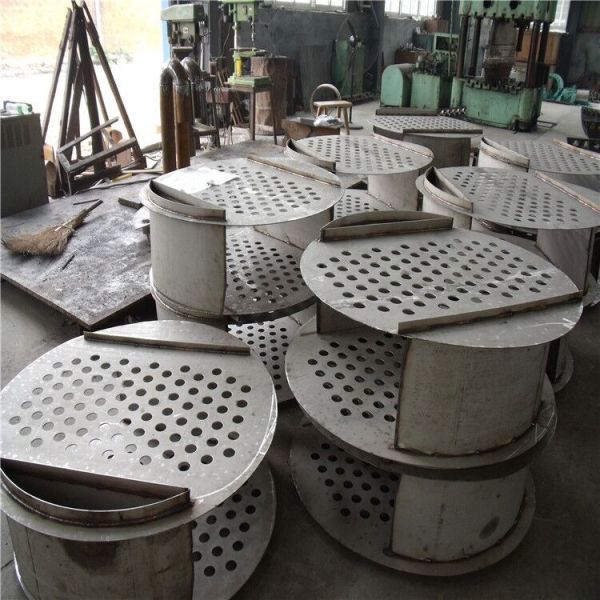

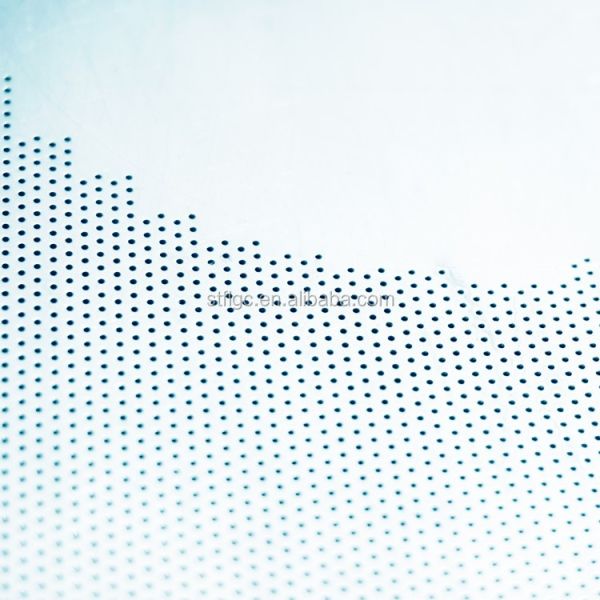

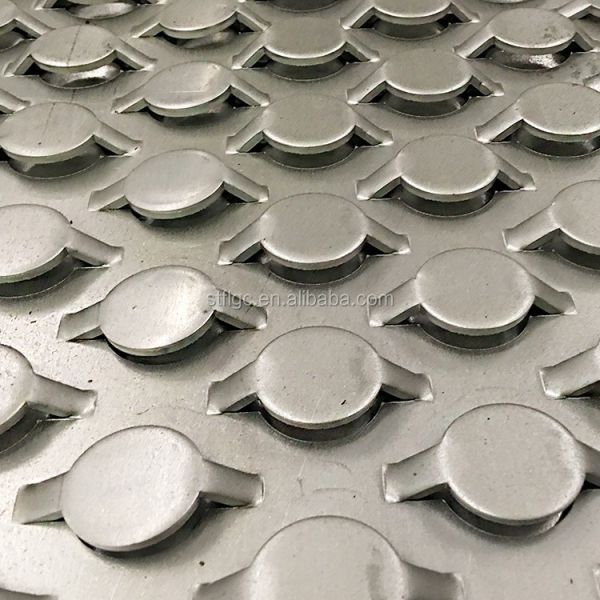

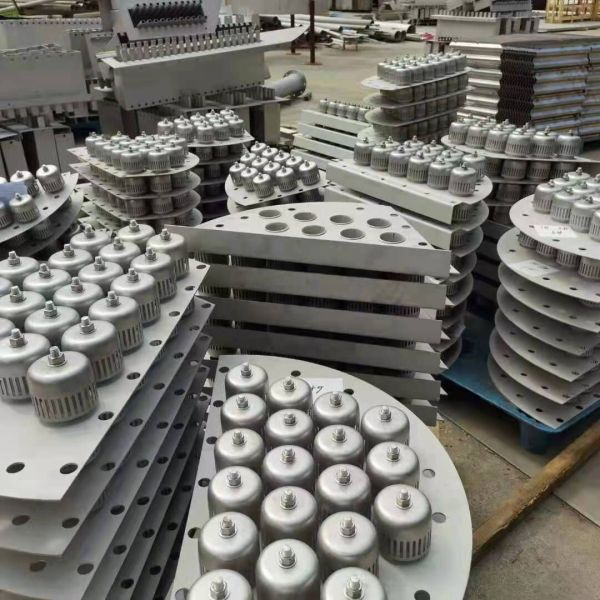

Detailed images:

Application
Bubble-Cap trays have numerous applications in refinery and gas plants.
Model
Material Type
1
2
Norminal Dia. Dg
80
100
150
80
100
150
Slot Height
H
1
20
20
35
20
20
35
2
25
25
-
25
25
-
3
30
32
-
30
32
-
Slot Breadth b1
4
5
R4/13.5
4
5
R4/13.5
Slot Number n
30
32
28
30
32
28
Slot Pitch f
8.38
9.82
17.7
8.38
9.82
17.7
Riser Pore Dia. d1
55
68
106
55
68
106

Related products :

Related Products

Sieve Trays

100% Response Rate

Floating Valve Trays

100% Response Rate

Fixed Valve Trays

100% Response Rate

Packing & Delivery

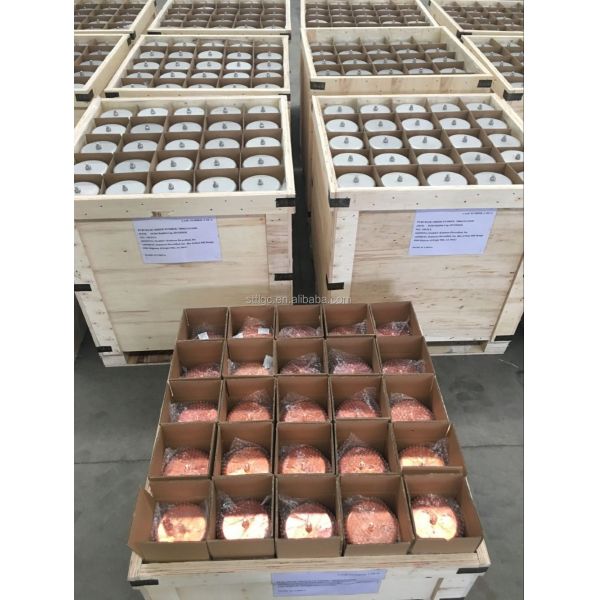

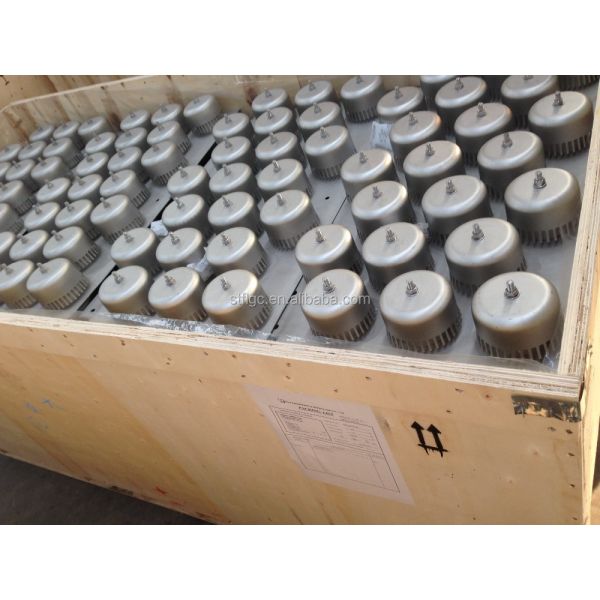

Packing&Shipping
