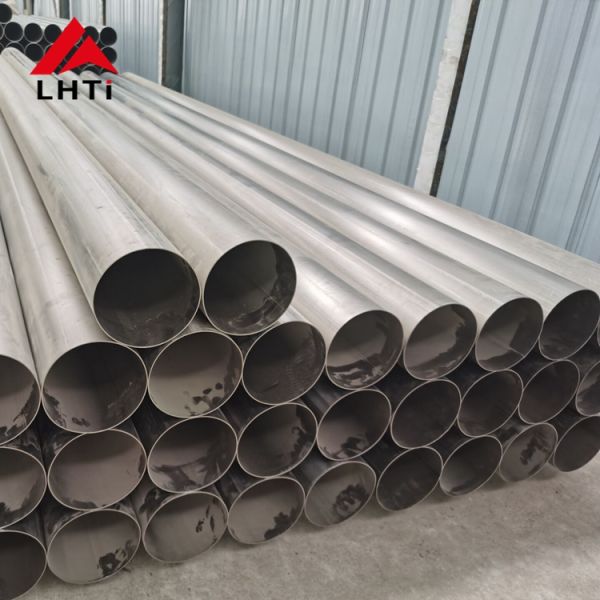

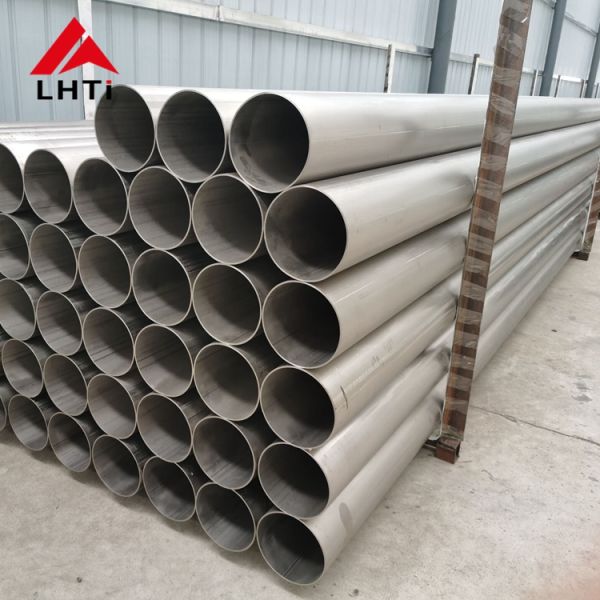

Factory wholesale price gr1 gr2 gr7 gr9 gr11 gr12 gr16 gr17 welded seamless titanium tube pipe

Titanium Tube is half the weight of steel, so because it has a lower mass, it can be just as strong (as steel) at half the weight. Titanium Seamless Tube is characterized by its high strength to weight ratio. It is quite ductile in an oxygen free environment and has a low density. Titanium Alloy Tube has a very high melting point, which is even greater than 1650 degrees Centigrade or 3000 degrees Fahrenheit. Titanium Tubing has the chemical symbol Ti. ASTM B338 Titanium Tube is paramagnetic alloy. Titanium Welded Tube is costly compared to Aluminium.

1)Standard: ASTM B337/ASME SB337, ASTM B338/ASME SB338,ASTM B861/ASME SB861

2) Basic Sizes: Out Diameter: 2.0-219mm
Wall thickness: 0.3-12mm
Length: within 18000mm

3) Grade: a) Gr.1(CP titanium, low oxygen)
b) Gr.2(CP titanium, standard oxygen)
c) Gr.7( Ti-Pd, standard oxygen)
d) Gr.9(Ti-3Al-2.5V)
e) Gr.11( Ti-Pd, low oxygen)
f) Gr.12(Ti-Mo-Ni)
g) Gr.16(Ti-Pd,standard oxygen)
h) Gr.17(Ti-Pd,low oxygen)

4) Applications:
Condensers, heat exchangers, medical and sports equipment, aerospace, desalination,
pure chlor-alkali, oil, vacuum salt, etc.
Normal Size
OD25*WT1.0*4000mm
OD24.2*WT2.4*1000mm
OD15.88*WT0.55*5000mm

5)Products Type:titanium tube,titanium pipe,titanium tubing

6)Products treatment: Annealed or CWSR

7)Package:Poly-wooden cases

8)Quality Guarantee
(1) Main quality indicators: chemical composition, mechanical property, tolerance.
(2)The original Mill Test Certificate is available to be attached to the delivery.
(3)With our own R&D, Production, Processing and Sales system, we always struggling to supply the products
(4) With advanced technology & equipment, abundant experiences and skilled workers,we process titanium
material in accordance with the International standard.

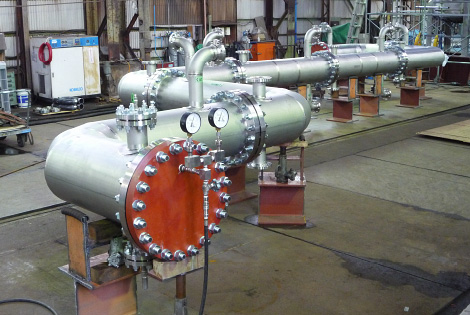

Titanium tube used for chemical plant piping

Detailed images:

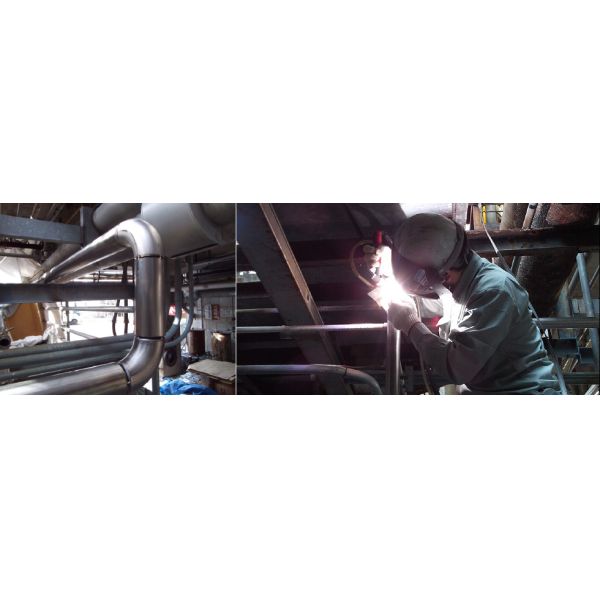

Piping welding in the field
Titanium has a strong affinity with oxygen and should be shielded with an inert gas to block out oxygen during welding.
This work is difficult in the field, but it is possible to do titanium welding in the field by devising the shield jig, etc., and doing a steady curing.

The third party testing report:

Packaging and shipping:

About our company:
