Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End
Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End
Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End
Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End
Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End
Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End
Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End
Annealed 12m Seamless Welded Titanium Tube Grade 2 Bevelled End
Specifications
Brand Name :
LHTI
Model Number :
LH-01
Certification :
ISO9001
Place of Origin :
BaoJi Shaanxi China
MOQ :
10kgs of each size
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability :
5 tons per month
Delivery Time :
15-25 working days
Packaging Details :
Each tube with environmental protection bags,outside is standard plywood case
Key words 1 :
Titanium seamless tube
Key words 2 :
Welded titanium tube
Material :
Pure titanium , Titanium alloy
Grade :
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc
Length :
Max 12 meter
Surface :
Pickling surface
Payment term :
T/T,L/C etc
Application :
Chemical industry
Description

Chemical Industry use Titanium Grade 2 Seamless Pipe welded tube 13-120mm max 18000mm

Titanium tubings are delivered in straight lengths or as U-bent tubing. Titanium spiral tubing, titanium capillary tubing are available if required. All the Titanium Tubing offered by us will pass a strict test process.

Titanium tube / pipe widely used in Industry field, aerospace, architectural, automotive, biomedical, chemical processing, marine, military, oil, tooling, racing.

Material:CP titanium, Titanium alloy
Grade:Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc
OD: 13～120mm
Max length:15m
WT: 0.3～12mm
Standard:ASTM B338, ASTM B337, ASTM B861, ASTM B862 etc
Status:Annealed (M)
Technology:Rolling, Welding, Machining
Form:Round, Square, Rectangular, Coil, U Tube
End:Plain End, Bevelled End

Quality testings: 100% Ultrasonic Test (UT), 100% Eddy Current Test(ET), 100% Pneumatic Test. 100% Hydraulic Test.

ASTM B265

 Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm
No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 1 0.2 0.18 0.03 0.1 0.015 24 170-310 240
Grade 2 0.3 0.25 0.03 0.1 0.015 20 275-450 345-480
Grade 3 0.25 0.3 0.05 0.1 0.015 18 360-480 480-700
Grade 4 0.5 0.4 0.05 0.1 0.015 15 500-530 600-680
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 275-450** 345
Grade 9 0.25 0.15 0.02 0.05 0.015 2,5-3,05 15 550 650
Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 25 414-460 499-600

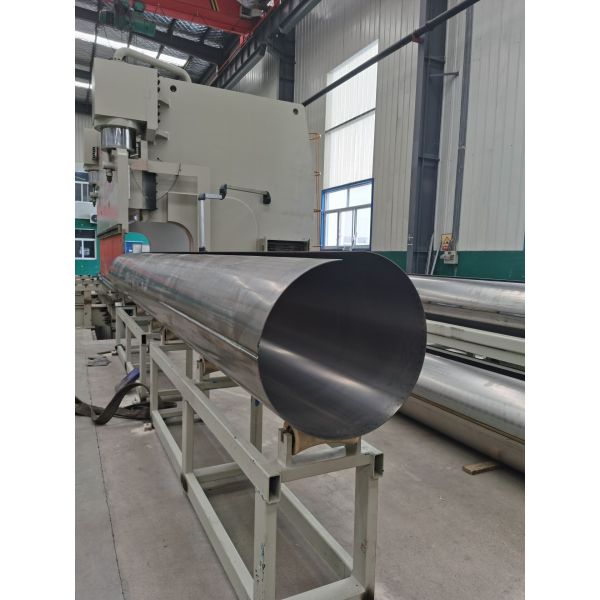

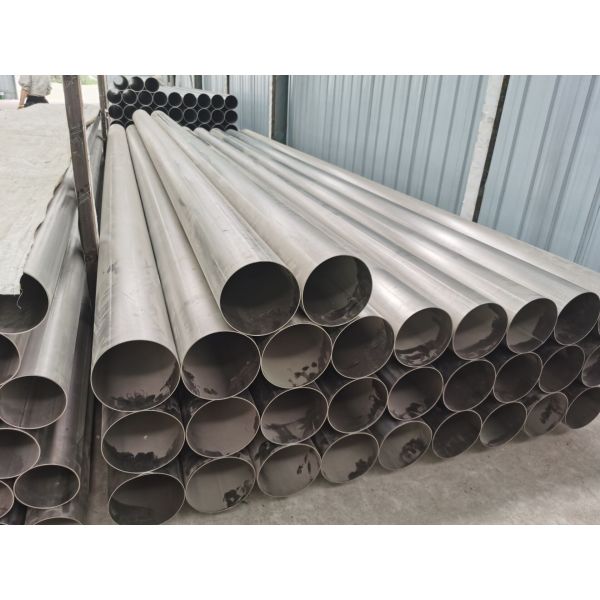

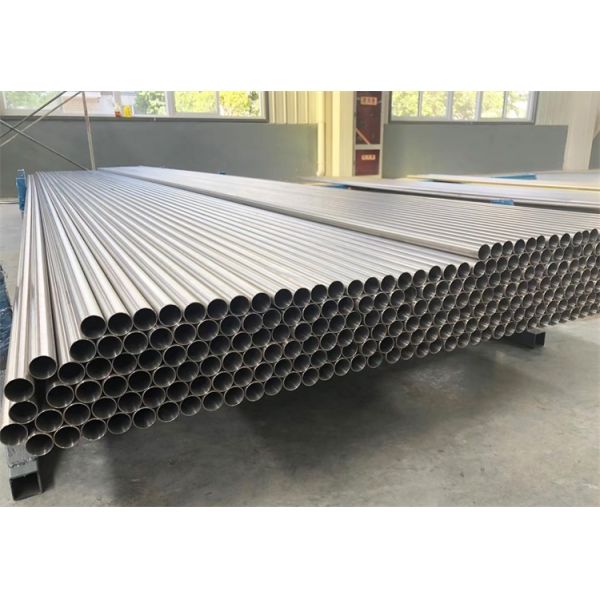

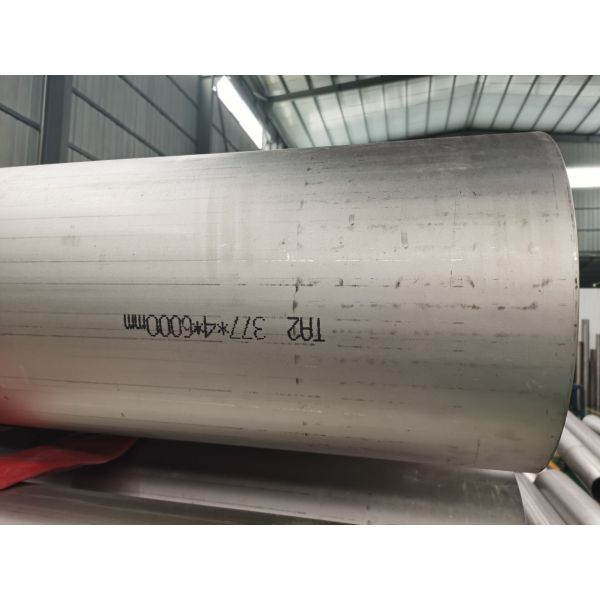

Detailed images:

The third party testing report:

Packaging and shipping:

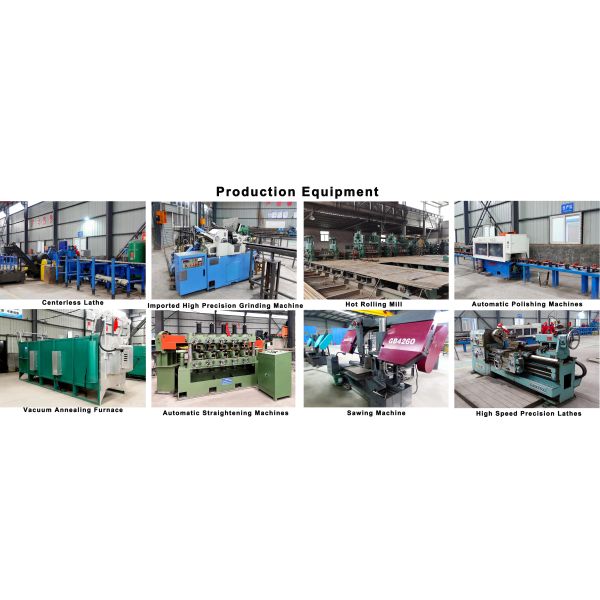

About our company:
