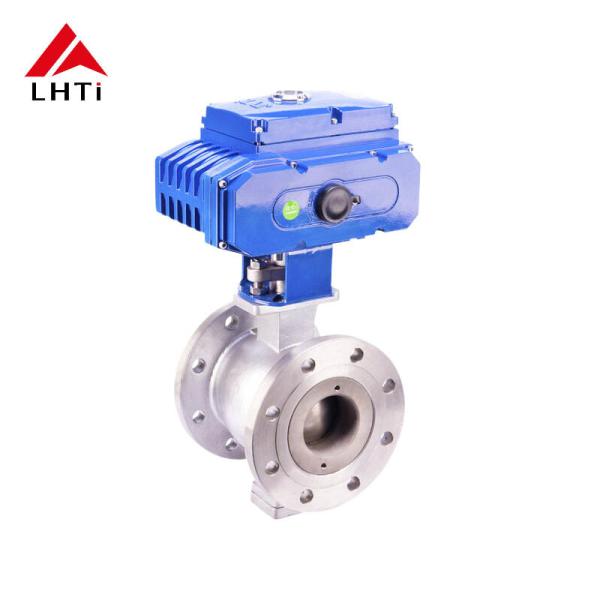

Electric V-Port Ball ValvesTitanium Gr7 8 Inch Ball Valve Class 150 DN 15-250

Titanium Electric V-Port Ball Valves, such as the Gr7 8-inch Ball Valve, are a specialized type of valve designed to control the flow of water or other fluids in a system. These valves are particularly useful in applications requiring precise flow regulation and are made from Grade 7 titanium, offering high corrosion resistance and durability. Here's an overview and explanation of the key aspects of these valves:

Main Features and Advantages of Titanium V-Port Ball Valves

1. V-Port Design:

   • The V-shaped port allows for precise flow control, making it ideal for applications that require accurate throttling. This design offers linear and stable modulation, ensuring reliable and efficient operation.

2. Corrosion Resistance:

   • Titanium’s exceptional resistance to corrosion from a wide range of chemicals, seawater, and harsh environments ensures that the valve maintains its integrity and performance over time, even in challenging conditions. This makes it highly suitable for industries dealing with aggressive fluids.

3. High Strength-to-Weight Ratio:

   • Titanium offers a high strength-to-weight ratio, making the valve robust yet lightweight. This feature simplifies handling, installation, and maintenance compared to valves made from heavier materials.

4. Temperature Tolerance:

   • Titanium valves are designed to withstand extreme temperatures, ensuring reliability in both high-temperature and low-temperature applications, which is essential for industries like chemical processing, power generation, and oil and gas.

5. Durability:

   • The inherent robustness of titanium ensures that these valves have a long service life, significantly reducing the frequency of maintenance and the need for replacements, resulting in lower overall operational costs.

6. Biocompatibility:

   • Titanium's biocompatibility makes these valves ideal for use in pharmaceuticals and biotechnology, where contact with biological materials is common. This is essential in maintaining the integrity of sensitive processes.

7. Reduced Maintenance:

   • Due to their high corrosion resistance and durability, these valves require less frequent maintenance, which reduces both operational downtime and costs associated with system maintenance.

8. Smooth Operation:

   • The precision engineering of the V-port design ensures smooth operation, improving overall process control and making the valve a reliable solution for applications requiring accurate flow regulation.

9. Versatility:

   • These valves are versatile, suitable for a broad spectrum of industries such as chemical processing, oil and gas, power generation, food and beverage, and more, thanks to their high resistance to corrosion and ability to handle extreme conditions.

10. Enhanced Safety:

• The corrosion resistance and high-temperature tolerance of titanium enhance operational safety, particularly in critical environments such as those involving hazardous fluids or high-pressure systems.

Steps to Calculate Valve Size

1. Determine the Cv Value:

   • The Cv (Flow Coefficient) is crucial for sizing a valve. It indicates the flow capacity of the valve at a specific pressure drop.
   • The Cv is determined using formulas based on the fluid's properties (like flow rate, pressure, and fluid characteristics) and the desired operating conditions.
   • The general formula for Cv is:

     $$Cv=Q\times \sqrt{\frac{SG}{\mathrm{\Delta }P}}$$

     Where:
     • Q is the flow rate (GPM),
     • SG is the specific gravity of the fluid (water = 1),
     • ΔP is the pressure drop across the valve (psi).

2. Cavitation and Fluid Characteristics:

   • Cavitation Check: Ensure the valve can handle the pressure drop without causing cavitation. This is assessed by checking the FL (Liquid Pressure Recovery Factor), which helps to determine whether the valve design and fluid conditions will avoid cavitation.
   • Expansion Factor: For compressible fluids (gases), calculate the Pressure Drop Ratio Factor to account for changes in fluid density as it passes through the valve.

3. Select Nominal Valve Size:

   • Once the Cv value is calculated, use it to select the nominal valve size:
     • For V-Port Ball Valves, choose a valve that provides the required Cv value for flow rates between 20% to 80% of the port opening.
     • For Round Port Ball Valves, choose a valve that provides Cv for flow rates between 30% to 80% of the port opening.
   • Consult Cv charts provided by the manufacturer to match the calculated Cv to an appropriate valve size.

4. Valve Type and Materials:

   • Choose the valve type (flanged, threaded, or welded) based on your piping system and installation requirements.
   • Since acetic acid is involved, select materials like titanium or stainless steel for the valve construction, ensuring compatibility with the fluid and environmental conditions.
   • For V-Port Ball Valves, consider RTFE (Reinforced Teflon) valve seats, as they offer excellent chemical resistance and provide a reliable seal.

5. Actuator Selection:

   • Select the appropriate actuator (electric, pneumatic, or hydraulic) based on the valve type and the system's operational requirements.
   • Key factors to consider:
     • Torque or thrust requirements for the actuator to operate the valve correctly.
     • Control mechanism (on-off or modulating) to match your system's needs.
     • Compatibility with automation systems if needed for remote control or monitoring.

Product Technical Specifications:

Applications of Titanium Electric V-Port Ball Valves:

• Water Treatment Facilities: Managing flow rates of treated water.
• Water Distribution: Ensuring efficient water delivery while maintaining system pressure.
• Chemical Processing: When the water supply involves handling corrosive chemicals.
• Cooling Systems: In large industrial plants where water flow control is critical to maintaining operational temperatures.
