Specifications
Brand Name :
Qingrui
Model Number :
Q195/Q235
Certification :
ISO9001
Place of Origin :
Anping , China
MOQ :
100 rolls
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Trade asscurance,Credit card
Supply Ability :
2000 rolls per week
Delivery Time :
20days if you need more
Packaging Details :
woven bags inside and wooden pallets outside
Product name :
Coppered Tie Wire
Surface Treatment :
Black/pvc/galvanized
Type :
Coppered Tie Wire
Function :
Baling Wire
Application :
Building / Rebar Ties
Tensile Strength :
350-550mpa
Size :
BWG8-BWG22
Material :
Q195/Q235/SAE1006/SAE1008
Package :
5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/rol
Description

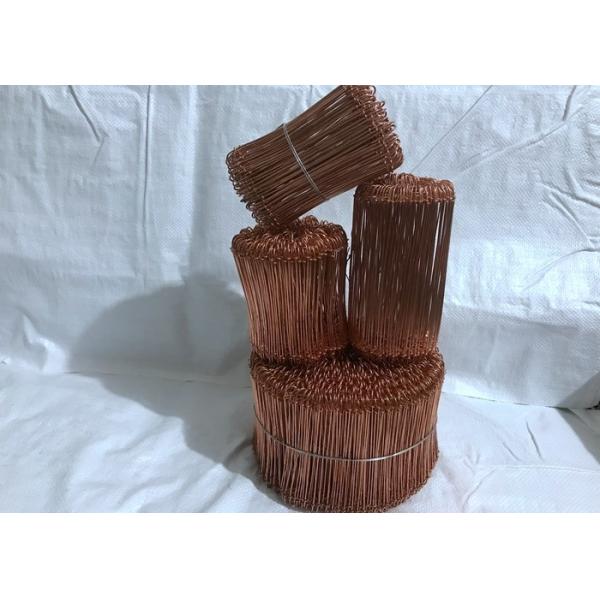

BWG 18 Coppered Loop Tie Wire 1.2mm​ Baling Wire Soft Copper Coated Loop Tie Wire


Soft Copper Coated Loop Tie Wire brief introduction​ :

Soft Copper Coated Loop Tie Wire is also known as double loop wire ties, Rebar Ties, Rebar Loop Ties, Double Loop Ties, loop binding wire,etc. We can supply you with galvanized double loop wire ties, black double loop wire ties, pvc double loop wire ties, copper coated loop wire ties and ss loop wire ties.
Double loop tie wire is available in length from 4 ” to 24″. Most used in garden,building for tie wire, it’s easy to use.

  • Standard Diameter: 16ga to 20ga
    Standard Lengths: 3″ up to 44″
  • Packaging : 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/roll

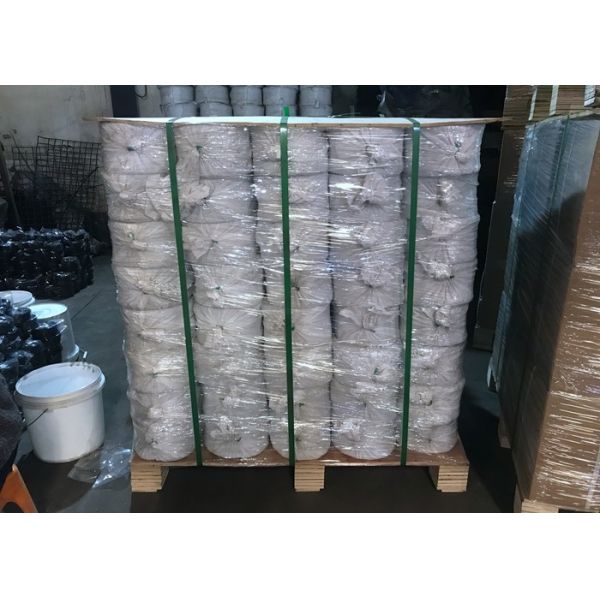

    Rolls packed by woven bag then with pallet.
    Note: Other specifications,material or packing form are available.
  • Features: Dead-soft annealed wire – pliable, yet tough; easy to twist, but hard to break.
    PVC Coated /Galvanized Annealed/Coppered with added protection against corrosion, salt or abrasives.

We can manufacture all of sizes with different finishes. We will also custom-produce loops and lengths to your specifications.
Now we have became the biggest Wire Ties Manufacturer in China. Your Bar Ties Products Factory–The Good Quality, Competitive Prices, Reliable Delivery schedules Providing from us.

Soft Copper Coated Loop Tie Wire Usage / Application


Use a kind of wire twister to tie the two ends of the double loop wire together.
Loop tie wire How to use: Hook the two rings of the buckle with a hooked wire tool and tighten it in one direction.

  1. Used as tie wires to bind bags and rebars.

  2. Used in the family garden to bind branches of plants.Securing trees, wines and creepers o supports and trellises

  3. Applied in the farm to bundle twigs.

  4. erecting and joining support structur

  5. Tying bags or as a ma or laundry bag seal

  6. Finish of loop tie wire can be black annealed loop ie wire. galvanized loop te wire or PVC coated loop wire.

  7. Small coil wire tie finds most uses in binding of different materials especially for daily use

Soft Copper Coated Loop Tie Wire specification as blows :

Gauge SWG BWG AWG
Inch MM Inch MM Inch MM
8 0.16 4.046 0.165 4.191 0.1285 3.264
9 0.144 3.658 0.148 3.759 0.1144 2.906
10 0.128 3.215 0.134 3.404 0.1019 2.588
11 0.116 2.946 0.12 3.048 0.0907 2.305
12 0.104 2.642 0.109 2.769 0.0808 2.053
13 0.092 2.337 0.095 2.413 0.072 1.828
14 0.08 2.032 0.083 2.108 0.0641 1.628
15 0.072 1.829 0.072 1.829 0.0571 1.45
16 0.064 1.626 0.065 1.651 0.0453 1.291
17 0.056 1.422 0.058 1.473 0.0403 1.15
18 0.048 1.219 0.049 1.245 0.0359 1.024
19 0.04 1.016 0.042 1.067 0.032 0.912
20 0.036 0.914 0.035 0.839 0.0285 0.812
21 0.032 0.813 0.032 0.831 0.02535 0.723
22 0.028 0.711 0.028 0.711 0.02256 0.644
23 0.024 0.61 0.025 0.635 0.02256 0.573
24 0.022 0.559 0.022 0.559 0.02011 0.511
25 0.02 0.508 0.02 0.508 0.01791 0.455
26 0.018 0.457 0.018 0.457 0.01594 0.405


Soft Copper Coated Loop Tie Wire Features

1: exhibit attractive properties as high strength and ductility, good corrosion resistanc
2: clean and convenient
3: unbreakable, Tensile strength is 300-380mpa
4: durable , After high temperature treatment, the ductility can reach 15% - 20%
5: easily twist , Raw material annealed 3 times, better flexibility, so it is easier to twist binding


Soft Copper Coated Loop Tie Wire Process :

First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment

Our services

Qingrui has the best factory price in the early stage. When the order is put into production, the raw material quality inspection data will be sent to the customer for quality inspection and confirmation before production. When the production reaches half, the video will be sent to the customer for product inspection. Before the delivery of large goods, the quality inspection and packaging acceptance and confirmation will be carried out with the customer, and the overall full name will be reported to the customer for the real-time production progress of factory production.
