Specifications
Brand Name :
Qingrui
Model Number :
Q195/Q235
Certification :
ISO9001
Place of Origin :
Anping , China
MOQ :
100 rolls
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal,Trade asscurance,Credit card
Supply Ability :
2000 rolls per week
Delivery Time :
20days if you need more

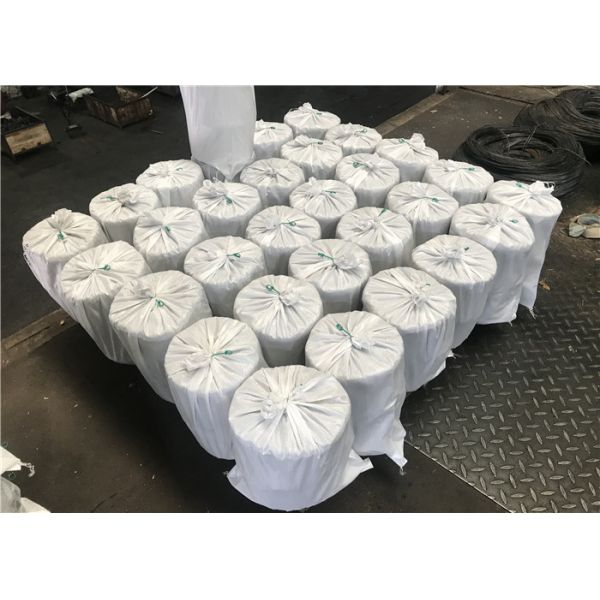

Packaging Details :
woven bags inside and wooden pallets outside
Product name :
Galvanized Loop Tie Wire
Surface Treatment :
Black/pvc/galvanized
Type :
Galvanized Loop Tie Wire
Function :
Baling Wire
Application :
Building / Rebar Ties
Tensile Strength :
350-550mpa
Size :
BWG8-BWG22
Material :
Q195/Q235/SAE1006/SAE1008
Package :
5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/rol
Description

BWG18 2,500 / Roll Galvanized Baling Wire Galvanized Double Loop Wire Ties



Galvanized Double Loop Wire Ties introduction:

Galvanized Double Loop Wire Ties is also known as tie wire or binding wire. It is easy to operate, therefore it's widely uses in binding of different materials, especially for daily use. The main materials of loop tie wires are galvanized iron wire, black annealed iron wire, PVC-coated iron wire and copper wire.

  • Types: copper double loop tie wire, galvanized double loop tie wire, PVC coated double loop tie wire, stainless steel double loop tie wire, etc.

  • PVC coated color: green, blue, black, yellow, red, etc.

  • Wire diameter: 0.7 mm - 4 mm.

  • Length: from 4" - 24".

  • Wire diameter and lengths can be made according to your needs.

  • the common one is 16 gague black annealed double end loop tie wire, with length 6'

  • packaged in 500, 1000, 2000, 5000 pieces/bundle, then in gunny bag or carton, or by pallets


Galvanized Double Loop Wire Ties Features

1: exhibit attractive properties as high strength and ductility, good corrosion resistanc
2: clean and convenient
3: unbreakable, Tensile strength is 300-380mpa
4: durable , After high temperature treatment, the ductility can reach 15% - 20%
5: easily twist , Raw material annealed 3 times, better flexibility, so it is easier to twist binding

Loop Tie Wire specification as blows :

Gauge SWG BWG AWG
Inch MM Inch MM Inch MM
8 0.16 4.046 0.165 4.191 0.1285 3.264
9 0.144 3.658 0.148 3.759 0.1144 2.906
10 0.128 3.215 0.134 3.404 0.1019 2.588
11 0.116 2.946 0.12 3.048 0.0907 2.305
12 0.104 2.642 0.109 2.769 0.0808 2.053
13 0.092 2.337 0.095 2.413 0.072 1.828
14 0.08 2.032 0.083 2.108 0.0641 1.628
15 0.072 1.829 0.072 1.829 0.0571 1.45
16 0.064 1.626 0.065 1.651 0.0453 1.291
17 0.056 1.422 0.058 1.473 0.0403 1.15
18 0.048 1.219 0.049 1.245 0.0359 1.024
19 0.04 1.016 0.042 1.067 0.032 0.912
20 0.036 0.914 0.035 0.839 0.0285 0.812
21 0.032 0.813 0.032 0.831 0.02535 0.723
22 0.028 0.711 0.028 0.711 0.02256 0.644
23 0.024 0.61 0.025 0.635 0.02256 0.573
24 0.022 0.559 0.022 0.559 0.02011 0.511
25 0.02 0.508 0.02 0.508 0.01791 0.455
26 0.018 0.457 0.018 0.457 0.01594 0.405


Galvanized Double Loop Wire Ties Usage / Application

Use a kind of wire twister to tie the two ends of the double loop wire together.
Loop tie wire How to use: Hook the two rings of the buckle with a hooked wire tool and tighten it in one direction.

  1. Used as tie wires to bind bags and rebars.

  2. Used in the family garden to bind branches of plants.Securing trees, wines and creepers o supports and trellises

  3. Applied in the farm to bundle twigs.

  4. erecting and joining support structur

  5. Tying bags or as a ma or laundry bag seal

  6. Finish of loop tie wire can be black annealed loop ie wire. galvanized loop te wire or PVC coated loop wire.

  7. Small coil wire tie finds most uses in binding of different materials especially for daily use

Technical principle of Galvanized Double Loop Wire Ties :

Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.

Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.

550mpa Bwg 18 Galvanized Double Loop Wire Ties

550mpa Bwg 18 Galvanized Double Loop Wire Ties

550mpa Bwg 18 Galvanized Double Loop Wire Ties
