Face Mount Structural Wooden Connectors Skewed Left 45 Degree 14 Gauge 2 X 6 Joist Hanger
Face Mount Structural Wooden Connectors Skewed Left 45 Degree 14 Gauge 2 X 6 Joist Hanger
Face Mount Structural Wooden Connectors Skewed Left 45 Degree 14 Gauge 2 X 6 Joist Hanger
Face Mount Structural Wooden Connectors Skewed Left 45 Degree 14 Gauge 2 X 6 Joist Hanger
Face Mount Structural Wooden Connectors Skewed Left 45 Degree 14 Gauge 2 X 6 Joist Hanger
Face Mount Structural Wooden Connectors Skewed Left 45 Degree 14 Gauge 2 X 6 Joist Hanger
Specifications
Brand Name :
Cangzhoufutong
Model Number :
2 x 6 Joist Hanger
Place of Origin :
China
MOQ :
100
Price :
USD0.5-3.0
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs/day
Delivery Time :
5-8 work days
Packaging Details :
Carton
Material :
G300 Z275 Galvanised Steel
Size :
2 x 6 Joist Hanger
Surface :
Galvanized or powder coating
Key words :
joist hangers for decking,2x6 hangers
Description

2 x 6 Joist Hanger Skewed Left 45 Degree, 14 Gauge Face Mount Structural Connectors for Wood, Hot Dip Galvanized Steel U Shaped Truss Hanger Support Rafter Bracket

About this item
Material: carbon steel SGC440, hot dip galvanized finish
45 degree Skewed Left joist hanger used for 2 x 6 timber
Thickness: 2 mm (14 Gauge)
Hole diameter: 5mm & 5x11 mm (slot hole), accept #10 screw
Face Mount Structural Wooden Connectors Skewed Left 45 Degree 14 Gauge 2 X 6 Joist Hanger

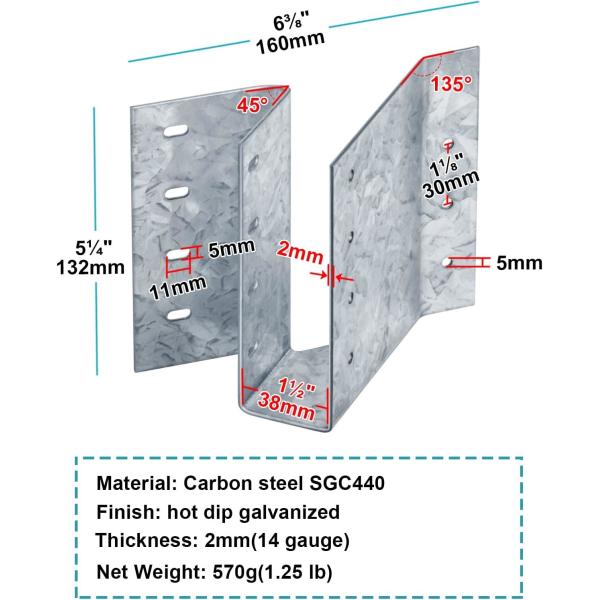

Specification
Material:carbon steel SGC440, hot dip galvanized finish
Thickness: 2mm (14 Gauge)
Prepunched hole diameter (8 pcs): φ5mm
Hole spacing (on center): 30mm(1⅛ inches)
Slot hole size (8pcs): 11x5mm
Inner size: 38x130mm / 1½ x 5⅛ inches (WxH), fit for 2 x 6 joist
Left-Skewed angle: 45° (exterior angle 135°)
Product size: 160x132x78mm
Packing size:21x15x15cm
Weight: 570g per joist hanger, 1270g for 2 joist hanger

Face Mount Structural Wooden Connectors Skewed Left 45 Degree 14 Gauge 2 X 6 Joist Hanger

Packing list

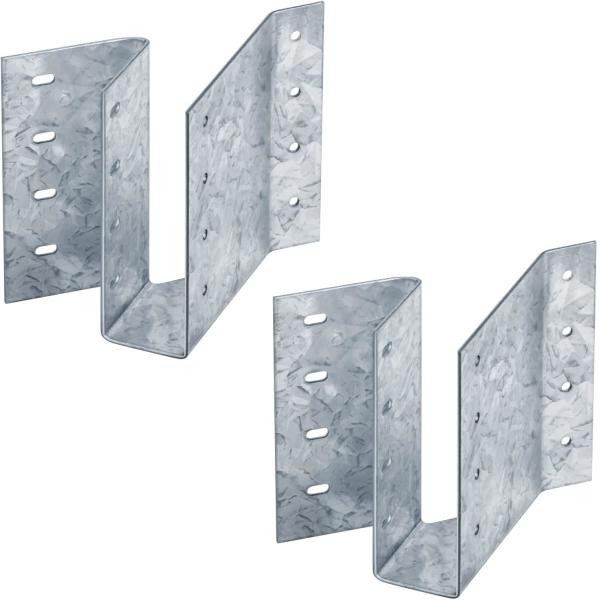

2 x 45 degree joist hanger skewed left
FAQ
1,Q: Are you trading company or manufacturer?
A: We are factory and manufacturer.
2,Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide free samples ?
A: Yes, the sample is free.
4,Q: What is your terms of payment ?
A:30% T/T in advance,70% before shipment.
5.Could you make custom size and OEM packing?
Yes, we could make custom metal products and OEM package according to your design.
6,Q:What's your main products?
A:Our main products include gang nail plates,knuckle nail plates,strip brace,joist hanger,and other timber connectors.
The products and packages could be customized according to your requirements.
7,Q:for your timber connector, what material grade will be used?
A: G300-Z275 galvanized sheet or stainless steel (Accept custom Service).
8, Q:What's the material thickness of your products?
A:0.6mm to 10mm
3,How many years has your factory been in the field of wooden building fittings?
-We have been in this field for 15 years, and we have 5 engineers, 10 technicians, and 200 employees;
