Galvanized Steel Split Joist Hangers Structural Connectors 6 Face Mount 16 Gauge
Galvanized Steel Split Joist Hangers Structural Connectors 6 Face Mount 16 Gauge
Galvanized Steel Split Joist Hangers Structural Connectors 6 Face Mount 16 Gauge
Galvanized Steel Split Joist Hangers Structural Connectors 6 Face Mount 16 Gauge
Galvanized Steel Split Joist Hangers Structural Connectors 6 Face Mount 16 Gauge
Galvanized Steel Split Joist Hangers Structural Connectors 6 Face Mount 16 Gauge
Specifications
Brand Name :
Cangzhoufutong
Model Number :
140mm,220mm
Place of Origin :
China
MOQ :
100
Price :
USD0.5-3.0
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs/day
Delivery Time :
5-8 work days
Packaging Details :
Carton
Material :
G300 Z275 Galvanised Steel
Surface :
Galvanized or powder coating
Size :
140mm,220mm
Description

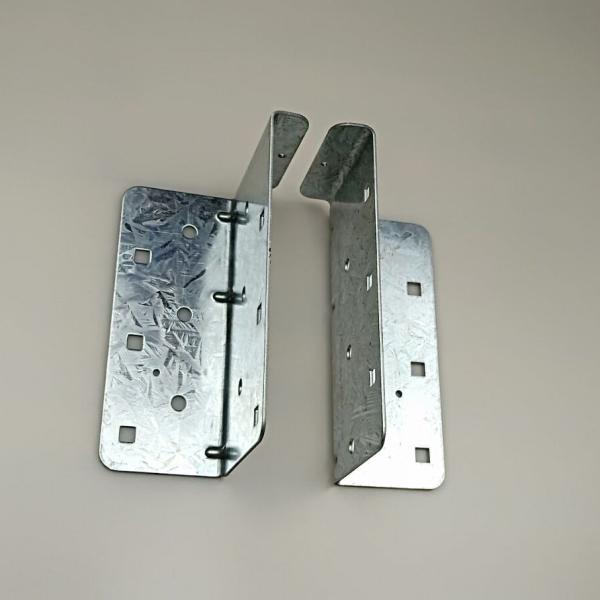

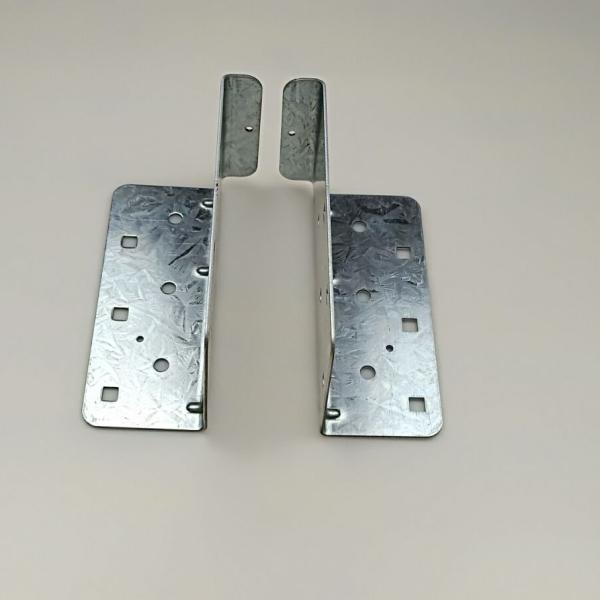

Split Joist Hanger Structural-Connectors Face Mount, All 6" Face Mount Joist Hanger 16 Gauge, Hot Dip Galvanized Finish Steel Joist Dimensional Hangers

About this item
Material :Carbon steel Q235B , hot-dip galvanized surface treatment
Fits joist sizes: All sizes of wood x 6
Thickness: 16 Gauge(1.5 mm)
Prepunched hole size: φ6.5mm;φ3mm;Square hole size: 6.5x6.5 mm
Split Joist Hanger are designed to provide support underneath the joist, rafter or beam to provide a strong a connection.Suitable for all sizes of wood.
Galvanized Steel Split Joist Hangers Structural Connectors 6

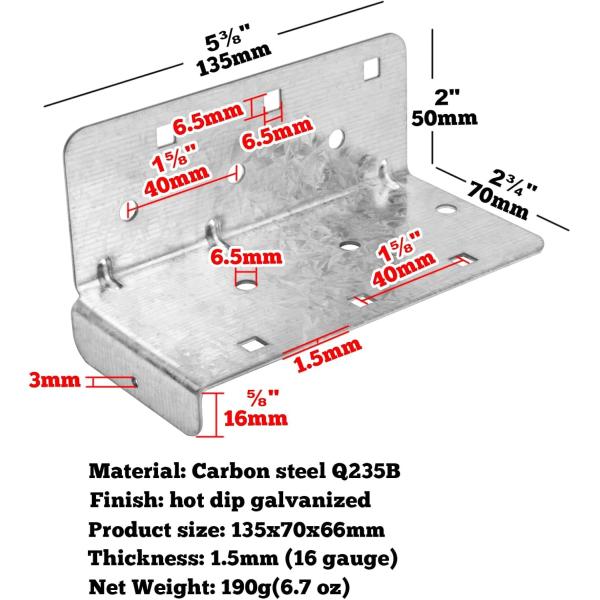

Specification:
Material: carbon steel Q235B
Finish: hot dip galvanized
Thickness: 16 Gauge(1.5mm )
Prepunched hole size : φ6.5mm (6 pcs), φ3mm (2pcs)
Square hole specifications (4 pcs): 6.5x6.5mm
Square hole size : 6.5x6.5mm
Fit for joist size: n" x6"
(Note: n is any sizes of wood )
Color: Silver
Product size: 135x70x66mm
Packing size: 15x9x8cm
Weight: 6.7oz(190g) --single, 1.75lb(795g)--4 pcs
Galvanized Steel Split Joist Hangers Structural Connectors 6
Package Content:
Split Joist HangerX4
FAQ
1,Q: Are you trading company or manufacturer?
A: We are factory and manufacturer.
2,Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide free samples ?
A: Yes, the sample is free.
4,Q: What is your terms of payment ?
A:30% T/T in advance,70% before shipment.
5.Could you make custom size and OEM packing?
Yes, we could make custom metal products and OEM package according to your design.
6,Q:What's your main products?
A:Our main products include gang nail plates,knuckle nail plates,strip brace,joist hanger,and other timber connectors.
The products and packages could be customized according to your requirements.
7,Q:for your timber connector, what material grade will be used?
A: G300-Z275 galvanized sheet or stainless steel (Accept custom Service).
8, Q:What's the material thickness of your products?
A:0.6mm to 10mm
3,How many years has your factory been in the field of wooden building fittings?
-We have been in this field for 15 years, and we have 5 engineers, 10 technicians, and 200 employees;
