4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post
Specifications
Brand Name :
Cangzhoufutong
Model Number :
4x8 Concealed-Flange Joist Hanger
Place of Origin :
China
MOQ :
100
Price :
USD0.5-3.0
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs/day
Delivery Time :
5-8 work days
Packaging Details :
Carton
Material :
G300 Z275 Galvanised Steel
Surface :
Galvanized or powder coating
Size :
4x8 Concealed-Flange Joist Hanger
Description

4x8 Concealed-Flange Joist Hanger, Thickness 3mm (11 Gauge) Steel Outdoor Accents Concealed Joist Hanger for 4x8 Post

About this item
Material:Carbon steel Q235B , surfaceelectro-galvanized finish
Inner Width:3-1/2"(89mm) fit 4x8 Post
Thickness: 11Gauge( 3 mm )
2 types of prepunched hole size: φ6 mm (14 pcs), φ13 mm (5 pcs)
Weight: 2.43 lb(1.1kg)-1 piece, 5.09 lb(2.31kg)-2 pieces.
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post

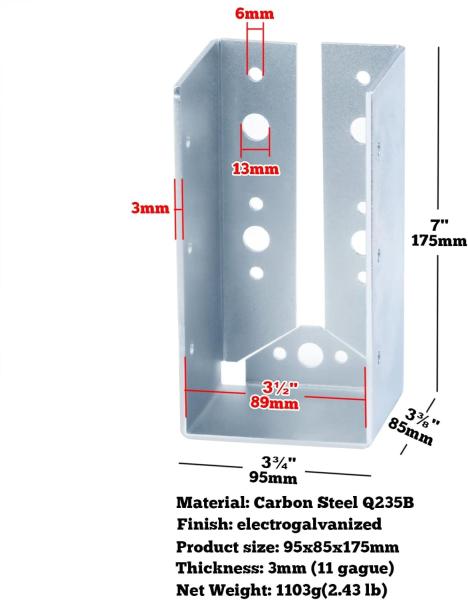

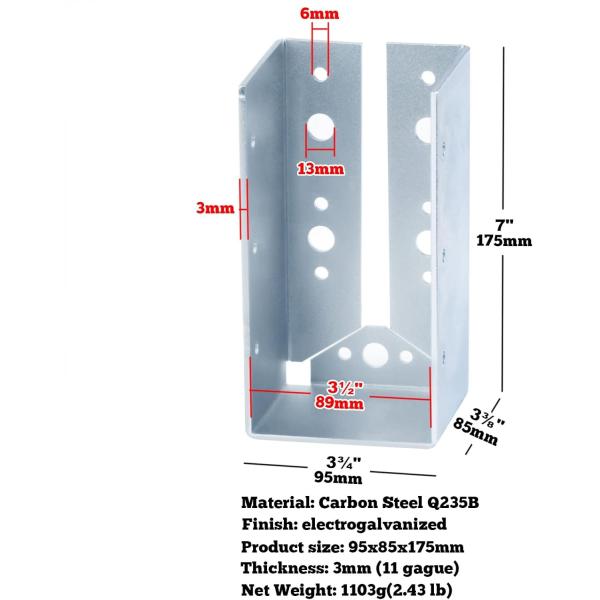

Specifications:
Material: carbon steel Q235B
Finish: electrogalvanized
Joist size: 3-1/2 " x 7 " (89x175mm) fit 4x8 Post
Thickness: 11 Gauge(3mm )
Prepunched hole size : φ6mm (14 pcs), φ13mm (5 pcs)
Applicable truss beam width/actual size: 3¼"(89mm)
Color: Silver
Product size: 3¾ x3⅜ x7 inches (95x85x175mm )
Package size: 19.5x12x11cm
Weight: 2.43 lb(1.1kg)-1 piece, 5.09 lb(2.31kg)-2 pieces
These heavy hangers connect 4x beams to girders. These concealed-flange hangers feature straight edges and provide a cleaner-looking installation for joist connections.
4x8 Concealed Flange Joist Hangers Thickness 3mm 11 Gauge Steel For 4x8 Post

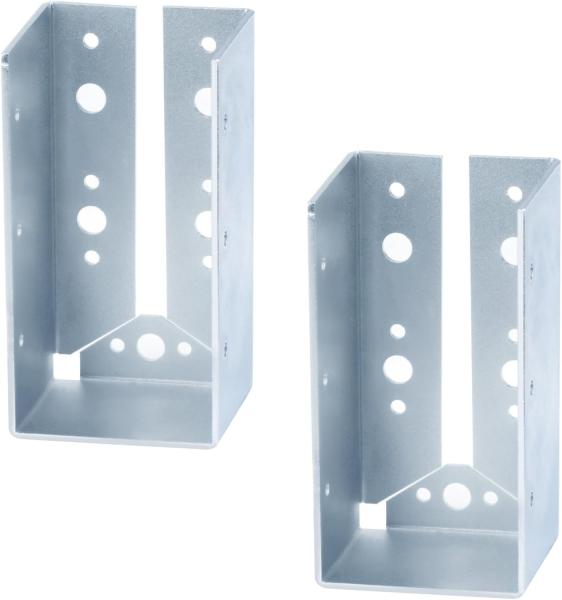

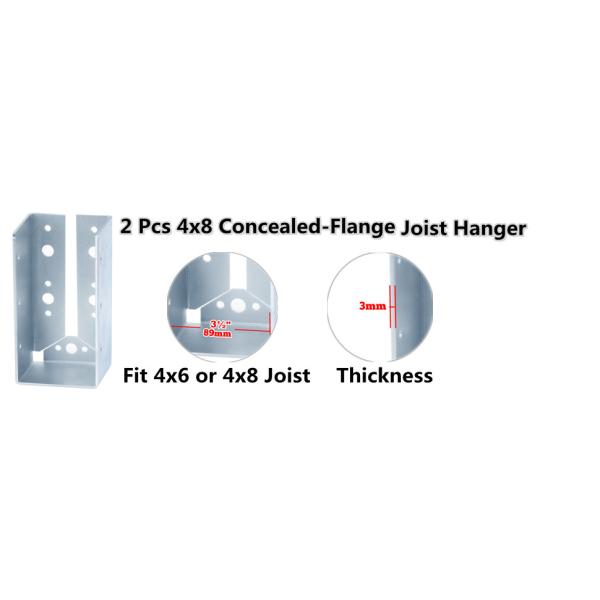

Package Contents:
Concealed-Flange Heavy Joist Hanger x 2
FAQ
1,Q: Are you trading company or manufacturer?
A: We are factory and manufacturer.
2,Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide free samples ?
A: Yes, the sample is free.
4,Q: What is your terms of payment ?
A:30% T/T in advance,70% before shipment.
5.Could you make custom size and OEM packing?
Yes, we could make custom metal products and OEM package according to your design.
6,Q:What's your main products?
A:Our main products include gang nail plates,knuckle nail plates,strip brace,joist hanger,and other timber connectors.
The products and packages could be customized according to your requirements.
7,Q:for your timber connector, what material grade will be used?
A: G300-Z275 galvanized sheet or stainless steel (Accept custom Service).
8, Q:What's the material thickness of your products?
A:0.6mm to 10mm
3,How many years has your factory been in the field of wooden building fittings?
-We have been in this field for 15 years, and we have 5 engineers, 10 technicians, and 200 employees;
