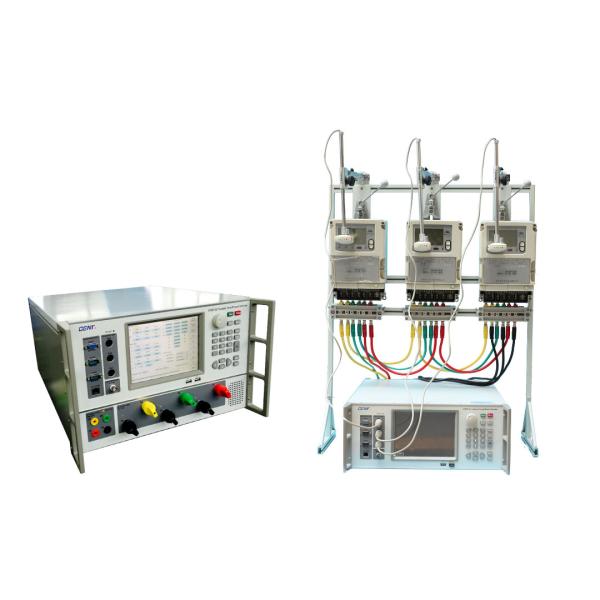

Portable Energy Meter Test Bench
Portable Energy Meter Test Bench
Specifications
Brand Name :
GENY
Model Number :
YC99T
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Price :
negotiate rates
Payment Terms :
T/T,L/C,D/P,T/T
Supply Ability :
10 pcs/ 1 months
Delivery Time :
6~8weeks
Packaging Details :
Plywood cases
Model :
YC99T
Accuracy Class :
0.05%
Max Voltage :
456V (P-N)
Max Current :
120A
Test current output :
3*（1mA-120A)
Test voltage output :
3*（0V-450V）
Description

User-Friendly High-Performance Three Phase Portable Meter Test System For Energy Meter Testing


Description


It is used in the measurement testing center of the grid companies, measurement department of power supply companies and power plants,
national measurement testing institutions and metrology inspection departments, measurement testing departments of medium-sized
enterprises, such as railway and petrochemical. Also, it can be used by the manufacturers of energy meters, includes its production,
research and development, testing departments, as well as in universities and related research institutions, specialized laboratories.


Main functions


  • It can test various single and three phase electronic and mechanical meters
  • It can automatically or manually test 1ph or 3ph meters': basic error, creeping teststarting test, standard deviation and etc, the testing plan can be fixed by customers,.
  • It can execute the influence test includes: voltage influence, frequency influenceharmonic influence, reverse phase sequence influence,unbalance voltage influencetest;
  • Support DLT-645 communication protocol, and can execute some tests formulti-functions energy meters;
  • More output terminals for more operations: RS232, RS485, extend l/0, EthernetUSB, wifi and etc.;
  • Output 2~63 harmonics
  • 8 inch touchscreen and friendly operation system,
  • It can test 3 pcs meters max.

Technical Parameters



 GENY YC99T-5C GENY YC99T-3C
General

Power supply 220V±15% or 110V±15% 220V±15% or 110V±15%
Power consumption 60VA～1600VA 50VA～1000VA
Temperature range, operation 20℃～30℃, 20℃～30℃,
Temperature range, storage -20℃～50℃ -20℃～50℃
Relative humidity (not condensing) ≤85% ≤85%
Dimensions (DxWxH) 600mm× 440mm× 264mm 600mm× 440mm× 176mm
Weight 45kg 28kg
Safety

IP class according to DIN EN 60529

Declaration of conformity

Protection class according to DIN EN 61140

Source

Voltage min. max. 0-456V(Phase to neutral) 0-792V(Phase to neutral)
Voltage range(s) 57.7V,100V,220V,380V 57.7V,100V,220V,380V,660V
Voltage max. output power 20VA per phase 20VA per phase
Voltage distortion ≤0.2%(None capacity load) ≤0.2%(None capacity load)
Voltage resolution 0.01% of range 0.01% of range
Voltage accuracy 0.05% of range 0.05% of range
Voltage stability 0.01%/2min 0.01%/2min
Voltage load dependence Capacity/Inductance/Resistance
Current min. max. 0-120A 0-60A
Current range(s) 50mA,200mA,1A,5A,20A,100A 50mA,200mA,1A,5A,16.67A,50A
Current max. voltage per range 1V at 100A 1V at 60A
Current max. output power 120VA 60VA
Current distortion ≤0.2%(None capacity load) ≤0.2%(None capacity load)
Current setting resolution 0.01% of range 0.01% of range
Current accuracy 0.05% of range 0.05% of range
Current stability 0.01%/2min 0.01%/2min
Current long term stability 0.05% of range 0.05% of range
Current load dependence Resistance Resistance
Frequency range 40Hz ～70Hz 40Hz ～70Hz
Frequency accuracy 0.002 Hz 0.002 Hz
Frequency setting accuracy 0.001Hz 0.001Hz
Phase angle setting range 0～360° 0～360°
Phase angle setting resolution 0.01° 0.01°
Phase angle accuracy 0.05° 0.05°
Phase angle stability 0.05° 0.05°



Portable Energy Meter Test Bench

Portable Energy Meter Test Bench

Portable Energy Meter Test Bench

*If you want to know more please check our official website:http://www.genymetertestequipment.com/
