GENY Smart Meter Testing YC1893D-24 Portable Energy Meter Test Equipment
GENY Smart Meter Testing YC1893D-24 Portable Energy Meter Test Equipment
Specifications
Certification :
ISO, CE
MOQ :
1 Piece
Supply Ability :
100/Year
Payment Terms :
L/C, T/T, D/P
Brand Name :
GENY
Model Number :
YC1893D
Place of Origin :
CHINA
Model NO. :
YC1893D-24
Display :
Digital
Installation :
Direct Connected
Usage :
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment :
Three-phase Three-wire
Theory :
Electronic Meter
Power Meter Connection :
Terminal
Measured Signal :
Pulse Peak
Type :
Energy Meter
Customized :
Customized
Trademark :
GENY
Transport Package :
Plywood Case
Specification :
12.4CBM
Origin :
China
HS Code :
9030849000
Port :
Guangzhou, China
Description

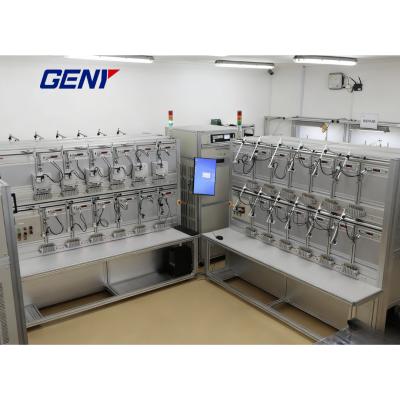

Smart Meter YC1893D Digital Three-Phase Electronic Energy Meter Test System with ICTs

Features& Functions

Undergoing Examination: 3P4W and 3P3W Meters

Modes of Examination: Assessments are conducted for active power, reactive power, and cross-connected reactive power.

Optional Enhancements:

  • ICT (Information and Communication Technology) units are deployed at each meter location to facilitate the examination of three-phase meters with integrated current and voltage measurement circuits, known as I-P Links.
  • An optional feature includes the capability to perform neutral current tests.
  • Each meter position is equipped with RS232 and Ethernet ports to enable the automated calibration of electronic meters.

Operational Flexibility: The meter testing system is versatile, capable of measuring a range of meters including mechanical, electromechanical, and electronic types, through fully automated, semi-automated, or manual processes.

Construction and Durability: The system is crafted from aluminum alloy, offering a lightweight yet robust framework with inherent resistance to corrosion.

Efficiency and Synchronization:

  • The mechanical meters feature an automatic rotor mark positioning for enhanced operational efficiency.
  • The synchronized operation of scanning heads leads to a simplified control mechanism.
  • The system supports the initiation of tests and the monitoring of creeping phenomena.
  • It can simultaneously measure various constants associated with meters.

Safety and Functionality:

  • The system is safeguarded with features to protect against overloads, short voltage circuits, and open current circuits.
  • The user-friendly testing software is compatible with Windows 10 and XP operating systems and is equipped with modules to perform a variety of tests including error analysis, harmonic assessment, demand measurement, and influence evaluation.
  • Data collected from tests can be exported in multiple formats for use in other programs.

Compliance and Certification:

  • The system has received accreditation and is certified to meet EU health and safety standards, bearing the CE mark of conformity.

Product Parameters

Application Conditions and Requirements
Environment Power Requirement Safety
Operation Humidity Altitude Voltage Supply IP Class Conformity
Temperature
-10ºC--+40ºC 0.5 <2500m 3x220/380V±10%(or customized) IP30 CE conform
50/60Hz±2Hz

Type YC1893D-6 YC1893D-12 YC1893D-24 YC1893D-48
Number of meter positions 6 12 24 48
Accuracy 0.05
Power Source YCS-103-250 YCS-103-600 YCS-103-1200 YCS-103-2500
Reference Standard Meter SZ-03A-K8
Scanning Head YCG-2-series
Voltage
Test voltage output(Phase-Neutral) 3x(24V-300V)(or customized)
Power of the voltage output Max.3x100VA Max.3x250VA Max.3x500VA Max.3x1000VA
Resolution Better than 0.01%of full scale value of range
Setting accuracy Better than 0.05%at the final range value
Stability Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load Better than 0.01%
Distortion factor Better than 0.3% for linear resistance load
Harmonics 2nd-41st free programmable
Current
Test current output 3x(1mA-120A/200A)
Power of the current output Max.3x250VA Max.3x500VA Max.3x1000VA Max.3x2000VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load Better than 0.01%
Distortion factor Better than 0.3% for linear resistance load
Harmonics 2nd-41st free programmable
Phase angle
Range 0-360°
Resolution 0.01°
Setting accuracy 0.1°
Frequency
Range 45Hz-65Hz
Resolution 0.01Hz
Error display
Type of error display Red LED
Resolution of the error displays 8 digits

Company Profile

Guangzhou Yangcheng Science & Technology Enterprises Co., Ltd. was established in 1987. We are a multi-industry enterprise group with several hundred million RMB of annual sales in the industries of electrical measuring equipment, industrial and domestic automation engineering, biology engineering, and business trade. We have 464 employees today, among which 156 staffs engaged in the manufacture and business of electrical measuring equipment.

In 2002, the electric measurement department of the company separated and set up a wholly-owned subsidiary Guangzhou GENY Electric Co., Ltd. It is a Hi-Tech company specialized in electricity measuring equipment.

Nowadays, we are one of the biggest and leading manufacturers of electrical measuring equipment in China. We have sold more than 7000(Seven Thousand) sets of energy meter test benches and more than 10000(Ten Thousand) sets of portable calibrators in the China market so far.

Our main products of electrical measuring equipment

  • Single/Three Phase Electric Energy Meter Test Bench
  • Single/Three Phase Portable Standard Meter
  • Single/Three Phase standard meter
  • Single/Three Phase Power Source
  • Single/Three Phase Portable Power Source etc.
